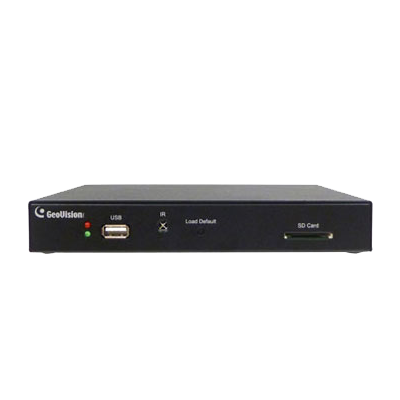

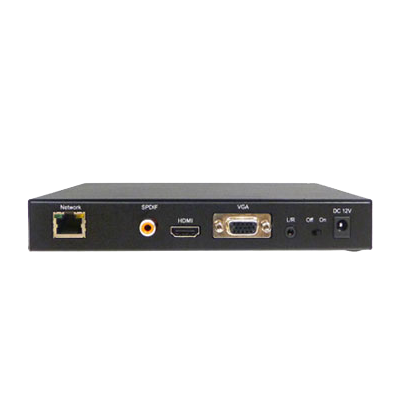

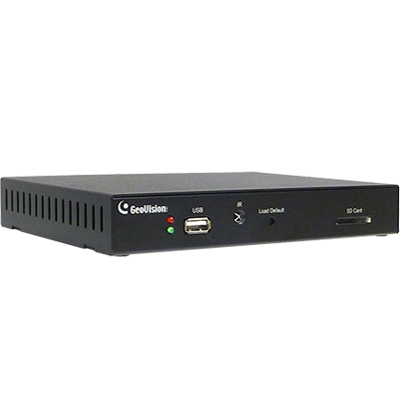

GV-3D People Counter
The GV-3D People Counter integrates Asus Xtion Pro to count and analyze the number of people passing by the designated detection area. You can connect the GV-3D People Counter with a VGA or HDMI monitor for direct display of counting data and configuring device settings through on-screen display (OSD) menu. GV-3D People Counter comes with a built-in Web interface, the GV-Web Report Lite, for easy setup and looking up people counting data.
- Counts the number of people (In and Out)
- Support for HDMI and VGA compatible monitors
- IR remote control to configure on-screen display (OSD) menu
- GV-Web Report Lite: Web interface to look up people counting data and charts
- Support for data compiling and chart analysis on GV-Web Report
- Audio alarm for traffic in wrong direction and exceeding maximum entries, exits or stays
- Content Designer to customize layout on display monitor
- SDHC card supported
- GPS positioning (optional GV-GPS Reciever and GV-Web Report software required)
Note:
- No SD/SDHC card slot & local storage function for Argentina.
- Specifications are subject to change without notice.
Note:
- No SD/SDHC card slot & local storage function for Argentina.
- Specifications are subject to change without notice.
| Model No | Name | Details | |
|---|---|---|---|
| Asus Xtion Pro |
|
The Asus Xtion Pro is a motion sensor used to detect the number of people who have walked through the detection area. The operating temperature is from 0°C ~ 40°C / 40°F ~ 104°F. | |
| Asus Xtion Pro In-Ceiling Mount | Options for Asus Xtion Pro |
|
The In-Ceiling Mount is used to mount Asus Xtion Pro on the ceiling. • Cover for in-ceiling mount x 1 • Magnet x 2 • Support bracket x 2 • Black long screw x 2 • Screw nut x 2 |
| Asus Xtion Pro Wall Mount | Options for Asus Xtion Pro |
|
The Wall Mount is used for mounting Asus Xtion Pro on the ceiling or on a door frame. The length and angle of the mount can be adjusted to suit the installation site. The length is adjustable from 188 ~ 290 mm (7.40 ~ 11.42 in). • Adjustable bracket x 1 • Black long screw x 2 • Screw nut x 2 |
| Wall Mount Kit |
|

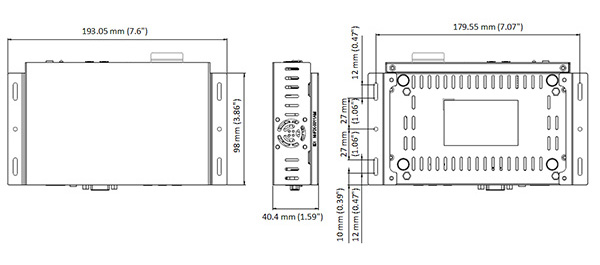

The Wall Mount Kit is used to mount the GV-3D People Counter to the wall. • L-type brackets x 2 • Small screws x 4 |
|
| VESA monitor mount kit |
|
The VESA Monitor Mount Kit is used to mount the GV-3D People Counter to the back of a VESA monitor. • VESA monitor mount bracket x 1 • L-type brackets x 2 • Large screws x 4 • Small screws x 8 |
|
| USB Extension Cable |
|
The 1.8 meters (5.9 feet) USB extension cable can extend the distance between the Asus Xtion Pro / Asus Xtion Pro Live and the GV-3D People Counter. * You can connect multiple USB extension cables, but the total distance cannot exceed 5 meters (16.4 feet). |
|
| GV-GPS Receiver |
|
Receive the GPS signals for 3D People Counter positioning. | |
| GV-Web Report | Through a Web browser, the GV-Web Report keeps track of and analyzes the people counting results and shows the latitude and longitude from up to 1000 units of GV-3D People Counters. Compatible version: For GPS funtion, V2.2.6.0 or later. For the others, V2.2.3.0 or later. | ||
- GV-3D People Counter
- IR remote control x 1
- AC/DC adaptor(12V, 3A, 36W) x 1
- Software CD x 1
- Power cord x 1
- SD Card x 1
Note:
- No SD/SDHC card slot & local storage function for Argentina.
- Specifications are subject to change without notice.
Note:
- No SD/SDHC card slot & local storage function for Argentina.
- Specifications are subject to change without notice.
- GV-3D People Counter
- IR remote control x 1
- AC/DC adaptor(12V, 3A, 36W) x 1
- Software CD x 1
- Power cord x 1
- SD Card x 1
