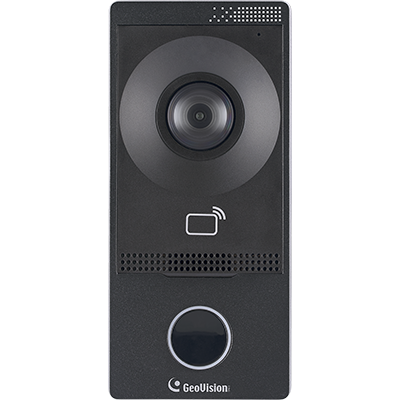

GV-IA1330

H.265 2MP WDR IP Video Intercom

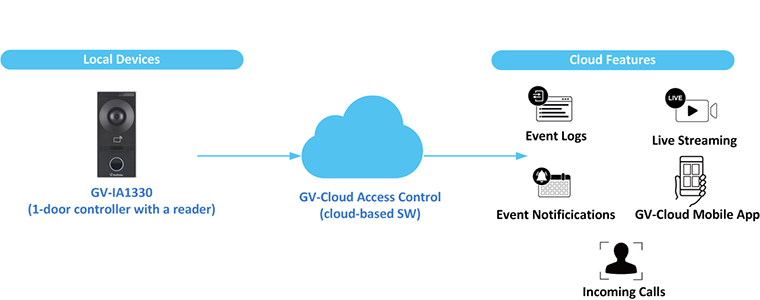

The GV-IA1330 intercom controller features a built-in 2 MP camera and a 13.56 MHz reader. Designed for integration with the GV-Cloud Access Control platform, it enables cloud-based access management for up to 100,000 cards. The camera captures snapshots and streams live video of entry or exit to GV-Cloud Access Control during access events.

When the GV-IA1330 touchpad is pressed, the platform displays an incoming call screen, allowing the operator to view live video, communicate with the visitor, and perform door control operations.
  • One door IP controller (entry and exit)
  • Built-in 13.56 MHz, ISO 14443A reader
  • 4 inputs (Door Sensor, Door Button, Fire Sensor, Tamper Sensor)
  • 2 outputs (Door Lock, Alarm)
  • 2 GeoVision's RS-485 or OSDP compliant readers supported
  • 1/2.9" progressive scan CMOS
  • Minimum illumination at 0.02 lux
  • Dual streams from H.265, H.264, and MJPEG
  • Up to 30 fps at 1920 x 1080
  • Intelligent IR
  • Ingress protection (IP65)
  • DC 12V / PoE (IEEE 802.3af)
  • Built-in micro SD card slot (SD / SDHC / SDXC / UHS-I, Class 10) for local storage
  • Day and night function (with removable IR-cut filter)
  • Built-in IR with effective distance up to 3 m (10 ft)
  • Built-in microphone and speaker
  • Wide Dynamic Range (WDR)
  • 2D / 3D noise reduction
  • Text overlay
  • Privacy mask
Note:
  1. Only GeoVision readers are supported by RS-485 and network communications, while OSDP is compatible with third-party readers.
  2. Video playback only works on GV-Cloud VMS (not GV-Cloud Access Control) when connecting GV-IA1330 with GV-Cloud Bridge series.
  3. All specifications are subject to change without notice.

Note:
  1. Only GeoVision readers are supported by RS-485 and network communications, while OSDP is compatible with third-party readers.
  2. Video playback only works on GV-Cloud VMS (not GV-Cloud Access Control) when connecting GV-IA1330 with GV-Cloud Bridge series.
  3. All specifications are subject to change without notice.
Model No Name Details
Push Button Switch The push button switch can be integrated with access control system, allowing door exit by momentarily activating or deactivating the electric locking device. Both American standard and European standard push buttons are available.
GV-IB25 / 65 / 85 Infrared Button The GV-IB25 / 65 / 85 Infrared Button detects infrared movement within 3 to 12 cm and allows you to open the door with a wave of hand.
Electric Lock Three types of electric locks are available: electromagnetic lock, electric bolt and electric strike.
Access Card / Fob / Sticker / Tag GeoVision offers a wide range of access cards, fobs, stickers, and tags to meet your needs. Please refer to the product datasheet for information on compatible frequencies and accessories.
Power Adapter Contact our sales representatives for the countries and areas supported.
  • GV-IA1330
  • Function Cable
  • SScrew Kit
  • Screw Driver
  • MicroSD Card (32 GB, formatted and inserted)
  • Drill Template Paster
  • Wall Mount Bracket
  • Embedded Bracket
  • Download Guide
