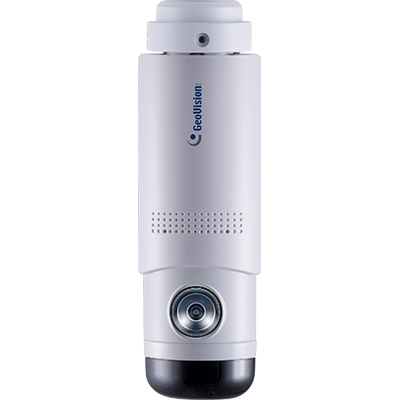

GV-VR360
8MP H.265 Low Lux WDR IR Virtual Reality IP Camera
GV-VR360 is a Virtual Reality IP camera made true with two 4 MP fisheye panoramic cameras. The camera provides a live view of the surveillance area with an all-inclusive 720° angle range of view and extended depth of field, enabling a total coverage of wide open areas. When streamed online or viewed through the GV-Eye or YouTube mobile app, users can watch the 720°, VR video from the camera for an immersive experience. Equipped with IR-cut filter and IR LEDs, GV-VR360 is capable of day and night surveillance under contrasting illumination conditions. Utilizing H.265 video codec, the camera allows better compression ratio while maintaining high image quality at reduced network bandwidths. The camera adheres to IK10 and IP67 standards.
Models
| Model | GV-VR360 |
| Iris | Fixed |
| Focal Length (mm) | 1.05mm |
| Horizontal FOV | 360° |
| Maximum Aperture | F/2.25 |
| Image Format | 1/2.9" |
- Dual 4MP fisheye provides 720° panoramic view with no blind spots
- 1/2.9" progressive scan low lux CMOS
- Dual streams from H.265 or H.264
- Up to 30 fps at 3840 x 2160
- Day and Night function (with removable IR-cut filter)
- Intelligent IR
- 4 IR LEDs
- IR distance up to 10 m (32 ft)
- One-way audio
- Built-in / external microphone
- One sensor input and one alarm output
- DC 12V / PoE (PoE+, IEEE 802.3at)
- Vandal resistance (IK10 for metal casing)
- Ingress protection (IP67)
- VR Mode for YouTube & GV-Eye
- Smart device APP support
- Live streaming via YouTube
- Defog
- 3 languages on Web interface
- ONVIF (Profile S) conformant
Note:
- Do not use clothes or any ordinary material to clean the camera cover since they may result in scratches.
- H.265 video codec is not supported for YouTube streaming.
- Audio for YouTube streaming requires AAC audio codec (optional).
- Stream 2 is disabled by default. Change the FPS of stream 1 to 25 or lower to enable stream 2.
- Specifications are subject to change without notice.
- Power adapters can be purchased upon request.
Note:
- Do not use clothes or any ordinary material to clean the camera cover since they may result in scratches.
- H.265 video codec is not supported for YouTube streaming.
- Audio for YouTube streaming requires AAC audio codec (optional).
- Stream 2 is disabled by default. Change the FPS of stream 1 to 25 or lower to enable stream 2.
- Specifications are subject to change without notice.
- Power adapters can be purchased upon request.
| Model No | Name | Details | |
|---|---|---|---|
| GV-POE Switch | The GV-POE Switch is designed to provide power along with network connection for IP devices. The GV-POE Switch is available in various models with different numbers and types of ports. |
||
| GV-Relay V2 |
|
The GV-Relay V2 is designed to expand the voltage load of GV IP devices. It provides 4 relay outputs, and each can be set as normally open (NO) or normally closed (NC) independently as per your requirement. | |
| Power Adapter | Contact our sales representatives for the countries and areas supported. | ||
- IR Virtual Reality IP Camera
- Mount Kit
- Silica Gel Bag
- Hex Key
- Torx Wrench
- Screw x 3
- Screw Anchor x 3
- Download Guide
- Warranty Card
Note:
- Do not use clothes or any ordinary material to clean the camera cover since they may result in scratches.
- H.265 video codec is not supported for YouTube streaming.
- Audio for YouTube streaming requires AAC audio codec (optional).
- Stream 2 is disabled by default. Change the FPS of stream 1 to 25 or lower to enable stream 2.
- Specifications are subject to change without notice.
- Power adapters can be purchased upon request.
GV-VR360 Live Demo
GV-VR360 2018 Taiwan Lantern Festival in Chiayi (Replay with Audio)
GV-VR360 2018 Taiwan Lantern Festival's Main Lantern (Replay with Audio)
GV-VR360 Factory
GV-VR360 Animal Shelter
GV-VR360 Farming
GV-VR360 Retail
Note:
- Do not use clothes or any ordinary material to clean the camera cover since they may result in scratches.
- H.265 video codec is not supported for YouTube streaming.
- Audio for YouTube streaming requires AAC audio codec (optional).
- Stream 2 is disabled by default. Change the FPS of stream 1 to 25 or lower to enable stream 2.
- Specifications are subject to change without notice.
- Power adapters can be purchased upon request.
- IR Virtual Reality IP Camera
- Mount Kit
- Silica Gel Bag
- Hex Key
- Torx Wrench
- Screw x 3
- Screw Anchor x 3
- Download Guide
- Warranty Card
Note:
- Do not use clothes or any ordinary material to clean the camera cover since they may result in scratches.
- H.265 video codec is not supported for YouTube streaming.
- Audio for YouTube streaming requires AAC audio codec (optional).
- Stream 2 is disabled by default. Change the FPS of stream 1 to 25 or lower to enable stream 2.
- Specifications are subject to change without notice.
- Power adapters can be purchased upon request.
