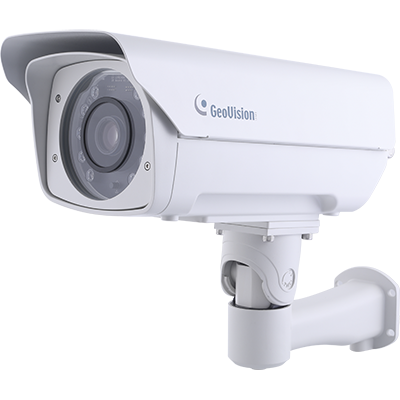

GV-LPR2800-DL

Starlight 2 MP H.265 Super Low Lux WDR Pro LPR Box IP Camera

Deep-Learning LPR Camera

GV-LPR2800-DL is capable of recognizing license plate numbers with its built-in deep learning LPR processor. GV-LPR2800-DL can compare captured license plates either with its on-the-edge standalone database, or the database stored at the GV-ASManager access control system. When there is a match, GV-LPR2800-DL can grant access for the vehicle by opening a gate or barrier.

GV-LPR2800-DL is a 2 MP color network camera designed to recognize non-reflective and reflective license plates on vehicles traveling at up to 100 km/h (62 mph). Thanks to its multiple high-power LEDs and intelligent IR, the camera can automatically adjust its shutter speed to the scene and capture clear license plate images in low-light settings. It adheres to IP68 and IK10 standards and can withstand temperatures ranging from -40°C (-40°F) to 50°C (122°F).

Models

ModelGV-LPR2800-DL
IrisDC-Iris
Focal Length (mm)5~50mm
Horizontal FOV50.9°~7.6°
Maximum ApertureF/1.6
Image Format1/2.7''
  • Built-in deep learning LPR processor for license plate recognition
  • Double-lane recognition
  • Min. illumination at 0.04 lux
  • Triple streams from H.265, H.264 and MJPEG
  • Up to 60 fps at 1920 × 1080
  • Intelligent IR
  • IR distance up to 30 m (100 ft)
  • Day and Night function (with removable IR-cut filter)
  • Wide Dynamic Range Pro (WDR Pro)
  • DC 12 V / PoE (IEEE 802.3bt)
  • Ingress protection (IP68)
  • Vandal resistance (IK10 for metal casing)
  • Standalone database
  • Built-in micro SD card slot (SD/SDHC/SDXC/UHS-I, Class 10) for local storage
  • Digital I/O (2 in / 2 out)
  • Built-in heater and fan
  • Recognize vehicles with speeds up to 100 km/h (62 mph)
  • Two-way audio capable
  • Recognized plate numbers export
  • Defog
  • Motion detection
  • Text Overlay
  • IP address filtering
  • Support for iPhone, iPad, Android & 3GPP
  • 31 languages on Web interface
  • CE, FCC, LVD, RoHS compliant

Note:
  • Specifications are subject to change without notice.


Note:
  • Specifications are subject to change without notice.
Model No Name Details
GV-Mount300-1 Convex Corner Adapter Kit Dimensions: 238.6 x 395.2 x 210 mm (9.4 x 15.5 x 8.2")
Weight: 4.27 kg (9.41 lb)
GV-Mount310-1 Concave Corner Adapter Kit Dimensions: 111.2 x 369.9 x 210 mm  (4.37 x 14.5 x 8.2")
Weight: 2.96 kg (6.53 lb)
GV-Mount400-1 Pole Mount Bracket Kit (Ø 4 ~ 6") Bracket: 68.4 x 240 x 163 mm (2.69 x 9.44 x 6.41")
Weight: 1.70 kg (3.75 lb)
Steel Strap Diameter: Ø 4 ~ 6"
GV-Mount410-1 Pole Mount Bracket Kit (Ø 6 ~ 7.5") Bracket: 68.4 x 240 x 163 mm (2.69 x 9.44 x 6.41")
Weight: 1.70 kg (3.75 lb)
Steel Strap Diameter: Ø 6 ~ 7.5"
GV-PA903BT Gigabit PoE Adapter Dimensions: 170 x 100 x 40 mm (6.69" x 3.94" x 1.57)
Weight: 760 g (1.68 lb)
GV-Relay V2 GV-Relay V2 expands GV-IP device voltage load. It has 4 relay outputs that can be set to normally open (NO) or normally closed (NC).
Power Adapter Contact our sales representatives for the countries and areas supported.
  • GV-LPR2800-DL Camera
  • Sun Shield Cover
  • Sun Shield Cover Short Screw x 2
  • Screw Anchor x 4
  • 1/4"-10 Screw (32 mm) x 4
  • M4 Screw (5 mm) x 2
  • Washer x 4
  • Hex Wrench
  • Silica Gel Bag
  • Adhesive Tape for Silica Gel Bag
  • micro SD card (already inserted and formatted)
  • Installation Guide
  • Download Guide
  • Warranty Card

Note:
  • Specifications are subject to change without notice.

ANPR Using Deep Learning / Manage gated parking


Note:
  • Specifications are subject to change without notice.
  • GV-LPR2800-DL Camera
  • Sun Shield Cover
  • Sun Shield Cover Short Screw x 2
  • Screw Anchor x 4
  • 1/4"-10 Screw (32 mm) x 4
  • M4 Screw (5 mm) x 2
  • Washer x 4
  • Hex Wrench
  • Silica Gel Bag
  • Adhesive Tape for Silica Gel Bag
  • micro SD card (already inserted and formatted)
  • Installation Guide
  • Download Guide
  • Warranty Card

Note:
  • Specifications are subject to change without notice.
