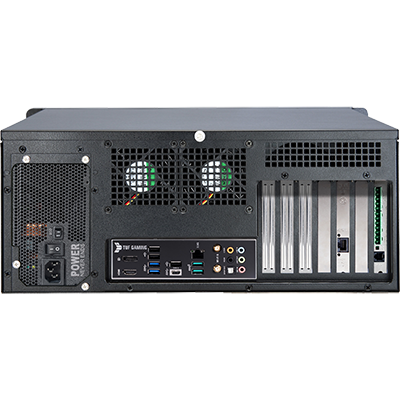

GV-Hot Swap System V5 RevF-4U,20-Bay

GV-Hot Swap System V5 (Rev. F) features a powerful data storage capacity. It comes with hot-swappable SATA mobile racks in sizes of of 4U (20-bay), 3U (16 / 8-bay) and 2U (4-bay). Depending on HDD capacity, GV-Hot Swap System V5 (Rev. F) can store up to 200 terabytes of recorded data.

GeoVision Surveillance Software empowers GV-Hot Swap System V5 (Rev. F) with a maximum of 64 audio and video channels for GV-VMS, and 32 audio and video channels for GV-NVR. When installed with GV-Recording Server, GV-Hot Swap System V5 (Rev. F) can record up to 256 channels and distribute up to 600 channels to a variety of GeoVision software.

Software Supported: GV-VMS / GV-NVR / GV-Recording Server
  • Powered by Intel Core i7 Processor
  • 64-bit Windows 10 IoT Enterprise
  • H.265 CPU and GPU decoding
  • 64-channel pure IP surveillance
  • Dual-monitor display
  • Maximum storage capacity up to 200 TB (4U 20-Bay) / 160 TB (3U 16-Bay) / 80 TB (3U 8-Bay) / 40 TB (2U 4-Bay)
  • Hot-swap status LED panel
  • Dual Gigabit LAN ports: 2.5 Gigabit, 1 Gigabit
  • 4U (20-bay), 3U (16 / 8-bay), or 2U (4-bay) hot-swap SATA HDDs for data storage
  • Built-in 4 inputs and 4 outputs
  • Extreme performance for GV-VMS software operation
  • RAID type: 0, 1, 3, 5, 6, 10, 00, 30, 50, 60, 100 Single Disk or JBOD (optional)
  • Redundant power supply (optional)
  • Compatible with full selections of GeoVision accessories
  • Anti-vibration feature to provide the disk throughput of 95% or higher
  • CE, FCC, LVD compliant
Note:
  • Specifications are subject to change without notice.
  • The disk throughput test was conducted by a 3rd-party HDD manufacturer. The level of vibration produced by the system's hard drive operation and fan energy is minimized to have an effect of less than 5% on the disk throughput when using 8 TB hard drives.

Note:
  • Specifications are subject to change without notice.
  • The disk throughput test was conducted by a 3rd-party HDD manufacturer. The level of vibration produced by the system's hard drive operation and fan energy is minimized to have an effect of less than 5% on the disk throughput when using 8 TB hard drives.
Model No Name Details
GV-IO 12-In Card (for GV-VMS/NVR) With 12-point digital inputs, this card can expand the GV-Hot Swap DVR/NVR V5 up to 16 sensor inputs.
GV-IO 12-Out Card (for GV-VMS/NVR) With 12-point relay outputs, this card can expand the GV-Hot Swap DVR/NVR V5 up to 16 alarm outputs.
GV-Data Capture (for GV-VMS/NVR) GV‐Data Capture allows the integration of POS systems and the GeoVision surveillance system through cable or network connection.
GV-COM V3 (for GV-VMS/NVR) GV-COM V3 adds 1 RS-485 port to your computer through a USB connector.
GV-IO Box Series (for GV-VMS/NVR) GV-IO Box series provides 4 / 8 / 16 inputs and relay outputs and support both DC and AC output voltages, with optional support for Ethernet module and 4E additionally supporting PoE connection.
GV-Joystick V2 (for GV-VMS/NVR) GV-Joystick V2 facilitates PTZ camera control. It can be either plugged into the GeoVision surveillance system for independent use or connected to GV-Keyboard to empower the operation.
GV-Keyboard V3 (for GV-VMS/NVR) GV-Keyboard V3 is used to program and operate the GeoVision surveillance system. You can also connect PTZ cameras directly to the keyboard for PTZ control.
GV-IR Remote Control (for GV-VMS/NVR) GV-IR Remote Control provides easy control of the GeoVision surveillance system.
Gigabit Network Card (for GV-VMS/NVR) Gigabit Network Card is provided with the two options of 1-Gb single port card and 2-port 10-Gb (20 Gb) card. The supported number of network cards varies based on models and the combination of RAID card. Contact our sales representatives for more information.
RAID Card (for GV-VMS/NVR) The supported RAID types include 0,1,3,5,6,10,00,30,50,60,100 Single Disk or JBOD.
Redundant Power Supply (for GV-VMS/NVR) The Redundant Power Supply comes with 2 hot-swap modules for 3U models and for 4U models. When 1 module is down, the other module can still supply full power to the system.
- 3U 8 Bays models: 460W 1+1 mode; 100~240V, 47~63HZ
- 3U 16 Bays models: 550W 1+1 mode; 100~240V, 47~63HZ
- 4U 20 Bays models: 800W 1+1 modes; 90~264V, 47~63HZ
Redundant Power Supply (for GV-Recording Server) The Redundant Power Supply comes with 2 hot-swap modules for 3U models and for 4U models. When 1 module is down, the other module can still supply full power to the system.
- 3U 8 Bays models: 460W 1+1 mode; 100~240V, 47~63HZ
- 3U 16 Bays models: 550W 1+1 mode; 100~240V, 47~63HZ
- 4U 20 Bays models: 800W 1+1 modes; 90~264V, 47~63HZ
RAID Card (for GV-Recording Server) The supported RAID types include 0,1,3,5,6,10,00,30,50,60,100 Single Disk or JBOD.
  • GV-Hot Swap System V5 x 1
  • AC Power Cord x 1
  • Self-Stick Rubber Pad x 4
  • Documents Download Guide
  • Warranty Card​
Note:
  • Specifications are subject to change without notice.
  • The disk throughput test was conducted by a 3rd-party HDD manufacturer. The level of vibration produced by the system's hard drive operation and fan energy is minimized to have an effect of less than 5% on the disk throughput when using 8 TB hard drives.
