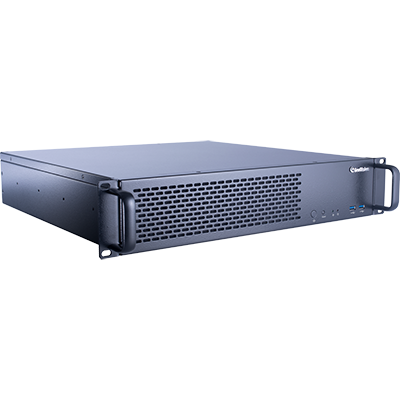

GV-Control Center System RevB
GV-Control Center System (Rev. B), equipped with Intel Core i7 Processor, is designed to enhance the monitoring performance for GV-Control Center in video surveillance. GV-Control Center System (Rev. B) enables the central operators to manage multiple GeoVision surveillance and video management systems, while maintaining quality display and smooth operation. GV-Control Center System (Rev. B) comes with 8 graphics outputs (HDMI, DVI-D and DisplayPort) to support up to 8 monitors simultaneously. Up to two 3.5" HDD can be installed in the system to meet the storage demand.
- Powered by Intel Core i7 Processor and NVIDIA GeForce Graphic Cards
- 64-bit Windows 10 IoT Enterprise
- Support for GPU Decoding

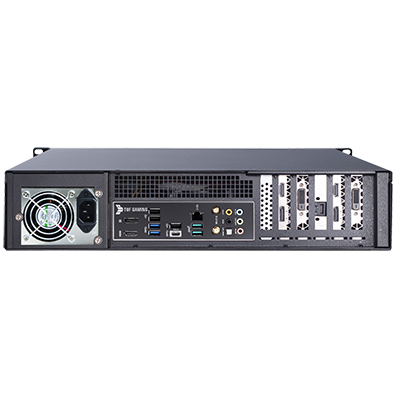

- 8 graphics outputs (HDMI, DVI-D and DisplayPort) to support up to 8 monitors simultaneously
- Dual Gigabit LAN ports: 2.5 Gigabit, 1 Gigabit
- 2U size (428 x 90 x 430 mm / 16.86 x 3.55 x 16.93 in)
Note:
- Specifications are subject to change without notice.
Note:
- Specifications are subject to change without notice.
| Model No | Name | Details | |
|---|---|---|---|
| GV-IO Box Series | GV-IO Box series provides 4 / 8 / 16 inputs and relay outputs, and supports both DC and AC output voltages, with optional support for Ethernet module and 4E additionally supporting PoE connection. | ||
| GV-Joystick V2 |
|
GV-Joystick V2 facilitates the PTZ camera control. It can be either plugged into the GV-Hot Swap DVR/NVR V5 for independent use or connected to GV-Keyboard to empower the operation. | |
| GV-Keyboard V3 | GV-Keyboard V3 is used to program and operate the GeoVision surveillance system. You can also connect PTZ cameras directly to the keyboard for PTZ control. | ||
- GV-Control Center System
- Power Cord (by regions)
- Screw Kit
- Download Guide
- Warranty Card
Note:
- Specifications are subject to change without notice.
Note:
- Specifications are subject to change without notice.
- GV-Control Center System
- Power Cord (by regions)
- Screw Kit
- Download Guide
- Warranty Card
Note:
- Specifications are subject to change without notice.
