GV-BX12201
12MP H.264 Low Lux WDR D/N Box IP Camera
The GV-BX12201 is a dual-stream, day/night indoor IP camera containing a varifocal lens. The camera is equipped with a progressive scan CMOS image sensor. The camera features a 12 MP resolution, and the increased pixel density allows the camera to capture scenes of greater details.
Models
| Model | GV-BX12201 |
| Iris | DC Drive |
| Focal Length (mm) | 4.1~9mm |
| Horizontal FOV | 109°~50° |
| Maximum Aperture | F/1.6 |
| Image Format | 1/1.8" |
- 1/1.7" progressive scan CMOS
- Dual streams from H.264 and MJPEG
- Up to 15 fps at 4000 × 3000, 30 fps at 3840 × 2160
- Built-in / external microphone
- Two-way audio capable
- One sensor input and one alarm output
- TV-out support
- Mini USB slot for WiFi Adapter
- Wide Dynamic Range (WDR)
- Low lux enhancement
- 3D noise reduction
- Smart streaming
- Defog
- Motion detection
- Tampering alarm
- Privacy mask
- IP address filtering
- DC 12V / AC 24V / PoE (IEEE 802.3af)
- Built-in micro SD card slot (SD/SDHC/SDXC/UHS-I) for local storage
- Day and Night function (with removable IR-cut filter)
- Megapixel varifocal lens
- Support for iPhone, iPad, Android & 3GPP
- 31 languages on Web interface
- ONVIF (Profile S) conformant
- Recording assigned by GV-Edge Recording Manager (Windows version)
Note:
- Smart streaming requires either GV‐DVR / NVR V8.7.0.0 or GV‐VMS V16.10.0.0.
- The power adapter can be excluded upon request.
- The signal range and data throughput may vary depending on the network conditions and environmental factors.
- With the standard installation, the supporting rack is not included in the packing list.
- GV-Housing103 only works with GV-Mount300-1, GV-Mount310-1, GV-Mount400-1 and GV-Mount410-1.
- Specifications are subject to change without notice.
Note:
- Smart streaming requires either GV‐DVR / NVR V8.7.0.0 or GV‐VMS V16.10.0.0.
- The power adapter can be excluded upon request.
- The signal range and data throughput may vary depending on the network conditions and environmental factors.
- With the standard installation, the supporting rack is not included in the packing list.
- GV-Housing103 only works with GV-Mount300-1, GV-Mount310-1, GV-Mount400-1 and GV-Mount410-1.
- Specifications are subject to change without notice.
| Model No | Name | Details | |
|---|---|---|---|
| GV-Mount300-1 | Convex Corner Adapter Kit |
|
Dimensions: 238.6 x 395.2 x 210 mm (9.4 x 15.5 x 8.2") Weight: 4.27 kg (9.41 lb) |
| GV-Mount310-1 | Concave Corner Adapter Kit |
|
Dimensions: 111.2 x 369.9 x 210 mm (4.37 x 14.5 x 8.2") Weight: 2.96 kg (6.53 lb) |

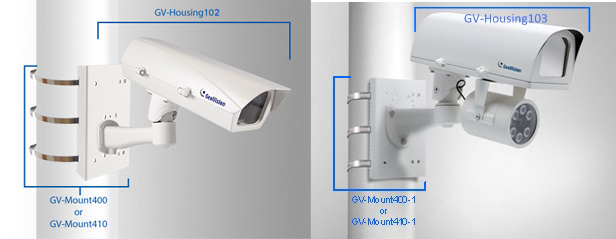

| GV-Mount400-1 | Pole Mount Bracket Kit (Ø 4 ~ 6") |
|
Bracket: 68.4 x 240 x 163 mm (2.69 x 9.44 x 6.41") Weight: 1.70 kg (3.75 lb) Steel Strap Diameter: Ø 4 ~ 6" |
| GV-Mount410-1 | Pole Mount Bracket Kit (Ø 6 ~ 7.5") |
|
Bracket: 68.4 x 240 x 163 mm (2.69 x 9.44 x 6.41") Weight: 1.70 kg (3.75 lb) Steel Strap Diameter: Ø 6 ~ 7.5" |
| GV-Housing103 (not supported by GV-BX4700-8F) | Housing Box (with IR) |
|
Dimensions: 404 x 128 x 257 mm (15.91 x 5.04 x 10.12") Weight: 7 kg (15.43 lb) Start-up Temperature: ‐20°C ~ 50°C (‐4°F ~ 122°F) Operation Temperature: ‐30°C ~ 50°C (‐22°F ~ 122°F) IR: 6 IR LEDs with up to 60m (196.85ft) IR effective distance Power: 12V DC, 1A input GV-Housing103 only works with GV-Mount300-1, GV-Mount310-1, GV-Mount400-1 and GV-Mount410-1. |
| Supporting Rack |
|
Dimensions: Ø 58 x 120 mm (2.28" x 4.72") Weight: 0.1 kg (103 g) |
|
| GV-PA191 | PoE Adapter |
|
GV-PA191 is a Power over Ethernet (PoE) adapter designed to provide power to the IP device through a single Ethernet cable. |
| GV-PA301 | Gigabit PoE Adapter |
|
GV-PA301 is a Gigabit Power over Ethernet (PoE) adapter. |
| GV-Relay V2 |
|
GV-Relay V2 expands GV-IP device voltage load. It has 4 relay outputs that can be set to normally open (NO) or normally closed (NC). | |
| GV-POE Switch | GV-POE Switch is designed to provide power along with network connection to IP devices. It is available in various models with different numbers and types of ports. | ||
| Power Adapter | Contact our sales representatives for the countries and areas supported. | ||
- Box Camera
- Terminal Block
- Fixed Focal or Varifocal Megapixel Lens
- Six Lens Rings
- Video Out Wire
- Camera Holder
- Holder Screw x 2
- Power Adapter
- Download Guide
- Warranty Card
Note:
- Smart streaming requires either GV‐DVR / NVR V8.7.0.0 or GV‐VMS V16.10.0.0.
- The power adapter can be excluded upon request.
- The signal range and data throughput may vary depending on the network conditions and environmental factors.
- With the standard installation, the supporting rack is not included in the packing list.
- GV-Housing103 only works with GV-Mount300-1, GV-Mount310-1, GV-Mount400-1 and GV-Mount410-1.
- Specifications are subject to change without notice.
Note:
- Smart streaming requires either GV‐DVR / NVR V8.7.0.0 or GV‐VMS V16.10.0.0.
- The power adapter can be excluded upon request.
- The signal range and data throughput may vary depending on the network conditions and environmental factors.
- With the standard installation, the supporting rack is not included in the packing list.
- GV-Housing103 only works with GV-Mount300-1, GV-Mount310-1, GV-Mount400-1 and GV-Mount410-1.
- Specifications are subject to change without notice.
- Box Camera
- Terminal Block
- Fixed Focal or Varifocal Megapixel Lens
- Six Lens Rings
- Video Out Wire
- Camera Holder
- Holder Screw x 2
- Power Adapter
- Download Guide
- Warranty Card
Note:
- Smart streaming requires either GV‐DVR / NVR V8.7.0.0 or GV‐VMS V16.10.0.0.
- The power adapter can be excluded upon request.
- The signal range and data throughput may vary depending on the network conditions and environmental factors.
- With the standard installation, the supporting rack is not included in the packing list.
- GV-Housing103 only works with GV-Mount300-1, GV-Mount310-1, GV-Mount400-1 and GV-Mount410-1.
- Specifications are subject to change without notice.
