GV-TXVL1610

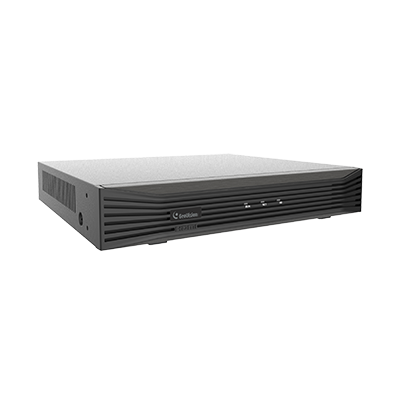

GV-TXVL1610 is a powerful, compact HD DVR supporting both H.264 and H.265 compression. It accommodates up to 16 analog camera channels and 8 IP camera channels, allowing a total of 24 video inputs. The DVR converts analog signals into high-resolution digital images of up to 8 megapixels. With 4-in-1 video input, it supports TVI, AHD, CVI, and CVBS signal types.
In addition to high-quality recording, GV-TXVL1610 features advanced AI functions, such as face detection, smart intrusion detection, and people and vehicle motion detection. When integrated with AI-capable GV-IP cameras, it enables a broad range of analytics, ideal for comprehensive perimeter protection and surveillance intelligence.
In addition to high-quality recording, GV-TXVL1610 features advanced AI functions, such as face detection, smart intrusion detection, and people and vehicle motion detection. When integrated with AI-capable GV-IP cameras, it enables a broad range of analytics, ideal for comprehensive perimeter protection and surveillance intelligence.
- 16-ch TVI / AHD / CVI / CVBS video input
- 8-ch IP camera input
- VGA and HDMI simultaneous output, up to 4K (3840 x 2160)
- 1 SATA interface, up to 16 TB
- Audio over coaxial cable support (only for TVI cameras)
- 4 alarms inputs and 1 alarm output
- Realtime face detection
- People and vehicle detection
- Analytics by cameras supported
- Smart device access (iOS and Android)
- ONVIF cameras supported
- GV-VPN supported
- 12 languages supported
Note:
- Fisheye dewarping is not supported by GV-TXVL1610.
- GV-TMEB5800 is not supported by GV-TXVL1610.
- Certain GV-IP cameras are not supported by GV-TXVL1610. See the Technical Notice for details.
- Product design and specifications are subject to change without notice.
Note:
- Fisheye dewarping is not supported by GV-TXVL1610.
- GV-TMEB5800 is not supported by GV-TXVL1610.
- Certain GV-IP cameras are not supported by GV-TXVL1610. See the Technical Notice for details.
- Product design and specifications are subject to change without notice.
| Model No | Name | Details | |
|---|---|---|---|
| GV-POE Switch | GV-POE Switch is designed to provide power along with network connection to IP devices. It is available in various models with different numbers and types of ports. | ||
- GV-TXVL1610
- SATA Cable
- HDD Power Cable
- Screw Kit (for HDD)
- USB Mouse
- Power Cord
- Power Adapter (DC 12V, 3A)
- Rack Mount Kit (2 L-Shaped Brackets + 4 Screws)
- Download Guide
Note:
- Fisheye dewarping is not supported by GV-TXVL1610.
- GV-TMEB5800 is not supported by GV-TXVL1610.
- Certain GV-IP cameras are not supported by GV-TXVL1610. See the Technical Notice for details.
- Product design and specifications are subject to change without notice.
Note:
- Fisheye dewarping is not supported by GV-TXVL1610.
- GV-TMEB5800 is not supported by GV-TXVL1610.
- Certain GV-IP cameras are not supported by GV-TXVL1610. See the Technical Notice for details.
- Product design and specifications are subject to change without notice.
- GV-TXVL1610
- SATA Cable
- HDD Power Cable
- Screw Kit (for HDD)
- USB Mouse
- Power Cord
- Power Adapter (DC 12V, 3A)
- Rack Mount Kit (2 L-Shaped Brackets + 4 Screws)
- Download Guide
Note:
- Fisheye dewarping is not supported by GV-TXVL1610.
- GV-TMEB5800 is not supported by GV-TXVL1610.
- Certain GV-IP cameras are not supported by GV-TXVL1610. See the Technical Notice for details.
- Product design and specifications are subject to change without notice.
