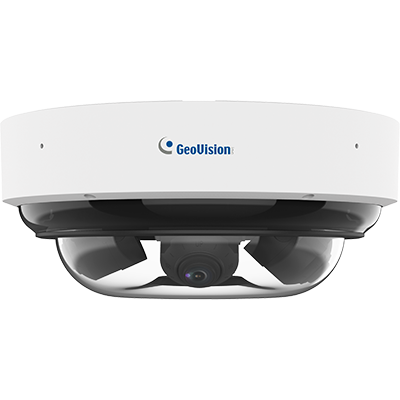

GV-TMS20811
AI 4 x 5MP Quad-Sensor Multi-Directional H.265 5x Zoom Super Low Lux WDR Pro IR IP Dome
AI Deep-Learning IP Camera
GV-TMS20811 is an outdoor motorized network camera with 4 adjustable lenses, providing a 360° field of view and AI function support for 4 channels concurrently. It features four 5 MP CMOS image sensors to deliver a video resolution of 2880 x 1620 at up to 30 fps and is equipped with an automatic IR-cut filter and nine IR LEDs for day and night surveillance. The camera supports H.265 video codec to achieve a better compression ratio while maintaining high-quality pictures at reduced network bandwidths. It adheres to IP67 and IK10 standards and can be powered through PoE.
Empowered by deep learning algorithms, AI technology distinguishes humans and vehicles from other moving objects. Integrated with GeoVision Video Management Software (VMS), it supports AI perimeter protection, real-time alerts, event playback, and more.
GV-TMS20811 is an outdoor motorized network camera with 4 adjustable lenses, providing a 360° field of view and AI function support for 4 channels concurrently. It features four 5 MP CMOS image sensors to deliver a video resolution of 2880 x 1620 at up to 30 fps and is equipped with an automatic IR-cut filter and nine IR LEDs for day and night surveillance. The camera supports H.265 video codec to achieve a better compression ratio while maintaining high-quality pictures at reduced network bandwidths. It adheres to IP67 and IK10 standards and can be powered through PoE.
Empowered by deep learning algorithms, AI technology distinguishes humans and vehicles from other moving objects. Integrated with GeoVision Video Management Software (VMS), it supports AI perimeter protection, real-time alerts, event playback, and more.
Models
| Model | GV-TMS20811 |
| Iris | Fixed |
| Focal Length (mm) | 2.7~ 3.5mm |
| Horizontal FOV | 110.3°~31° |
| Maximum Aperture | F/1.2 |
| Image Format | 1/2.7" |
- AI deep learning: AI Perimeter Protection & Classification (Human, Vehicle)
- 4 adjustable lenses in one camera cover up to 360° field of view
- 1/2.7" progressive scan super low lux CMOS sensor
- Min. illumination at 0.002 lux
- Triple streams from H.265, H.264
- Up to 30 fps at 2880 x 1620
- Intelligent IR
- IR distance up to 50 m (165 ft)
- Day and Night function (with removable IR-cut filter)
- Vandal resistance (IK10 for metal casing)
- 3-axis mechanism (pan / tilt / rotate)
- Ingress protection (IP67)
- Built-in microSD card slot (SD / SDHC / SDXC) for local storage
- DC 24V / AC 24V / High PoE (IEEE 802.3bt)
- Built-in microphone
- Two-way audio capable
- Wide Dynamic Range Pro (WDR Pro)
- Defog
- AI analytics available for 4 channels concurrently (Intrusion, Cross Line, Enter Area, Leave Area, Face Detection, People Flow Counting, Crowd Density Monitoring)
- 3D noise reduction
- Motion detection
- Tampering alarm
- Text overlay
- Privacy mask
- 12 languages supported
- ONVIF (Profile G, S, T, M) conformant
Note:
- Do not use clothes or any ordinary material to clean the camera cover since they may result in scratches.
- Specifications are subject to change without notice.
Note:
- Do not use clothes or any ordinary material to clean the camera cover since they may result in scratches.
- Specifications are subject to change without notice.
| Model No | Name | Details | |
|---|---|---|---|
| GV-Mount113 | Pendant Adapter Plate |
|
Dimensions: Ø 318 x 116 mm (Ø 12.5 x 4.6 in) Weight: 1.3 kg (2.9 lb) *must be used with GV-Mount114, 208-5, or 210-3 |
| GV-Mount114 | Pendant Mount |
|
Dimensions: Ø 116.5 x 239 mm (Ø 4.6 x 9.4 in) Weight: 0.67 kg (1.5 lb) *must be used with GV-Mount113 |
| GV-Mount 208-5 | Swan Neck Mount |
|
Dimensions: 879 x 831 x 166 mm (34.6 x 32.7 x 6.5 in) Weight: 4.3 kg (9.47 lb) *must be used with GV-Mount113 |
| GV-Mount210-3 | Wall Pendant Mount |
|
Dimensions: 216 x 141 x 313 mm (8.5 x 5.6 x 12.3 in) Weight: 1.0 kg (2.2 lb) *must be used with GV-Mount113 |
| GV-Mount313 | Convex Corner Mount |
|
Dimensions: 215 x 230 x 127 mm (8.5 x 9.1 x 5 in) Weight: 0.73 kg (1.6 lb) *must be used with GV-Mount210-3 |
| GV-Mount480 | Pole Mount Bracket |
|
Dimensions: 215 x 172 x 65 mm (8.5 x 6.8 x 2.6 in) Weight: 0.55 kg (1.2 lb) *must be used with GV-Mount210-3 |
| GV-PA903BT | Gigabit BT PoE++ Adapter |
|
Dimensions: 170 x 100 x 40 mm (6.69" x 3.94" x 1.57) Weight: 760 g (1.68 lb) |
| GV-POE Switch | GV-POE Switch is designed to provide power along with network connection to IP devices. It is available in various models with different numbers and types of ports. | ||
| Power Adapter | Contact our sales representatives for the countries and areas supported. | ||
- GV-TMS20811 Quad-Sensor IR Dome
- Pendant Mount Plate
- Waterproof Rubber Set
- Screw Kit
- Drill Template Paster
- Protective Tape
- Torx Wrench
- Download Guide
Note:
- Do not use clothes or any ordinary material to clean the camera cover since they may result in scratches.
- Specifications are subject to change without notice.
GV-TMS20811 in Day Mode
GV-TMS20811 in Color Night Mode
Note:
- Do not use clothes or any ordinary material to clean the camera cover since they may result in scratches.
- Specifications are subject to change without notice.
- GV-TMS20811 Quad-Sensor IR Dome
- Pendant Mount Plate
- Waterproof Rubber Set
- Screw Kit
- Drill Template Paster
- Protective Tape
- Torx Wrench
- Download Guide
Note:
- Do not use clothes or any ordinary material to clean the camera cover since they may result in scratches.
- Specifications are subject to change without notice.
