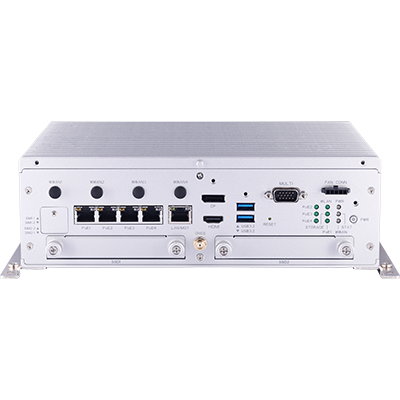

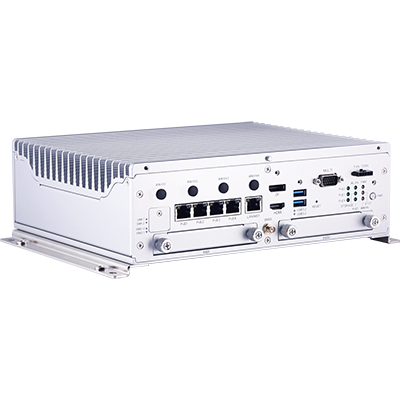

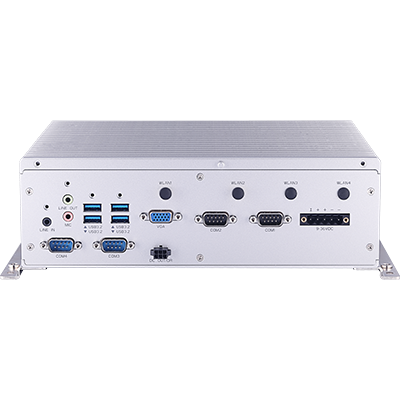

GV-Mobile System 2710

GV-Mobile System 2710 is a fanless system capable of operating over a wide temperature range and features anti-vibration protection, making it ideal for public transit and industrial environments.

GV-Mobile System 2710 offers up to 2 hot-swappable HDD or SSD drive bays. This system supports up to 32 channels for GV-NVR, and up to 64 camera channels for GV-VMS to provide an all-in-one solution (Live View, Playback, Recording, Backup, CMS). The system can also fulfill various access control requirements when installed with GV-ASManager access management software or GV-AI FR face recognition system.

Software Supported: GV-NVR / GV-VMS / GV-ASManager / GV-AI FR / Other GV-Software (by request)
  • Powered by Intel Core i7 Processor
  • 64-bit Windows 11 IoT Enterprise
  • GPU Decoding
  • 2 Hot-Swappable HDD / SSD bays for up to 4 TB of storage
  • Fanless System
  • Vibration and Mechanical Shock Protection (MIL-STD-810H)
  • Power Ignition Management (ACC)
  • Wide Operating Temperature (-20°C ~ 60°C / -4°F ~ 140°F for Industrial SSD)
  • 5 Ethernet Ports (4 x 2.5 GbE PoE 802.3af/at, max. 60 W total; 1 x 1 GbE LAN)
  • Multiple monitor display for up to 3 monitors simultaneously (HDMI, DisplayPort, VGA)
  • Optional Wireless Communication (Wi-Fi / 4G)
  • Built-in GPS (Vehicle Tracking supported for GV-NVR only)
  • E-Mark Certified
Note:
  • The 4G / Wi-Fi module will be built into the GV-Mobile System 2710 and tested before shipment. Opening the case and installing the accessories yourself will void the warranty.
  • Specifications are subject to change without notice.

Note:
  • The 4G / Wi-Fi module will be built into the GV-Mobile System 2710 and tested before shipment. Opening the case and installing the accessories yourself will void the warranty.
  • Specifications are subject to change without notice.
Model No Name Details
GV-IO Box Series GV-IO Box series provides 4 / 8 / 16 inputs and relay outputs, and supports both DC and AC output voltages, with optional support for Ethernet module and 4E additionally supporting PoE connection.
GV-Joystick V3 GV-Joystick V3 facilitates PTZ camera control. It is compatible not only with GeoVision software, but also with any third-party software that supports the HID standard.
Power Adapter Contact our sales representatives for the countries and areas supported.
4G Module The 4G module allows data exchange for the GV-Mobile System through the network connection covering a wide area.
Wi-Fi Module The Wi-Fi module allows data exchange for the GV-Mobile System through a wireless network connection within a local area.

Note:
  1. Certain GV-Mount models must be used with other GV-Mounts for proper installation. Please refer to the datasheet before purchase.
  2. Certain GV-Surveillance System accessories are only compatible with specific models. Please refer to the datasheet before purchase.
  • GV-Mobile System 2710
  • 5-pin Terminal Block (for ACC Connection and DC In)
  • HDD screw x 8
  • GPS Antenna
  • GV-NVR Dongle for third-party IP Camera Connection (Optional)
  • GV-VMS Dongle for 64CH or third-party IP Camera Connection (Optional)
  • GV‐ASManager Dongle (Optional)
  • GV-AI FR Dongle (Optional)
Note:
  • The 4G / Wi-Fi module will be built into the GV-Mobile System 2710 and tested before shipment. Opening the case and installing the accessories yourself will void the warranty.
  • Specifications are subject to change without notice.
Note:
  • The 4G / Wi-Fi module will be built into the GV-Mobile System 2710 and tested before shipment. Opening the case and installing the accessories yourself will void the warranty.
  • Specifications are subject to change without notice.
  • GV-Mobile System 2710
  • 5-pin Terminal Block (for ACC Connection and DC In)
  • HDD screw x 8
  • GPS Antenna
  • GV-NVR Dongle for third-party IP Camera Connection (Optional)
  • GV-VMS Dongle for 64CH or third-party IP Camera Connection (Optional)
  • GV‐ASManager Dongle (Optional)
  • GV-AI FR Dongle (Optional)
Note:
  • The 4G / Wi-Fi module will be built into the GV-Mobile System 2710 and tested before shipment. Opening the case and installing the accessories yourself will void the warranty.
  • Specifications are subject to change without notice.
