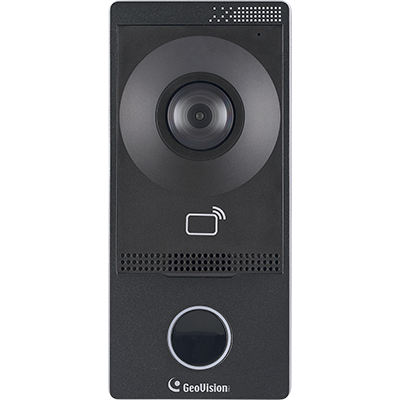

GV-IS1320
H.265 2MP WDR IP Video Intercom

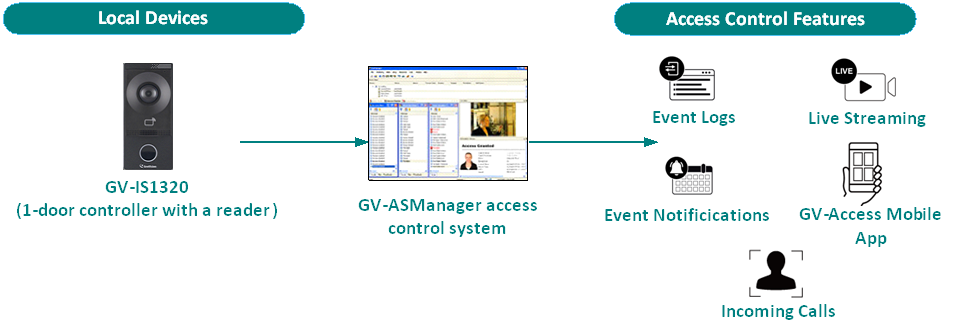

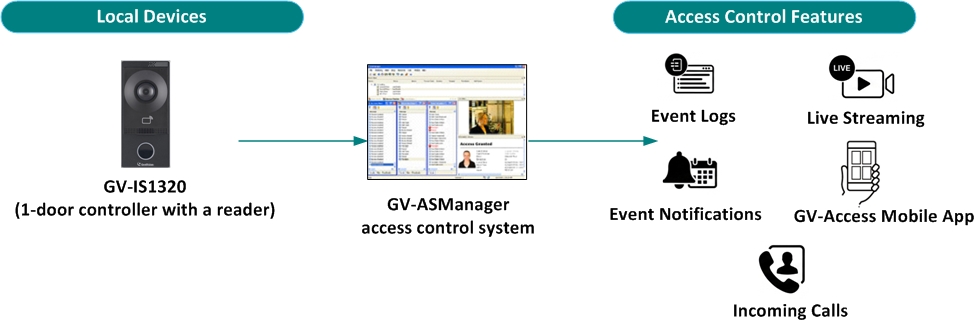

The GV-IS1320 Intercom Controller combines advanced access control with real-time video communication. Featuring a built-in 2 MP camera and 13.56 MHz reader, it integrates effortlessly with the GV-ASManager system to manage up to 100,000 access cards — ideal for enterprises, campuses, and multi-site facilities.
During access events, the GV-IS1320 delivers live video streaming and snapshots, giving operators instant visibility at every entry or exit point. And with a simple press of the call button, visitors connect directly to the GV-ASManager operator, who can see, speak, and grant access — all from one intuitive interface.
During access events, the GV-IS1320 delivers live video streaming and snapshots, giving operators instant visibility at every entry or exit point. And with a simple press of the call button, visitors connect directly to the GV-ASManager operator, who can see, speak, and grant access — all from one intuitive interface.
- One door IP controller (entry and exit)
- Built-in 13.56 MHz, ISO 14443A reader
- 4 inputs (Door Sensor, Door Button, Fire Sensor, Tamper Sensor)
- 2 outputs (Door Lock, Alarm)
- 2 GeoVision's RS-485 or OSDP compliant readers supported
- 1/2.9" progressive scan CMOS
- Minimum illumination at 0.02 lux
- Dual streams from H.265, H.264, and MJPEG
- Up to 30 fps at 1920 x 1080
- Intelligent IR
- Ingress protection (IP65)
- DC 12V / PoE (IEEE 802.3af)
- Built-in micro SD card slot (SD / SDHC / SDXC / UHS-I, Class 10) for local storage
- Day and night function (with removable IR-cut filter)
- Built-in IR with effective distance up to 3 m (10 ft)
- Built-in microphone and speaker
- Wide Dynamic Range (WDR)
- 2D / 3D noise reduction
- Text overlay
- Privacy mask
Note: All specifications are subject to change without notice.
Note: All specifications are subject to change without notice.
| Model No | Name | Details | |
|---|---|---|---|
| Push Button Switch | The push button switch can be integrated with access control system, allowing door exit by momentarily activating or deactivating the electric locking device. Both American standard and European standard push buttons are available. | ||
| GV-IB25 / 65 / 85 Infrared Button | The GV-IB25 / 65 / 85 Infrared Button detects infrared movement within 3 to 12 cm and allows you to open the door with a wave of hand. | ||
| Electric Lock | Three types of electric locks are available: electromagnetic locks, electric bolts, and electric strikes. | ||
| Access Card / Fob / Sticker / Tag | GeoVision offers a wide range of access cards, fobs, stickers, and tags to meet your needs. Please refer to the product datasheet for information on compatible frequencies and accessories. | ||
| Power Adapter | Contact our sales representatives for the countries and areas supported. | ||
| GV-Mount929 | Sunshield Wall Mount |
|
Dimensions: 178.5 × 83 × 50 mm (7.0" × 3.3" × 2.0") Weight: 0.21 kg (0.46 lb) With GV-Mount929, the intercom controller can be conveniently installed at outdoor locations exposed to sunlight. |
Note: Certain GV-Mount models must be used with other GV-Mounts for proper installation. Please refer to the datasheet before purchase.
- GV-IS1320
- Function Cable
- Screw Kit
- Screw Driver
- MicroSD Card (32 GB, formatted and inserted)
- Drill Template Paster
- Wall Mount Bracket
- Embedded Bracket
- Download Guide
Note: All specifications are subject to change without notice.
Note: All specifications are subject to change without notice.
- GV-IS1320
- Function Cable
- Screw Kit
- Screw Driver
- MicroSD Card (32 GB, formatted and inserted)
- Drill Template Paster
- Wall Mount Bracket
- Embedded Bracket
- Download Guide
Note: All specifications are subject to change without notice.
