GV-IP Display 116

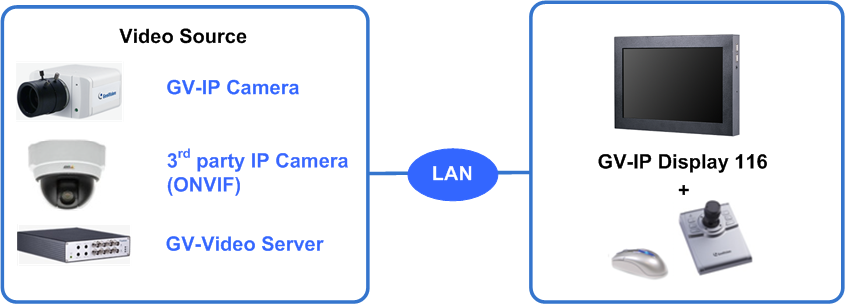

GV-IP Display 116 is a panel device capable of decoding and displaying up to 64 IP cameras in a single or split screen division. It is light weighted and requires only a minimal amount of installation. GV-IP Display 116 allows you to monitor channels, capture snapshots of critical moments, and pause a channel when events occur. In addition, GV-Joystick V2 can be installed to effectively control GeoVision and third-party PTZ / Speed Dome cameras.
- Decode video streams in H. 264 / H.265 codec up to 30 fps
- Decode up to 8 megapixel IP cameras
- Decode up to 64 IP streams
- Auto-search for ONVIF IP devices
- Support for third-party IP cameras that adhere to RTSP or ONVIF
- Single, 4-divsion, 6-division, 8-division, and 9-division view
- Display of Matrix view through GV-Mobile Server
- Support for 10/100 Ethernet over LAN
- PTZ and Speed Dome camera controls using GV-Joystick V2
- Micro SD card and USB drive for snapshot storage and firmware upgrade
- Support for camera and layout assignment remotely from GV-VMS, GV-Control Center, or GV-Edge Recording Manager
- 10 languages supported
Note:
- Specifications are subject to change without notice.
Note:
- Specifications are subject to change without notice.
| Model No | Name | Details | |
|---|---|---|---|
| GV-Joystick V2 |
|
GV-Joystick V2 facilitates focusing, zooming, panning, tilting of GeoVision and third-party PT, PTZ and Speed Dome cameras on GV-IP Decoder Box or GV-IP Display. | |
Note:
- Specifications are subject to change without notice.
GV-IP Decoder Box Remote Control on GV-Control Center
GV-IP Decoder Box Remote Control on GV-VMS
GV-IP Decoder Box Remote Control on GV-ERM
