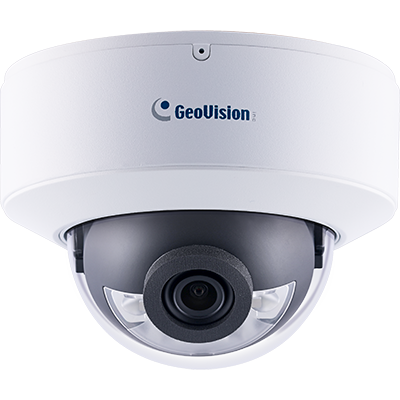

GV-GDRF4800

AI 4MP H.265 Super Low Lux WDR Pro Full Color White LED IR Mini Fixed Rugged IP Dome

AI Deep-Learning IP Camera

GV‐GDRF4800 is a 4 MP outdoor mini fixed rugged IP dome camera, equipped with smart white LEDs for full color surveillance during nighttime. The camera supports H.265 video codec to achieve a better compression ratio while maintaining high-quality pictures at reduced network bandwidth. GV‐GDRF4800 adheres to IP67 and IK10 standards and can be powered through PoE.

Empowered by deep learning algorithms, AI technology distinguishes humans and vehicles from other moving objects. Integrated with GeoVision Video Management Software (GV-VMS), it supports AI perimeter protection, real-time alert, playback, and more.

Models

Model	GV-GDRF4800-2F	GV-GDRF4800-3F
Iris	Fixed	Fixed
Focal Length (mm)	2.8mm	3.6mm
Horizontal FOV	94°	78°
Maximum Aperture	F/1.6	F/1.6
Image Format	1/3"	1/3"

AI deep learning: AI Perimeter Protection & Classification (Human, Vehicle)
1/3" progressive scan CMOS sensor
Triple streams from H.265, H.264 and MJPEG
Min. illumination at 0.005 lux
Up to 30 fps at 2560 x 1440
Intelligent IR
Smart White LED distance up to 30 m (100 ft)
Wide Dynamic Range Pro (WDR Pro)
IR distance up to 30 m (100 ft)
Ingress protection (IP67)
Vandal resistance (IK10 for metal casing)
3-axis mechanism (pan / tilt / rotate)
DC 12V / PoE (IEEE 802.3af)
Built-in microSD card slot (SD / SDHC / SDXC) for local storage
Built-in microphone
3D noise reduction
AI analytics (Line Crossing, Region Intrusion)
Smart lighting switch between IR LED (for motion detection) and White LED (for people, vehicle and motorcycle detection)
Motion detection
Text overlay
Privacy mask
ONVIF (Profile G, S, T, M) conformant
21 languages supported

Note:

Specifications are subject to change without notice.

Note:

Specifications are subject to change without notice.

Model No	Name	Details
GV-Mount211-4	Wall Mount Bracket		Dimensions: 129.5 x 155 x 74.5 mm (5.10" x 6.10" x 2.93") Weight: 0.527 kg (1.16 lb)
GV-Mount211-8	Wall Mount Bracket		Dimensions: 188.4 x 121 x 137.3 mm (7.41" x 4.76" x 5.4") Weight: 0.52 kg (1.15 lb) *must be used with Mount515
GV-Mount314	Corner Mount Bracket		Dimensions: 215 x 121.4 x 215 mm (8.46 x 4.78 x 8.46 in) Weight: 2.05 kg (4.52 lb) *must be used with Mount211-8
GV-Mount470	Pole Mount Bracket		Dimensions: 163.3 x 54.5 x 215 mm (6.43" x 2.15" x 8.46") Weight: 1.10 kg (2.43 lb) *must be used with Mount211-8
GV-Mount515	Junction Box		Dimensions: 117.9 x 143.3 x 39 mm (4.64 x 5.64 x 1.54 in) Weight: 0.24 kg (0.53 lb)
GV-PA191	PoE Adapter		GV-PA191 is a Power over Ethernet (PoE) adapter designed to provide power to the IP device through a single Ethernet cable.
GV-PA301	Gigabit PoE Adapter		GV-PA301 is a Gigabit Power over Ethernet (PoE) adapter.
GV-POE Switch		GV-POE Switch is designed to provide power along with network connection to IP devices. It is available in various models with different numbers and types of ports.
Power Adapter		Contact our sales representatives for the countries and areas supported.
