GV-GDR2801

AI 2MP H.265 Super Low Lux WDR Pro IR Mini Fixed Rugged IP Dome

AI Deep-Learning IP Camera

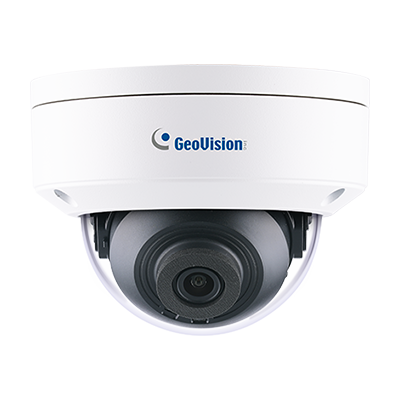

GV‐GDR2801 is a 2 MP outdoor mini fixed rugged IP Dome. The camera supports H.265 video codec to achieve a better compression ratio while maintaining high-quality pictures at reduced network bandwidth. GV‐GDR2801 adheres to IP67 and IK10 standards and can be powered through PoE.

Empowered by deep learning algorithms, AI technology distinguishes humans and vehicles from other moving objects. Integrated with GeoVision Video Management Software (GV-VMS), it supports AI perimeter protection, real-time alert, playback, and more.

Models

Model	GV-GDR2801-2F	GV-GDR2801-3F
Iris	Fixed	Fixed
Focal Length (mm)	2.8mm	3.6mm
Horizontal FOV	107°	89°
Maximum Aperture	F/1.6	F/1.6
Image Format	1/2.8"	1/2.8"

AI deep learning: AI Perimeter Protection & Classification (Human, Vehicle)
1/2.8" progressive scan CMOS sensor
Triple streams from H.265, H.264 or MJPEG
Min. illumination at 0.008 lux
Up to 30 fps at 1920 x 1080
Intelligent IR
Wide Dynamic Range Pro (WDR Pro)
IR distance up to 30 m (100 ft)
Ingress protection (IP67)
Vandal resistance (IK10 for metal casing)
3-axis mechanism (pan / tilt / rotate)
DC 12V / PoE (IEEE 802.3af)
Built-in microSD card slot (SD / SDHC / SDXC) for local storage
One-way audio capable
3D noise reduction
AI analytics (Line Crossing, Region Intrusion)
Motion detection
Text overlay
Privacy mask
ONVIF (Profile G, S, T, M) conformant
21 languages supported

Note:

Specifications are subject to change without notice.

Note:

Specifications are subject to change without notice.

Model No	Name	Details
GV-Mount211-4	Wall Mount Bracket		Dimensions: 129.5 x 155 x 74.5 mm (5.10" x 6.10" x 2.93") Weight: 0.527 kg (1.16 lb)
GV-Mount211-6	Wall Mount Bracket		Dimensions: 199 x 139.3 x 140.6 mm (7.83" x 5.48" x 5.54") Weight: 0.56 kg (1.23 lb) *must be used with Mount506
GV-Mount314	Corner Mount Bracket		Dimensions: 215 x 121.4 x 215 mm (8.46 x 4.78 x 8.46 in) Weight: 2.05 kg (4.52 lb) *must be used with Mount211-6
GV-Mount470	Pole Mount Bracket		Dimensions: 163.3 x 54.5 x 215 mm (6.43" x 2.15" x 8.46") Weight: 1.10 kg (2.43 lb) *must be used with Mount211-6
GV-Mount506	Junction Box		Dimensions: Ø 139.3 x 171.6 x 50 mm (Ø 5.48" x 6.76" x 1.97") Weight: 0.51 kg (1.13 lb)
GV-Mount507-1	Junction Box		Dimensions: Ø 111.7 x 55 mm (Ø 4.40" x 2.17") Weight: 0.33 kg (0.73 lb)
GV-PA191	PoE Adapter		GV-PA191 is a Power over Ethernet (PoE) adapter designed to provide power to the IP device through a single Ethernet cable.
GV-PA301	Gigabit PoE Adapter		GV-PA301 is a Gigabit Power over Ethernet (PoE) adapter.
GV-POE Switch		GV-POE Switch is designed to provide power along with network connection to IP devices. It is available in various models with different numbers and types of ports.
Power Adapter		Contact our sales representatives for the countries and areas supported.
