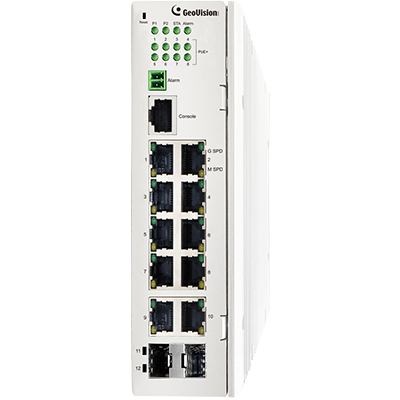

GV-APOE0812-E

8-Port Gigabit L2+ Web Management Industrial PoE Switch

GV-APOE0812-E is an industrial-grade, L2+ web-managed PoE switch, featuring 8-Port 10/100/1000BaseT(X) PoE+, 2 SFP, and 2 Gigabit uplink ports. Supporting the IEEE 802.3at Power over Ethernet standard, it delivers a total power budget of up to 240 W.

By eliminating the need for dedicated power cables, the switch simplifies the deployment of powered devices (PD) such as IP cameras. It also features an extended transmission mode, enabling power and data delivery over network cables up to 250 m (820 ft) at 10 Mbps.

Perfect for medium-to-large network environments to strengthen network connection and efficiency, the switch provides exceptional Web-smart management capabilities to optimize your infrastructure.
  • 8-Port 10/100/1000BaseT(X) PoE+ with 2 SFP and 2 Gigabit Uplink Ports
  • IEEE 802.3at compliant (8 Ports at Full 30 W)
  • VLAN, QoS, RSTP, IGMP Snooping, IPV4, IPV6, Static Routing, Static ARP, DHCP Server, Link Aggregation, LACP, Port Security, Bandwidth Control, Storm Control
  • PD Alive Monitor
  • ONVIF Discover
  • PoE Schedule
  • PoE connection for network cables up to 250 m (820 ft) at 10 Mbps transfer rate
  • Max. 240 W PoE Budget
  • Extreme temperature tolerance (‐40°C ~ 75°C / ‐40°F ~ 167°F)
  • Up to 8 GV-IP Cameras support
Note:
  • The switch is a plug-and-play device and compatible with all SFP modules.
  • Specifications are subject to change without notice.

Note:
  • The switch is a plug-and-play device and compatible with all SFP modules.
  • Specifications are subject to change without notice.
Model No Name Details
GV-LC The SFP transceiver complies with IEEE 802.3z 1000BaseSX Ethernet, and provides the media transmission distance up to 220 / 550 m (772 / 1804 ft).
GV-LC10 The SFP transceiver complies with IEEE 802.3z 1000BaseLX Ethernet, and provides the media transmission distance up to 10 km (6 mi).
GV-LC V2 The SFP transceiver complies with IEEE 802.3z 1000BaseSX Ethernet, and provides the media transmission distance up to 550 m (1804 ft).
GV-LC10 V2 The SFP transceiver complies with IEEE 802.3z 1000BaseLX Ethernet, and provides the media transmission distance up to 20 km (12 mi).
Power Adapter Contact our sales representatives for the countries and areas supported.

Note: Certain GV-Mount models must be used with other GV-Mounts for proper installation. Please refer to the datasheet before purchase.
  • GV-APOE0812-E
  • Terminal Block x 2
  • Rack Mount Kit x 2
  • Screw x 4
  • Download Guide
Note:
  • The switch is a plug-and-play device and compatible with all SFP modules.
  • Specifications are subject to change without notice.
Note:
  • The switch is a plug-and-play device and compatible with all SFP modules.
  • Specifications are subject to change without notice.
  • GV-APOE0812-E
  • Terminal Block x 2
  • Rack Mount Kit x 2
  • Screw x 4
  • Download Guide
