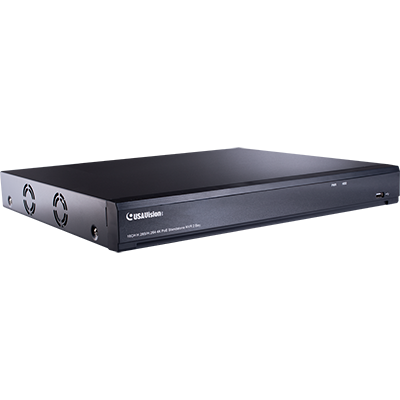

UA-SNVR1620-P

16 CH H.265 / H.264 8 MP PoE 2-Bay Standalone NVR

AI Integrated Standalone NVR

UA-SNVR1620-P is an H.264/H.265 Linux-embedded Standalone Network Video Recorder which records video files directly to the internal hard drives. UA-SNVR1620-P supports up to 16 channels of IP cameras for network surveillance. Featuring with up to 4K resolution video output, UA-SNVR1620-P eliminates the need of a separate PC to view and play back video from the unit.

With its Web Client on the web browser, users can access several functions, including Live View, Change Stream, Manual Alarm, Divide Screen, and more.

UA-SNVR1620-P integrates the capacity of AI-capable UA-IP cameras and provides various video analytics functions for perimeter protection. With the Face Recognition functions, users can access the database for face tracking on E-Map, face attendance management, and repeated visitor search to enhance the convenience and security of the surveillance environment.
  • Realtime AI Face Recognition (face tracking on E-Map, attendance management, and repeated visitor search)
  • H.265 / H.264 video format
  • Up to 16-ch IP camera input
  • 1-ch HDMI, 1-ch VGA, HDMI at up to 4K (3840 x 2160) resolution
  • HDMI and VGA simultaneous output
  • 8 alarms inputs and 1 alarm output
  • Up to 8 MP resolution recording
  • 2 SATA HDDs, up to 10 TB for each HDD
  • Two‐way audio
  • P2P function for GV-Eye app
  • ONVIF cameras supported

Note:
  • Fisheye dewarping is currently not supported.
  • Camera connection is not supported by GV-TMEB5800.
  • All specifications are subject to change without notice.


Note:
  • Fisheye dewarping is currently not supported.
  • Camera connection is not supported by GV-TMEB5800.
  • All specifications are subject to change without notice.
Model No Name Details
  • UA-SNVR1620-P
  • 3.5"HDD Screw Kit x 2
  • 2.5"HDD Screw Kit x 2
  • USB Mouse
  • Power Adapter (DC 48V, 3.75A, 180W)
  • Power Cord
  • Download Guide

Note:
  • Fisheye dewarping is currently not supported.
  • Camera connection is not supported by GV-TMEB5800.
  • All specifications are subject to change without notice.

Note:
  • Fisheye dewarping is currently not supported.
  • Camera connection is not supported by GV-TMEB5800.
  • All specifications are subject to change without notice.
Model No. Ordering Part No. Description SKU No.
UA-SNVR1620-P 760-NR1620P-000 16CH, 4K PoE Standalone NVR 2 Bay,H.265/H.264 84-NR1620P-UA0U
