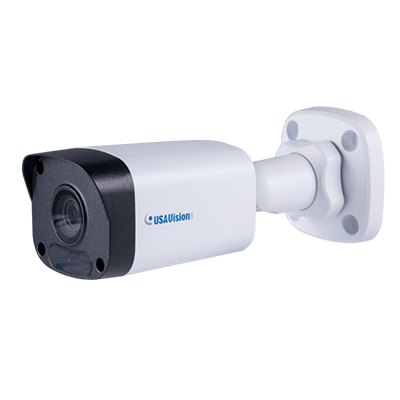

UA-B20004F
2MP H.265 Low Lux WDR IR Bullet IP Camera
The Bullet IP Camera is an outdoor network camera equipped with an automatic IR‐cut filter and an IR LED for day and night surveillance. The camera supports H.265 video codec to achieve better compression ratio while maintaining high quality pictures at reduced network bandwidths. It adheres to IP67 standards and can be powered through PoE.
Models
| Model | UA-B20004F |
| Iris | Fixed |
| Focal Length (mm) | 4mm |
| Horizontal FOV | 86° |
| Maximum Aperture | F/2.0 |
| Image Format | 1/2.7" |
- 1/2.7" progressive scan low lux CMOS sensor
- Min. illumination at 0.02 lux
- Triple streams from H.265, H.264 or MJPEG
- Up to 30 fps at 1920 × 1080
- Intelligent IR
- IR distance up to 30 m (100 ft)
- Day and Night function (with removable IR-cut filter)
- Ingress protection (IP67)
- DC 12V / PoE (IEEE 802.3af)
- Wide Dynamic Range (WDR)
- Defog
- 3D noise reduction
- Motion detection
- Text overlay
- Privacy mask
- ONVIF (Profile S, T) conformant
Note:
- Do not use clothes or any ordinary material to clean the camera cover since they may result in scratches.
- Specifications are subject to change without notice.
Note:
- Do not use clothes or any ordinary material to clean the camera cover since they may result in scratches.
- Specifications are subject to change without notice.
| Model No | Name | Details | |
|---|---|---|---|
| GV-Mount300-2 | Convex Corner Mount |
|
Dimensions: 137 x 233 x 160 mm (5.4" x 9.17" x 6.3") Weight: 1.65 kg (3.64 lb) |
| GV-Mount310-2 | Concave Corner Mount |
|
Dimensions: 111.2 x 369.9 x 210 mm (2.6" x 11.4" x 6.6") Weight: 1.65 kg (3.64 lb) |
| GV-Mount502 | Wall Mount Bracket |
|
Dimensions: 93 x 93 x 39 mm (3.66" x 3.66" x 1.53") Weight: 0.235kg (0.52 lb) |
| GV-PA191 | PoE Adapter |
|
GV-PA191 is a Power over Ethernet (PoE) adapter designed to provide power to the IP device through a single Ethernet cable. |
| GV-POE Switch | GV-POE Switch is designed to provide power along with network connection to IP devices. It is available in various models with different numbers and types of ports. | ||
| Power Adapter | Contact our sales representatives for the countries and areas supported. | ||
- UA‐B20004F IR Bullet IP Camera
- Waterproof Rubber Set
- Screw Kit
- Drill Template Paster
Note:
- Do not use clothes or any ordinary material to clean the camera cover since they may result in scratches.
- Specifications are subject to change without notice.
Note:
- Do not use clothes or any ordinary material to clean the camera cover since they may result in scratches.
- Specifications are subject to change without notice.
