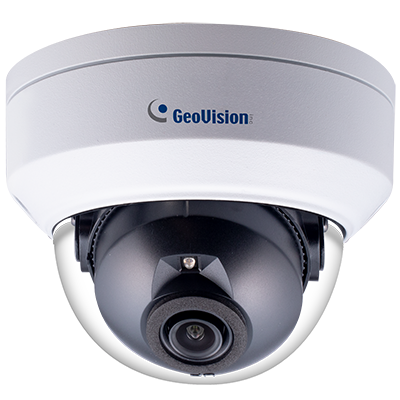

GV-TDR4703 Series
4MP H.265 Super Low Lux WDR Pro IR Mini Fixed Rugged IP Dome
GV-TDR4703 is an outdoor, fixed, network camera equipped with an automatic IR-cut filter and an IR LED for day and night surveillance. The camera supports H.265 video codec to achieve better compression ratio while maintaining high quality pictures at reduced network bandwidths. The camera adheres to IP67 and IK10 standards, and can be powered through PoE.
Models
| Model | GV-TDR4703-2F | GV-TDR4703-4F |
| Iris | Fixed | Fixed |
| Focal Length (mm) | 2.8mm | 4mm |
| Horizontal FOV | 95° | 82° |
| Maximum Aperture | F/2.0 | F/2.0 |
| Image Format | 1/3'' | 1/3'' |
- 1/3" progressive scan super low lux CMOS
- Min. illumination at 0.01 lux
- Triple streams from H.265, H.264 or MJPEG
- Up to 30 fps at 2688 x 1520
- Intelligent IR
- IR distance up to 30 m (100 ft)
- Day and Night function (with removable IR-cut filter)
- 3-axis mechanism (pan / tilt / rotate)
- Ingress protection (IP67)
- Vandal resistance (IK10 for metal casing)
- Built-in micro SD card slot (SD / SDHC / SDXC / UHS-I, Class 10) for local storage
- Two-way audio
- One sensor input and one alarm output
- DC 12V / PoE (IEEE 802.3af)
- Wide Dynamic Range Pro (WDR Pro)
- Defog
- 3D noise reduction
- Motion detection
- Text overlay
- Privacy mask
- ONVIF (Profile G, S, T) conformant
Note:
- Do not use clothes or any ordinary material to clean the camera cover since they may result in scratches.
- Specifications are subject to change without notice.
Note:
- Do not use clothes or any ordinary material to clean the camera cover since they may result in scratches.
- Specifications are subject to change without notice.
| Model No | Name | Details | |
|---|---|---|---|
| GV-Mount107 | Pendant Bracket |
|
Dimensions: Φ120 x 334 mm (Φ4.72" x 13.15") Weight: 0.74 kg (1.63 lb) *must be used with GV-Mount213 |
| GV-Mount211P | Wall Mount and Junction Box |
|
Dimensions: Φ233 x 126 x 126 mm / (Φ9.2 x 5 x 5") Weight: 1 kg (2.2 lb) |
| GV-Mount213 | Wall / Ceiling Box Mount |
|
Dimensions: Φ109 x 39 mm (Φ4.3" x 1.5") Weight: 0.2 kg (0.44 lb) |
| GV-Mount300-2 | Convex Corner Mount |
|
Dimensions: 137 x 233 x 160 mm (5.4" x 9.17" x 6.3") Weight: 1.65 kg (3.64 lb) |
| GV-Mount310-2 | Concave Corner Mount |
|
Dimensions: 111.2 x 369.9 x 210 mm (2.6" x 11.4" x 6.6") Weight: 1.65 kg (3.64 lb) |
| GV-Mount420 | Pole Mount Bracket |
|
Dimensions: Φ120 x 120 x 53.4 mm (Φ4.7" x 4.7" x 2.1") Weight: 0.45 kg (0.99 lb) Steel Strap Diameter: Φ 67 ~ 127 mm (Φ2.6"~ 5") *must be used with GV-Mount211P |
| GV-Mount704 | Extension Tube |
|
Dimensions: Φ3.5 x 10 or 20 or 30 or 50 cm (Φ1.38 x 3.9 or 7.9 or 11.8 or x 19.7") Weight: 225 g or 360 g or 500 g or 780 g (0.5 lb or 0.79 lb or 1.1 lb or 1.72 lb) *must be used with GV-Mount107 |
| GV-PA191 PoE Adapter | Power over Ethernet (PoE) Adapter |
|
The GV-PA191 is a Power over Ethernet (PoE) adapter designed to provide power to the IP device through a single Ethernet cable. |
| GV-POE Switch | The GV-POE Switch is designed to provide power along with network connection for IP devices. The GV-POE Switch is available in various models with different numbers and types of ports. | ||
| Power Adapter | Contact our sales representatives for the countries and areas supported. | ||
- GV-TDR4703 Mini Dome
- Waterproof Rubber Set
- Screw Kit
- Drill Template Paster
- Torx Wrench
- Download Guide
- Warranty Card
