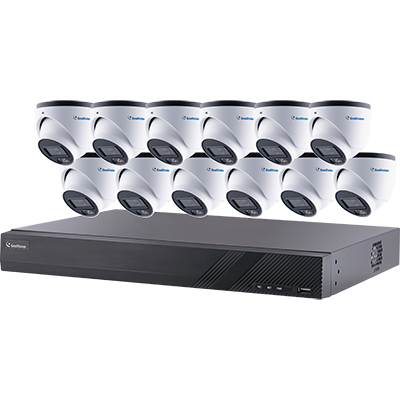

GV-GNC16EB12-4T
GV-GNVRC1620-P is an H.264/H.265 Linux-embedded Standalone Network Video Recorder, which records video files directly to the internal hard drive. GV-GNVRC1620-P supports up to 16 IP camera channels for video surveillance. It has a 16-port built-in PoE+ (IEEE 802.3at), functioning to carry network and power to connected IP cameras. Featuring video output with up to 4K resolution, GV-GNVRC1620-P eliminates the need for a separate PC to view and play back video from the unit. Its USB ports allow you to connect a USB mouse and a flash drive to back up videos.
GV-GNVRC1620-P also features advanced AI functions, including face detection and face recognition, and various analysis functions for perimeter protection. When integrated with compatible AI-capable GV-IP cameras, it provides a wide range of analytics to meet your diverse perimeter protection and surveillance needs. With the Face Recognition functions, users can access the database for face tracking on E-Map and face attendance management to enhance the convenience and security of the surveillance environment.
GV-GNVRC1620-P supports connecting a regular camera to GV-Cloud VMS for cloud-based monitoring or to GV-Center V2 for central monitoring.
GV-GNVRC1620-P also features advanced AI functions, including face detection and face recognition, and various analysis functions for perimeter protection. When integrated with compatible AI-capable GV-IP cameras, it provides a wide range of analytics to meet your diverse perimeter protection and surveillance needs. With the Face Recognition functions, users can access the database for face tracking on E-Map and face attendance management to enhance the convenience and security of the surveillance environment.
GV-GNVRC1620-P supports connecting a regular camera to GV-Cloud VMS for cloud-based monitoring or to GV-Center V2 for central monitoring.
- Records Up to 16 IP Cameras
- Supports Up to 16 MP Resolution
- 4K HDMI Output
- Supports H.265
- PoE Plug-and-Play Setup
- 4 TB Surveillance Hard Disk Drive
- AI Alerts & Smart Search Playback
Note:
- Local and Web fisheye dewarping both support dewarped display for only 1 channel at a time.
- Certain GV-IP cameras are not supported by the GV-GNVR. See the Technical Notice for details.
- Product design and specifications are subject to change without notice.
Note:
- Local and Web fisheye dewarping both support dewarped display for only 1 channel at a time.
- Certain GV-IP cameras are not supported by the GV-GNVR. See the Technical Notice for details.
- Product design and specifications are subject to change without notice.
| Model No | Name | Details | |
|---|---|---|---|
| GV-Mount117 | Pendant Mount |
|
Dimensions: Ø 121 x 191.4 mm (Ø 4.76 x 7.54 in) Weight: 0.4 kg (0.88 lb) |
| GV-Mount211-4 | Wall Mount Bracket |
|
Dimensions: 129.5 x 155 x 74.5 mm (5.10" x 6.10" x 2.93") Weight: 0.527 kg (1.16 lb) |
| GV-Mount211-8 GV-Mount506-1 |
Wall Mount Bracket Set |
|
Dimensions: 188.4 x 121 x 137.3 mm (7.41" x 4.76" x 5.4")
Weight: 0.52 kg (1.15 lb) Dimensions: 117.9 x 143.3 x 47 mm (4.64" x 5.64" x 1.85") Weight: 0.38 kg (0.84 lb) |
| GV-Mount314 | Corner Mount Bracket |
|
Dimensions: 215 x 121.4 x 215 mm (8.46 x 4.78 x 8.46 in) Weight: 2.05 kg (4.52 lb) |
| GV-Mount470 | Pole Mount Bracket |
|
Dimensions: 163.3 x 54.5 x 215 mm (6.43" x 2.15" x 8.46") Weight: 1.10 kg (2.43 lb) |
| GV-Mount506-1 | Junction Box |
|
Dimensions: 117.9 x 143.3 x 47 mm (4.64" x 5.64" x 1.85") Weight: 0.38 kg (0.84 lb) |
| GV-Mount507 | Junction Box |
|
Dimensions: Ø 96 x 38.8 mm (Ø 3.78" x 1.53") Weight: 0.135 kg (0.30 lb) |
| GV-Mount707 | Extension Tube |
|
Dimensions: Ø 37 x 515 mm (Ø 1.46 x 20.28 in) Weight: 0.8 kg (1.76 lb) |
| GV-Mount927 | Power Box Mount Bracket |
|
Dimensions: Ø 145 x 11.2 mm (Ø 5.71 x 0.44 in) Weight: 0.2 kg (0.44 lb) *for standard US single and double gang boxes only |
Note:
- Certain GV-Mount models must be used with other GV-Mounts for proper installation. Please refer to the datasheet before purchase.
- Certain GV-Surveillance System accessories are only compatible with specific models. Please refer to the datasheet before purchase.
- GV-GNVRC1620-P Package x 1
- GV-GNVRC1620-P x 1
- SATA Cable x 1
- Screw Kit x 1 (for HDD)
- USB Mouse x 1
- Power Adapter x 1
- Power Cord x 1
- Download Guide x 1
- 2 TB HDD x 1 (preinstalled in GV-GNVRC0810-P)
- 4 MP GV-Eyeball Dome IP Cameras x 6
- GV-GNVR Bundle Kit Quick Start Guide x 1
Note:
- Local and Web fisheye dewarping both support dewarped display for only 1 channel at a time.
- Certain GV-IP cameras are not supported by the GV-GNVR. See the Technical Notice for details.
- Product design and specifications are subject to change without notice.
Note:
- Local and Web fisheye dewarping both support dewarped display for only 1 channel at a time.
- Certain GV-IP cameras are not supported by the GV-GNVR. See the Technical Notice for details.
- Product design and specifications are subject to change without notice.
