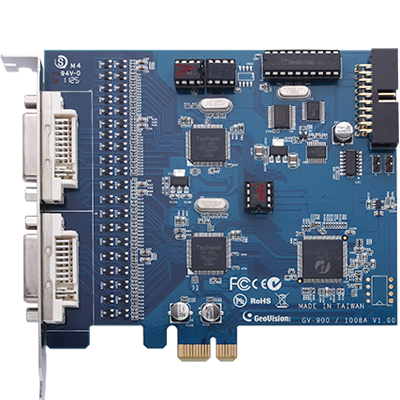

GV-900A Video Capture Card
One GV-900A Card provides up to 32 video channels and 8 audio channels, recording up to 240 / 200 fps (NTSC / PAL) in total with H.264 software compression.
Note:
- GV-900A is currently not compatible with VIA series and ATI series chipset motherboards.
- 16-port has the same recording rate and display rate as 32-port.
- Specifications are subject to change without notice.
Note:
- GV-900A is currently not compatible with VIA series and ATI series chipset motherboards.
- 16-port has the same recording rate and display rate as 32-port.
- Specifications are subject to change without notice.
Model No | Name | Details |
---|
- GV-900A Card x 1
- 1-16 Cams with 4-Port Audio DVI-Type Cable x 2 / 1-8 Cams with 4-Port Audio DVI-Type Cable x 2 / 1-4 Cams with 4-Port Audio DVI-Type Cable x 2
- Hardware Watchdog Jumper Wire x 1
Note: The two 1-16 Cams with 4-Port Audio DVI-Type cables are supplied with the GV-900A card with 32 video inputs, the two 1-8 Cams with 4-Port Audio DVI-Type cables are supplied with the GV-900A card with 16 video inputs and the two 1-4 Cams with 4-Port Audio DVI-Type cables are supplied with the GV-900A card with 8 video inputs.
Note:
- GV-900A is currently not compatible with VIA series and ATI series chipset motherboards.
- 16-port has the same recording rate and display rate as 32-port.
- Specifications are subject to change without notice.
Connecting One GeoVision GV-900A Card
Connecting Two GeoVision GV-900A Cards
Connecting GeoVision GV-NET I/O Card with One GV-900A Card
Connecting GeoVision GV-NET I/O Card with Two GV-900A Cards
Note:
- GV-900A is currently not compatible with VIA series and ATI series chipset motherboards.
- 16-port has the same recording rate and display rate as 32-port.
- Specifications are subject to change without notice.
Model No. | Ordering Part No. | Description | SKU No. |
---|---|---|---|
GV900-16 | 310-G900A-160 | GV900- 16 CH DVI Type PCI Express A Card | 55-G900A-160 |
GV900-32 | 310-G900A-320 | GV900- 32 CH DVI Type PCI Express A Card | 55-G900A-320 |
