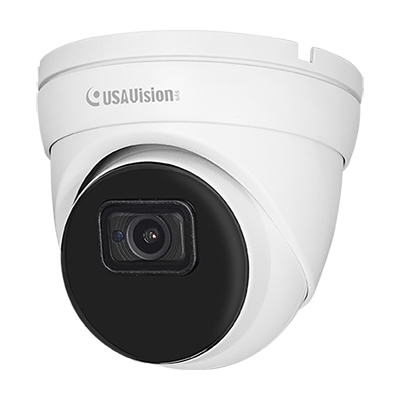

UA-R800F2

8MP H.265 Super Low Lux WDR Pro IR Eyeball Dome IP Camera

AI Deep-Learning IP Camera

UA-R800F2 is an outdoor network camera equipped with an automatic IR-cut filter. The camera supports H.265 video codec to achieve a better compression ratio while maintaining high-quality pictures at reduced network bandwidths. The IR LED for infrared illumination at night is up to 30 m (100 ft). The camera adheres to IP66 standards and can be powered through PoE. This camera also supports AI functions.

Empowered by deep learning algorithms, AI technology distinguishes humans and vehicles from other moving objects. Integrated with USAVision Standalone Network Video Recorder (UA-SNVR1620-P and UA-SNVRL810-P), it supports smart premier protection, real-time alert, event playback, and more.

Models

ModelUA-R800F2
IrisFixed
Focal Length (mm)2.8mm
Horizontal FOV110°
Maximum ApertureF/1.6
Image Format1/2.7"
  • High quality imaging with progressive scan CMOS
  • Triple streams from H.265, H.264
  • IR distance up to 30 m (100 ft)
  • Built-in microphone
  • Built-in micro SD card slot, up to 256 GB
  • Ingress protection (IP66)
  • DC 12V / PoE (IEEE 802.3af)
  • P2P function for GV-Eye app
  • ONVIF conformant
  • Intelligent analytics: Pedestrian, Vehicle, Face Detection

Note:
  • Product design and specifications are subject to change without notice.


Note:
  • Product design and specifications are subject to change without notice.
Model No Name Details
GV-Mount215-1 Wall Mount Bracket Dimensions: 155 x 75 x 132 mm (6.1" x 2.95" x 5.2")
Weight: 0.62 kg (1.37 lb)
UA-Mount505 Wall Box Mount Dimensions: Ø 100.5 x 56 mm (Ø 3.96" x 2.2")
Weight: 0.46 kg (1.01 lb)
GV-PA191 PoE Adapter GV-PA191 is a Power over Ethernet (PoE) adapter designed to provide power to the IP device through a single Ethernet cable.
GV-POE Switch GV-POE Switch is designed to provide power along with network connection to IP devices. It is available in various models with different numbers and types of ports.
Power Adapter Contact our sales representatives for the countries and areas supported.
  • UA-R800F2
  • Waterproof Rubber Set
  • Screw Kit
  • Drill Template Paster
  • Download Guide

Note:
  • Product design and specifications are subject to change without notice.

Note:
  • Product design and specifications are subject to change without notice.
Model No. Ordering Part No. Description SKU No.
UA-R800F2 750-R800F20-000 8MP,2.8mm,Super Low Lux,WDR IR,Eyeball Dome IP Camera,H.265 84-R800F20-UA00
