780-NRL08R500-2TB
UA-SNVRL810-P is an H.264/H.265 Linux-embedded Standalone Network Video Recorder which records video files directly to the internal hard drive. UA-SNVRL810 supports up to 8 channels of IP cameras for network surveillance.
It has 8-port built-in PoE (IEEE 802.3at), functioning to carry network and power to connected IP cameras.
UA-R500F2 is an outdoor network camera equipped with an automatic IR-cut filter. The camera supports H.265 video codec to achieve a better compression ratio while maintaining high-quality pictures at reduced network bandwidths.
The IR LED for infrared illumination at night is up to 30 m (100 ft). The camera adheres to IP66 standards and can be powered through PoE.
It has 8-port built-in PoE (IEEE 802.3at), functioning to carry network and power to connected IP cameras.
UA-R500F2 is an outdoor network camera equipped with an automatic IR-cut filter. The camera supports H.265 video codec to achieve a better compression ratio while maintaining high-quality pictures at reduced network bandwidths.
The IR LED for infrared illumination at night is up to 30 m (100 ft). The camera adheres to IP66 standards and can be powered through PoE.
- H.265 / H.264 video format
- Up to 8-ch IP camera input
- 1-ch HDMI, 1-ch VGA; HDMI at up to 4K (3840 x 2160)
- HDMI and VGA simultaneous output
- Up to 8 MP resolution recording
- 1 SATA HDD, up to 8 TB
- One-way audio
- P2P function for GV-Eye app
- ONVIF cameras supported
- High quality imaging with progressive scan CMOS
- Triple streams from H.265, H.264
- IR distance up to 30 m (100 ft)
- Built-in microphone
- Built-in micro SD card slot, up to 256 GB
- Ingress protection (IP66)
- DC 12V / PoE (IEEE 802.3af)
- P2P function for GV-Eye app
- ONVIF conformant
Note:
- Product design and specifications are subject to change without notice.
Note:
- Product design and specifications are subject to change without notice.
| Model No | Name | Details | |
|---|---|---|---|

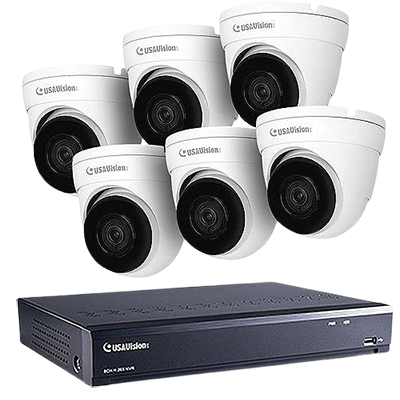

- UA-SNVRL810-P with preinstalled 2TB HDD x 1
- UA-R500F2 x 6
- Power Adapter (DC 48V, 3.75A, 180W)
- Power Cord
- USB Mouse
- Download Guide
Note:
- Product design and specifications are subject to change without notice.
Note:
- Product design and specifications are subject to change without notice.
| Model No. | Ordering Part No. | Description | SKU No. |
|---|---|---|---|
| UA-SNVRL810R500-2TB | 780-NRL08R500-2TB | SNVR Bundle kits, SNVR810-2TB + 6 units R500 | 88-NRL08R500-2TB |
