GV-Tower NVR System V2 RevB GV-Tower NVR System V2 RevB GV-Tower NVR System V2 RevB

GV-Tower NVR System V2 RevB

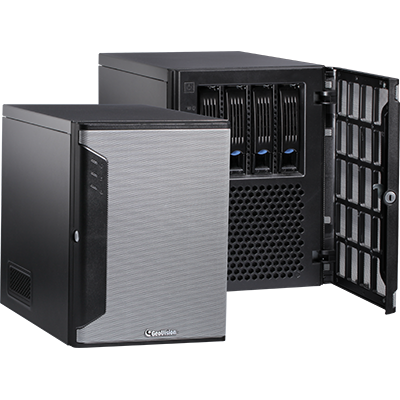

The GV-Tower NVR System V2 (Rev. B) comes with 4 hot-swap drive bays for the storage of 40 TB. This system has Intel Core i5 and features the latest upgraded NVR system and 64-bit Microsoft Windows Embedded OS. GV-Tower NVR System V2 (Rev. B) supports up to 32 channels of GV-IP devices or third-party IP devices (license required). You can also bring the surveillance on the HDTV with a HDMI cable. It is a towering, affordable, and efficient NVR system that you have ever seen.
  • Powered by Intel Core i5 Processor
  • 採用64-bit Windows Embedded作業系統
  • 支援GPU硬體解碼功能
  • 內建4組Hot swap硬碟抽取盒 (不含硬碟)
  • 最高可以支援40 TB的磁碟容量
  • 可以透過隱藏磁區快速還原系統
  • 雙Gigabit LAN網路連接埠
  • 2-monitor display with HDMI outputs
  • 支援第三方IP攝影機
  • Support for 32 channels (Pure IP solution)
  • 提供GV監控軟體完整功能 (即時監看,回放,錄影,備份,中控中心)
  • 影像分析
  • 魚眼攝影機影像處理功能
  • 自動與GV- IP攝影機連線
  • 支援H.265 / H.264 / MJPEG / MPEG4編碼
  • 硬碟狀態顯示燈
  • 支援智慧手機連線
  • 支援29國語言

Note:
  • Product design and specifications are subject to change without notice.


Note:
  • Product design and specifications are subject to change without notice.
Model No Name Details
GV-Data Capture V3 Box GV-Data Capture V3 Box can integrate the GV-Tower DVR/NVR System V2 Series to an electronic POS system, while GV-Data Capture V3E Box can establish such integration through LAN or Internet.
GV-Hub V2 An easy way for serial port extension. This hub can add 4 RS-232/RS-485 serial ports through the USB port of GV-Tower NVR System V2 (Rev. B).
GV-COM V3 透過 USB 連接至 GV-Tower DVR/NVR 系統後,將擴充 1 組 RS-485 串列通訊埠
GV-IO Box (4 路) GV-IO Box 4 提供 4 組輸入及 4 組 relay 輸出接點
GV-IO Box 4E GV-I/O Box 4E provides 4 inputs and 4 relay outputs. It provides both DC and AC output voltages, PoE, TCP / IP and RS-485 port for PC connection.
GV-IO Box (8 路) GV-IO Box 8 提供 8 組輸入及 8 組 relay 輸出接點
GV-IO Box (16 路) GV-IO Box 16 提供 16 組輸入及 16 組 relay 輸出接點
GV-Joystick V2 GV-Joystick V2支援控制連接於GV系統上之PTZ攝影機
GV-Keyboard V3 GV-Keyboard V3 為一鍵盤,透過此鍵盤可以快速的使用系統相關功能,也可以控制 PTZ 攝影機移動角度
GV‐IR Remote Control The GV‐IR Remote Control provides easy control of the GV‐Tower NVR System V2 (Rev. B).
  • GV-Tower NVR System V2 (Rev. B)
  • Keys for Hard Disk Safety Lock x 2
  • Hard Disk Drive Screw x 16
  • AC Power Cord
  • Download Guide

Note:
  • Product design and specifications are subject to change without notice.

Note:
  • Product design and specifications are subject to change without notice.
Model No. Ordering Part No. Description SKU No.
