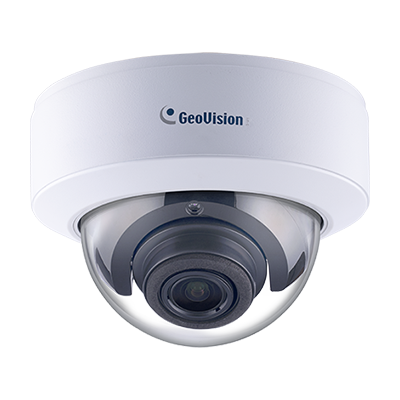

GV-GVD12810

12MP H.265 4.3x Zoom Super Low Lux WDR IR Vandal Proof IP Dome

AI Deep-Learning IP Camera

GV-GVD12810 is a 12 MP vandal proof IP dome camera, equipped with an automatic IR-cut filter and IR LEDs for day and night surveillance. The camera supports H.265 video codec to achieve a better compression ratio while maintaining high-quality pictures at reduced network bandwidth. GV-GVD12810 adheres to IP67 and IK10 standards and can be powered through PoE.

Empowered by deep learning algorithms, its AI technology distinguishes humans and vehicles from other moving objects. Integrated with GeoVision Video Management Software (GV-VMS), it supports AI perimeter protection, real-time alert, playback, and more.

Models

Model	GV-GVD12810
Iris	DC
Focal Length (mm)	2.8~12mm
Horizontal FOV	96°~46°
Maximum Aperture	F/1.4
Image Format	1/1.7"

AI 深度學習(DL): 高階智能防護 (人/車分類)
1/1.7"非交錯掃瞄CMOS sensor
Five streams from H.265, H.264 and MJPEG
Min. illumination at 0.006 lux
4000 x 3000解析度，最高30 fps
智慧型紅外線
紅外線有效距離50 m (165 ft)
日/夜切換功能 (內建移動式紅外線濾片)
Two-way audio capable
IP67防護等級
支援3軸角度調整 (平移/垂直/旋轉)
IK10防暴等級 (金屬機身部分)
Built-in microSD card slot (SD / SDHC / SDXC) for local storage
內建麥克風
支援DC 12V / PoE (IEEE 802.3af) 供電
AI analytics (Line Crossing, Region Entrance, Region Exiting, Region Intrusion, Target Counting, Heat Map, Loitering Detection, Illegal Parking Detection, Face Detection, Video Metadata)
支援影像強化技術 (Defog)
3D雜訊抑制
位移偵測
文字顯示
隱私遮罩
網頁介面支援 20 國語言
ONVIF (Profile G, S, T, M) conformant

Note:

Specifications are subject to change without notice.

Note:

Specifications are subject to change without notice.

Model No	Name	Details
GV-Mount211-6 GV-Mount510	Wall Mount Bracket Set		Dimensions: 199 x 139.3 x 140.6 mm (7.83" x 5.48" x 5.54") Weight: 0.56 kg (1.23 lb) Dimensions: 139.3 x 171.6 x 42 mm (5.48" x 6.76" x 1.65") Weight: 0.36 kg (0.79 lb)
GV-Mount211-13	Wall Mount Bracket		Dimensions: 266 x 174.1 x 142.5 mm (10.47" x 6.85" x 5.61") Weight: 1.14 kg (2.51 lb)
GV-Mount314	Corner Mount Bracket		Dimensions: 215 x 121.4 x 215 mm (8.46 x 4.78 x 8.46 in) Weight: 2.05 kg (4.52 lb)
GV-Mount470	Pole Mount Bracket		Dimensions: 163.3 x 54.5 x 215 mm (6.43" x 2.15" x 8.46") Weight: 1.10 kg (2.43 lb)
GV-Mount510	Junction Box		Dimensions: 139.3 x 171.6 x 42 mm (5.48" x 6.76" x 1.65") Weight: 0.36 kg (0.79 lb)
GV-Mount925	In-Ceiling Mounting Bracket		Dimensions: Ø 233 x 80.5 mm (Ø 9.17" x 3.17") Weight: 0.704 kg (1.55 lb)
GV-Mount927	Power Box Mount Bracket		Dimensions: Ø 145 x 11.2 mm (Ø 5.71 x 0.44 in) Weight: 0.2 kg (0.44 lb) *for standard US single and double gang boxes only
GV-PA191	PoE供電器		GV-PA191 PoE供電器透過網路線，可以同時提供攝影機網路及電力
GV-PA301	Gigabit PoE Adapter		GV-PA301 is a Gigabit Power over Ethernet (PoE) adapter.
GV-POE Switch		提供多種不同數量的PoE供選擇
變壓器		提供電源供應
