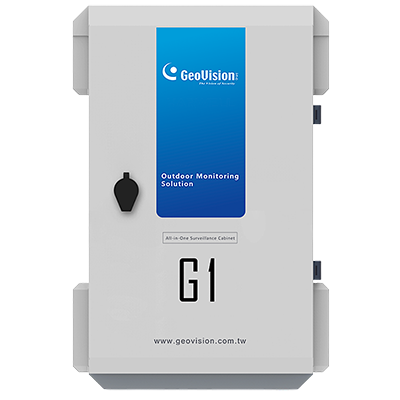

GV-G1 Power Box
GV-G1 Power Box is a rugged, all-weather outdoor electrical equipment enclosure designed for reliable operation in harsh environments. It features rainproof and dustproof protection, ventilation and heat dissipation, UV and corrosion resistance, and anti-theft protection, making it suitable for high-humidity areas, seaside locations, and industrial environments.

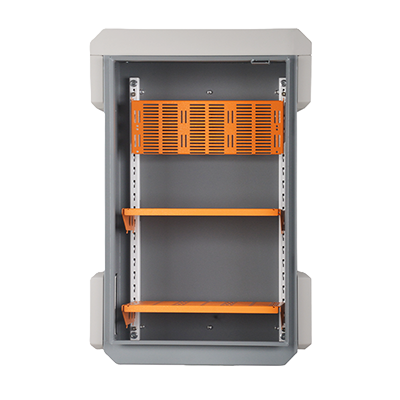

Its pole-mount design ensures secure and stable outdoor installation, while the modular internal structure allows electrical equipment to be installed vertically or horizontally, offering flexible deployment options for diverse site requirements.
Its pole-mount design ensures secure and stable outdoor installation, while the modular internal structure allows electrical equipment to be installed vertically or horizontally, offering flexible deployment options for diverse site requirements.
- Integrated design for simplified installation without manual wiring
- Reinforced, seamless construction for strong durability and impact resistance
- IP66 rating for durability and weather resistance
- Optimized airflow for efficient heat dissipation during long-term outdoor operation
- Pole-mount design for secure and stable outdoor installation
- Support for GV-IP cameras, mounts, and speakers for flexible installation
Note:
- Specifications are subject to change without notice.
Note:
- Specifications are subject to change without notice.
| Số model | Tên gọi | Chi tiết | |
|---|---|---|---|
| GV-Mount211-1 | Wall Mount and Junction Box |
|
Dimensions: 235 x 126.2 x 128.5 mm (9.3 x 5.0 x 5.1") Weight: 0.84 kg (1.85 lb) |
| GV-Mount211-4 | Wall Mount Bracket |
|
Dimensions: 129.5 x 155 x 74.5 mm (5.10" x 6.10" x 2.93") Weight: 0.527 kg (1.16 lb) |
| GV-Mount211-12 | Wall Mount and Junction Box |
|
Dimensions: Φ229.3 x 126.7 x 126.4 mm (9.0” x 5.0” x 5.0”) Weight: 1.02 kg (2.25 lb) |
| GV-Mount211-16 | Wall Mount and Junction Box |
|
Dimensions: 231.4 x 125.6 x 128.8 mm (9.1 x 4.9 x 5.1") Weight: 0.88 kg (1.94 lb) |
| GV-Mount503-1 | Wall Mount Bracket |
|
Dimensions: 124.9 x 127.9 x 57 mm (4.9 x 5.0 x 2.2") Weight: 0.58 kg (1.28 lb) |
| GV-Mount706 | Adapter Ring |
|
Central Tube: Φ 58 x 60 mm (Φ 2.28 x 2.36 in) Weight: 0.3 kg (0.66 lb) Brass Nut: 60 mm across flats x 5 mm thick (2.36 in across flats x 0.20 in thick) |
- GV-G1 Power Box
- Pole Mount Set x 1 (includes Universal Clamp × 2, Stainless Steel Cable Tie × 2)
- Quick Release Panel (2U) x 1
- Quick Release Panel (3U) x 2
- DIN Rail x 1
- Industrial Triangle Key x 1
- Door Sensor Baffle x 1
- Screw (M3 x 6) x 4
- Screw (M4 x 12) x 20
- Screw (M4 x 25) & Nut (M4) x 16 sets
- Screw (M3 x 16) & Nut (M3) x 4 sets
- Screw (M8 x 12) & Nut (M8) x 2 sets
- Straight Waterproof Nylon Corrugated Conduit Fitting (M32 x 1.5) x 2
- Straight Waterproof Nylon Corrugated Conduit Fitting (PF 3/4) x 2
- 90° Waterproof Nylon Corrugated Conduit Fitting (M32 x 1.5) x 2
- 90° Waterproof Nylon Cable Gland (M16 x 1.5) x 2
Note:
- Specifications are subject to change without notice.
Note:
- Specifications are subject to change without notice.
