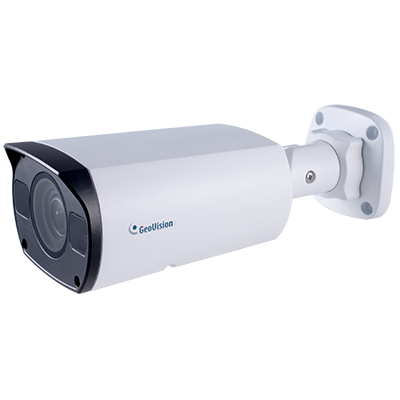

GV-TBL4710
4MP H.265 4.3x Zoom Super Low Lux WDR Pro IR Bullet IP Camera
The Bullet IP Camera is an outdoor, fixed, network camera equipped with an automatic IR-cut filter and IR LEDs for day and night surveillance. The camera supports H.265 video codec to achieve better compression ratio while maintaining high quality pictures at reduced network bandwidths. GV-TBL4710 adheres to IK10 and IP67 standards, and can be powered through PoE.
Models
| Model | GV-TBL4710 |
| Iris | Fixed |
| Focal Length (mm) | 2.8~12mm |
| Horizontal FOV | 27°~91° |
| Maximum Aperture | F/1.4 |
| Image Format | 1/3" |
- 1/3" progressive scan super low lux CMOS
- Min. illumination at 0.005 lux
- Triple streams from H.265, H.264 or MJPEG
- Up to 20 fps at 2592 x 1520, 25 fps at 2560 x 1440, 30 fps at 2048 x 1520
- Motorized varifocal lens for remote focus / zoom adjustment
- Intelligent IR
- IR distance up to 30 m (100 ft)
- Day and Night function (with removable IR-cut filter)
- Vandal resistance (IK10 for metal casing)
- Ingress protection (IP67)
- Built-in micro SD card slot (SD / SDHC / SDXC / UHS-I, Class 10) for local storage
- Two-way audio
- DC 12V / PoE (IEEE 802.3af)
- Wide Dynamic Range Pro (WDR Pro)
- Defog
- 3D noise reduction
- Tampering alarm
- Motion detection
- Text overlay
- Privacy mask
- ONVIF (Profile G, S, T) conformant
Note:
- Do not use clothes or any ordinary material to clean the camera cover since they may result in scratches.
- Specifications are subject to change without notice.
Note:
- Do not use clothes or any ordinary material to clean the camera cover since they may result in scratches.
- Specifications are subject to change without notice.
| Model No | Name | Details | |
|---|---|---|---|
| GV-Mount300-2 | Convex Corner Mount |
|
Dimensions: 137 x 233 x 160 mm (5.4" x 9.17" x 6.3") Weight: 1.65 kg (3.64 lb) |
| GV-Mount310-2 | Concave Corner Mount |
|
Dimensions: 111.2 x 369.9 x 210 mm (2.6" x 11.4" x 6.6") Weight: 1.65 kg (3.64 lb) |
| GV-Mount420 | Pole Mount Bracket |
|
Dimensions:Φ120 x 120 x 53.4 mm (Φ4.7" x 4.7" x 2.1") Weight: 0.45 kg (0.99 lb) Steel Strap Diameter: Φ 67 ~ 127 mm (Φ2.6"~ 5") *must be used with GV-Mount503 |
| GV-Mount503 | Wall Mount Bracket |
|
Dimensions: 125 x 125 x 55 mm (4.9" x 4.9" x 2.2") Weight: 0.74 kg (1.63 lb) |
| GV-PA191 PoE Adapter | Power over Ethernet (PoE) Adapter |
|
The GV-PA191 is a Power over Ethernet (PoE) adapter designed to provide power to the IP device through a single Ethernet cable. |
| GV-POE Switch | The GV-POE Switch is designed to provide power along with network connection for IP devices. The GV-POE Switch is available in various models with different numbers and types of ports. | ||
| Power Adapter | Contact our sales representatives for the countries and areas supported. | ||
- Bullet IP Camera
- Waterproof Rubber Set
- Screw Kit
- Drill Template Paster
- Download Guide
- Warranty Card
Note:
- Do not use clothes or any ordinary material to clean the camera cover since they may result in scratches.
- Specifications are subject to change without notice.
Note:
- Do not use clothes or any ordinary material to clean the camera cover since they may result in scratches.
- Specifications are subject to change without notice.
| Model No. | Ordering Part No. | Description | SKU No. |
|---|---|---|---|
| GV-TBL4710 | 125-TBL4710-000 | 84-TBL4710-0010 |
