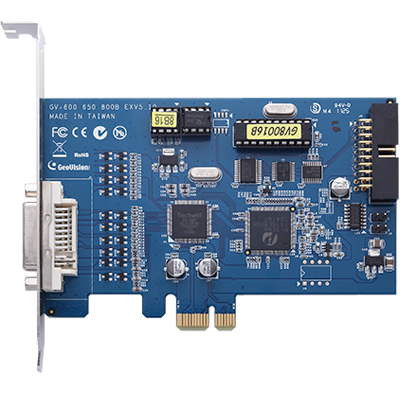

GV-650B Video Capture Card

GV-650B Card provides up to 16 video channels and 4 audio channels, recording up to 60 / 50 fps (NTSC / PAL) in total with H.264 software compression.

Note:

GV-600B is currently not compatible with VIA series and ATI series chipset motherboards.
8-port has the same recording rate and display rate as 16-port.
Specifications are subject to change without notice.

Note:

GV-600B is currently not compatible with VIA series and ATI series chipset motherboards.
8-port has the same recording rate and display rate as 16-port.
Specifications are subject to change without notice.

Model No	Name	Details

GV-650B Card x 1
1-16 Cams with 4-Port Audio DVI-Type Cable x 1 / 1-8 Cams with 4-Port Audio DVI-Type Cable x 1 / 1-4 Cams with 4-Port Audio DVI-Type Cable x 1
Hardware Watchdog Jumper Wire x 1

Note: The 1-16 Cams with 4-Port Audio DVI-Type cable is supplied with GV-650B card with 16 video inputs, the 1-8 Cams with 4-Port Audio DVI-Type cable is supplied with GV-650B card with 8 video inputs, while the 1-4 Cams with 4-Port Audio DVI-Type cable is supplied with GV-650B card with 4 video inputs.

Note:

GV-600B is currently not compatible with VIA series and ATI series chipset motherboards.
8-port has the same recording rate and display rate as 16-port.
Specifications are subject to change without notice.

Connecting One GeoVision GV-600B / 650B / 800B Card

Connecting Two GeoVision GV-600B / 650B / 800B Cards

Connecting GeoVision GV-NET I/O Card with One GV-600B / 650B / 800B Card

Connecting GeoVision GV-NET I/O Card with Two GV-600B / 650B / 800B Cards

Note:

GV-600B is currently not compatible with VIA series and ATI series chipset motherboards.
8-port has the same recording rate and display rate as 16-port.
Specifications are subject to change without notice.

Model No.	Ordering Part No.	Description	SKU No.
GV650-8	310-G65EX-080	GV650- 8 CH DVI Type PCI Express B Card	55-G65EX-080
GV650-16	310-G65EX-160	GV650- 16 CH DVI Type PCI Express B Card	55-G65EX-160
