GV-Mini FR
Mini Face Recognition Panel with Built-in Reader and IPS Touch Screen
The GV-Mini FR panel is a sleek, face-recognition-based access reader featuring a 3.5" LCD touchscreen that displays 320 × 480 HD images. Designed for seamless integration with the GV-ASManager access control system, it supports dual authentication modes—granting or denying access via face recognition or access card verification.

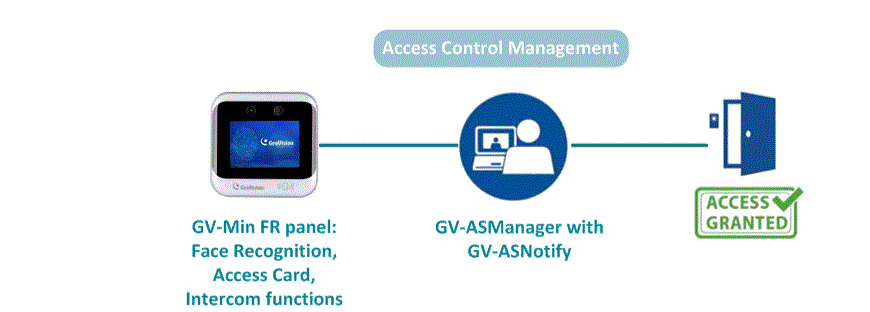

When its built-in intercom functionality, the panel enables real-time communication between visitors and the GV-ASManager operator. Upon receiving a notification, the operator can engage in two-way audio and remotely unlock the door, enhancing both security and convenience.
When its built-in intercom functionality, the panel enables real-time communication between visitors and the GV-ASManager operator. Upon receiving a notification, the operator can engage in two-way audio and remotely unlock the door, enhancing both security and convenience.
- 3.5" IPS touch screen with 320 x 480 HD display
- Face recognition distance of up to 1 m (3.28 ft)
- Built-in RGB & IR cameras
- 3,000 face image capacity
- 3,000 access card capacity
- 9,000 event log capacity
- Built-in 13.56 MHz, ISO 14443A reader
- Built-in LED light for nighttime and low-light face recognition
- DC 12V / PoE (IEEE 802.af)
- Liveness detection (face spoofing detection)
- Masked face recognition
- Four access modes for local authentication (standalone mode): Face Only, Face and Password, Face and Card, Face or Card
- Intercom support for operator—vistor interation
- CE, FCC compliant
Note:
- All specifications are subject to change without notice.
Note:
- All specifications are subject to change without notice.
| Model No | Name | Details | |
|---|---|---|---|
| Access Card / Fob / Sticker / Tag | GeoVision offers a wide range of access cards, fobs, stickers, and tags to meet your needs. Please refer to the product datasheet for information on compatible frequencies and accessories. | ||
| GV-FWC | GV-FWC integrates GeoVision face-recognition-based cameras, software and readers into access control systems by sending access card data, paired to Face IDs, to controllers either through TCP/IP or Wiegand connection. | ||
| Power Adapter | Contact our sales representatives for the countries and areas supported. | ||
- GV-Mini FR Panel
- Screw Kit
- Drill Template Paster
- Bracket
- Power and Network Cable
- Wiring Cable
- Download Guide
Note:
- All specifications are subject to change without notice.
Note:
- All specifications are subject to change without notice.
| Model No. | Ordering Part No. | Description | SKU No. |
|---|
