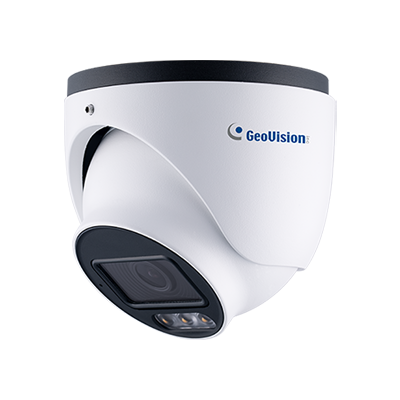

GV-GEBN4800

4MP H.265 Full Color AI-ISP Warm LED WDR Pro Eyeball Dome IP Camera

AI Deep-Learning IP Camera

The Bullet IP Camera is an outdoor, network camera equipped with AI-ISP and smart warm LEDs for full color surveillance. The camera supports H.265 video codec to achieve better compression ratio while maintaining high quality pictures at reduced network bandwidths. GV-GBLN4800 adheres to IP67 and IK10 standards, and can be powered through PoE.

Empowered by deep learning algorithms, AI technology distinguishes human and vehicles from other moving objects. Integrated with GeoVision Video Management Software (VMS), it supports AI perimeter protection, real time alert, events playback and more.

The AI-ISP (Artificial Intelligence Image Signal Processor) enhances image quality in low-light scenes by delivering more detail, reducing noise, and minimizing smearing issues. However, it may not perform as expected in completely dark environments. For optimal results, outdoor installation is recommended, where natural ambient light such as moonlight is available.

Models

Model	GV-GEBN4800-2F	GV-GEBN4800-3F
Iris	Fixed	Fixed
Focal Length (mm)	2.8mm	3.6mm
Horizontal FOV	112°	96°
Maximum Aperture	F/1.0	F/1.0
Image Format	1/1.79"	1/1.79"

AI deep learning: AI Perimeter Protection & Classification (Human, Vehicle)
1/1.79" progressive scan CMOS sensor
Triple streams from H.265, H.264 or MJPEG
Min. illumination at 0.0001 lux
Up to 30 fps at 2688 x 1520
AI-ISP for superior noise reduction and vivid color images, day and night
Smart Warm LED distance up to 30 m (100 ft)
Wide Dynamic Range Pro (WDR Pro)
Ingress protection (IP67)
Vandal resistance (IK10 for metal casing)
Built-in microphone
Built-in microSD card slot (SD / SDHC / SDXC) for local storage
3-axis mechanism (pan / tilt / rotate)
DC 12V / PoE (IEEE 802.3af)
Defog
3D noise reduction
Smart settings (Line Crossing, Region Entrance, Region Exiting, Target Counting, Region Intrusion, Face Detection)
Motion detection
Text overlay
Privacy mask
21 languages supported
ONVIF (Profile G, S, T, M) conformant

Note:

All specifications are subject to change without notice.

Note:

All specifications are subject to change without notice.

Model No	Name	Details
GV-Mount211-4	Wall Mount Bracket		Dimensions: 129.5 x 155 x 74.5 mm (5.10" x 6.10" x 2.93") Weight: 0.527 kg (1.16 lb)
GV-Mount211-6	Wall Mount Bracket		Dimensions: 199 x 139.3 x 140.6 mm (7.83" x 5.48" x 5.54") Weight: 0.56 kg (1.23 lb) *must be used with Mount506
GV-Mount470	Pole Mount Bracket		Dimensions: 163.3 x 54.5 x 215 mm (6.43" x 2.15" x 8.46") Weight: 1.10 kg (2.43 lb) *must be used with Mount211-6 or 506
GV-Mount506	Junction Box		Dimensions: Ø 139.3 x 171.6 x 50 mm (Ø 5.48" x 6.76" x 1.97") Weight: 0.51 kg (1.13 lb)
GV-PA191	PoE Adapter		GV-PA191 is a Power over Ethernet (PoE) adapter designed to provide power to the IP device through a single Ethernet cable.
GV-PA301	Gigabit PoE Adapter		GV-PA301 is a Gigabit Power over Ethernet (PoE) adapter.
GV-POE Switch		GV-POE Switch is designed to provide power along with network connection to IP devices. It is available in various models with different numbers and types of ports.
Power Adapter		Contact our sales representatives for the countries and areas supported.
