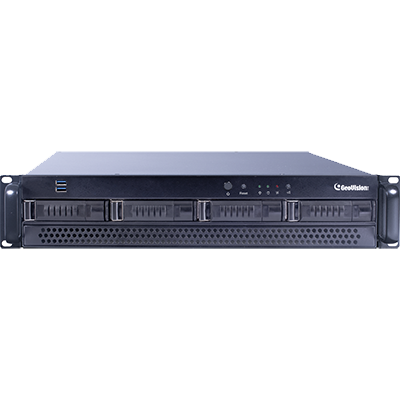

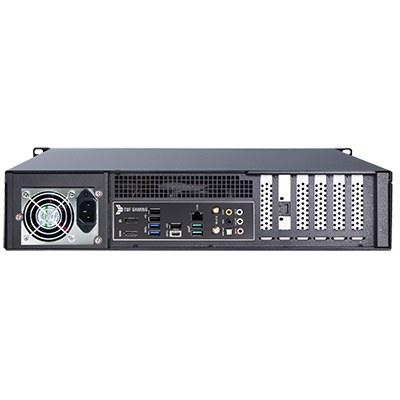

GV-Hot Swap System V5 RevF-2U,4-Bay
GV-Hot Swap System V5 (Rev. F) features a powerful data storage capacity. It comes with hot-swappable SATA mobile racks in sizes of of 4U (20-bay), 3U (16 / 8-bay) and 2U (4-bay). Depending on HDD capacity, GV-Hot Swap System V5 (Rev. F) can store up to 200 terabytes of recorded data.
GeoVision Surveillance Software empowers GV-Hot Swap System V5 (Rev. F) with a maximum of 64 audio and video channels for GV-VMS, and 32 audio and video channels for GV-NVR. By extending the compatibility to the third-party IP devices (license required), GV-VMS / NVR provides a pure IP solution to GV-Hot Swap System V5 (Rev. F).
Software Supported: GV-VMS / GV-NVR
GeoVision Surveillance Software empowers GV-Hot Swap System V5 (Rev. F) with a maximum of 64 audio and video channels for GV-VMS, and 32 audio and video channels for GV-NVR. By extending the compatibility to the third-party IP devices (license required), GV-VMS / NVR provides a pure IP solution to GV-Hot Swap System V5 (Rev. F).
Software Supported: GV-VMS / GV-NVR
- Powered by Intel Core i7 Processor
- 64-bit Windows 10 IoT Enterprise
- H.265 CPU and GPU decoding
- RAM 8 GB (for GV-NVR) / 16 GB (for GV-VMS)
- 4U (20-bay), 3U (16 / 8-bay), or 2U (4-bay) hot-swap SATA HDDs for data storage
- Maximum storage capacity up to 200 TB (4U 20-Bay) / 160 TB (3U 16-Bay) / 80 TB (3U 8-Bay) / 40 TB (2U 4-Bay)
- Dual Gigabit LAN ports: 2.5 Gigabit, 1 Gigabit
- Dual-monitor display
- Hot-swap status LED panel
- Compatible with full selections of GeoVision accessories
- 64-channel GV-VMS / 32-channel GV-NVR (pure IP surveillance)
Note:
- Specifications are subject to change without notice.
Note:
- Specifications are subject to change without notice.
| Model No | Name | Details | |
|---|---|---|---|
| GV-COM V3 | GV-COM V3 adds 1 RS-485 port to your computer through a USB connector. | ||
| GV-IO Box Series | GV-IO Box series provides 4 / 8 / 16 inputs and relay outputs, and supports both DC and AC output voltages, with optional support for Ethernet module and 4E additionally supporting PoE connection. | ||
| GV-Joystick V2 |
|
GV-Joystick V2 facilitates the PTZ camera control. It can be either plugged into the GV-Hot Swap DVR/NVR V5 for independent use or connected to GV-Keyboard to empower the operation. | |
| GV-Keyboard V3 | GV-Keyboard V3 is used to program and operate the GeoVision surveillance system. You can also connect PTZ cameras directly to the keyboard for PTZ control. | ||
| GV-IR Remote Control |
|
GV-IR Remote Control provides easy control of the GeoVision surveillance system. | |
- GV-Hot Swap System V5 x 1
- AC Power Cord x 1
- Self-Stick Rubber Pad x 4
- Documents Download Guide
- Warranty Card
Note:
- Specifications are subject to change without notice.
Note:
- Specifications are subject to change without notice.
- GV-Hot Swap System V5 x 1
- AC Power Cord x 1
- Self-Stick Rubber Pad x 4
- Documents Download Guide
- Warranty Card
Note:
- Specifications are subject to change without notice.
