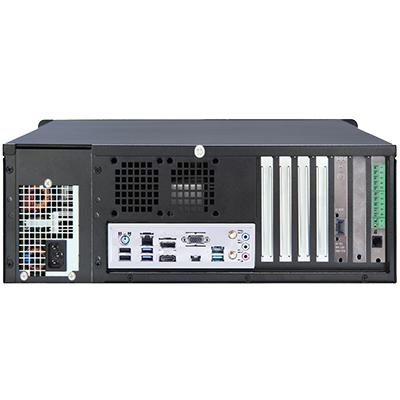

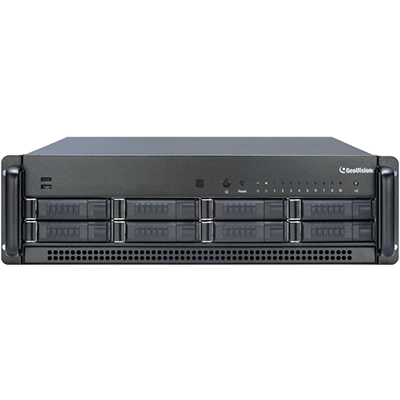

GV-Hot Swap NVR System V5 RevE-3U,16-Bay,8-Bay

The GV-Hot Swap NVR System V5 features a powerful data storage capacity. It comes with a selection of 4U (20 -bay) or 3U (16 / 8-bay) and hot-swappable SATA mobile racks. Depending on HDD size, the GV-Hot Swap NVR System V5 can store up to 200 terabytes of recorded data. Support for hot-swapping makes data storage and management more convenient.

GeoVision Surveillance System empowers the GV-Hot Swap NVR System V5 with a maximum of 32 audio and video channels. Its networking capability makes remote access and control of the system possible. Additionally, its compatibility with other GeoVision accessories can cater to any kind of needs or budgets. By extending the compatibility to the third-party IP devices (license required), GV-NVR provides a pure IP solution to GV-Hot Swap NVR System V5.
  • Powered by Intel Core i7 Processor
  • 64-bit Windows 10 IoT Enterprise
  • Support H.265 CPU and GPU decoding
  • Support 32-channel GV-NVR (pure IP surveillance)
  • Three-monitor display
  • Maximum storage capacity up to 200 TB (4U 20-Bay) / 160 TB (3U 16-Bay) / 80 TB (3U 8-Bay)
  • Hot-swap status LED panel
  • Dual Gigabit LAN ports
  • 4U (20-bay) or 3U (16 / 8-bay) hot-swap SATA HDDs for data storage
  • Built-in 4 inputs and 4 outputs
  • Extreme performance for GV-NVR operation
  • Pre-installed SSD for recovery
  • Supported RAID type:0,1,3,5,6,10,00,30,50,60,100 Single Disk or JBOD (optional)
  • Redundant power supply (optional)
  • Compatible with full selections of GeoVision accessories
  • CE, FCC, LVD compliant

Note:
  • Specifications are subject to change without notice.


Note:
  • Specifications are subject to change without notice.
Model No Name Details
GV-IO 12-In Card With 12-point digital inputs, this card can expand the GV-Hot Swap DVR/NVR V5 up to 16 sensor inputs.
GV-IO 12-Out Card With 12-point relay outputs, this card can expand the GV-Hot Swap DVR/NVR V5 up to 16 alarm outputs.
GV-Data Capture GV‐Data Capture unit allows the integration of POS systems and the GeoVision surveillance system through cable or network connection.
GV-COM V3 This unit can add 1 RS-485 port to your computer through a USB connector.
GV-IO Box Series GV-IO Box series provides 4 / 8 / 16 inputs and relay outputs and support both DC and AC output voltages, with optional support for Ethernet module and 4E additionally supporting PoE connection.
GV-Joystick V2 GV-Joystick V2 facilitates PTZ camera control. It can be either plugged into the GeoVision surveillance system for independent use or connected to GV-Keyboard to empower the operation.
GV-Keyboard V3 GV-Keyboard V3 is designed to program and operate the GeoVision surveillance system, and can be connected with PTZ cameras directly for PTZ control.
GV-IR Remote Control GV-IR Remote Control provides easy control of the GeoVision surveillance system.
Gigabit Network Card Gigabit Network Card is provided with the two options of 1-Gb single port card and 2-port 10-Gb (20 Gb) card. The supported number of network cards varies based on models and the combination of RAID card. Contact our sales representatives for more information.
RAID Card The supported RAID types include 0,1,3,5,6,10,00,30,50,60,100 Single Disk or JBOD.
Redundant Power Supply The Redundant Power Supply comes with 2 hot-swap modules for 3U models and for 4U models. When 1 module is down, the other module can still supply full power to the system.
- 3U models: 600 W 1+1 mode; 100 ~ 240 V, 47-63 Hz
- 4U models: 800 W 1+1 mode; 90 ~ 264V, 47-63 Hz
  • GV-Hot Swap NVR System V5 x 1
  • AC Power Cord x 1
  • Self-Stick Rubber Pad x 4
  • Documents Download Guide
  • Warranty Card​

Note:
  • Specifications are subject to change without notice.

Note:
  • Specifications are subject to change without notice.
