GV-GBLP8900
8MP Dual-Lens Panoramic H.265 Super Low Lux WDR Full Color Warm LED IR Bullet IP Camera
Cloud AI Deep-Learning IP Camera

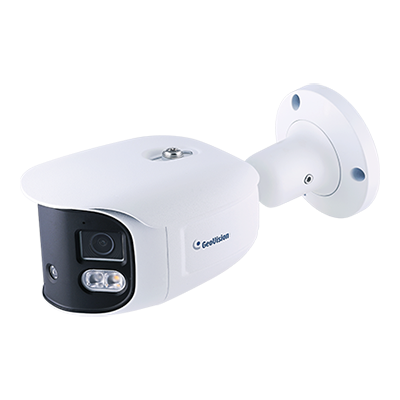

GV-GBLP8900 is a 180° dual-lens splicing bullet IP camera, equipped with smart warm LEDs for full color surveillance during nighttime. The camera supports H.265 video codec to achieve a better compression ratio while maintaining high-quality pictures at reduced network bandwidths. GV-GBLP8900 adheres to the IP67 standard and can be powered through PoE.
Empowered by deep learning algorithms, its AI technology distinguishes humans and vehicles from other moving objects. When integrated with GeoVision Video Management Software (VMS), it supports AI perimeter protection, real-time alert, event playback, and more. By connecting the camera to the cloud-based data center and video surveillance solution, GV-Cloud VMS, thousands of on-site videos, alarm devices, and AI events can be monitored and managed from a single platform.
GV-GBLP8900 is a 180° dual-lens splicing bullet IP camera, equipped with smart warm LEDs for full color surveillance during nighttime. The camera supports H.265 video codec to achieve a better compression ratio while maintaining high-quality pictures at reduced network bandwidths. GV-GBLP8900 adheres to the IP67 standard and can be powered through PoE.
Empowered by deep learning algorithms, its AI technology distinguishes humans and vehicles from other moving objects. When integrated with GeoVision Video Management Software (VMS), it supports AI perimeter protection, real-time alert, event playback, and more. By connecting the camera to the cloud-based data center and video surveillance solution, GV-Cloud VMS, thousands of on-site videos, alarm devices, and AI events can be monitored and managed from a single platform.
Models
| Model | GV-GBLP8900 |
| Iris | Fixed |
| Focal Length (mm) | 2.8mm |
| Horizontal FOV | 180° |
| Maximum Aperture | F/1.6 |
| Image Format | 1/2.7" |
- GV-Cloud Service
- AI deep learning: AI Perimeter Protection & Classification (Human, Vehicle)
- 180° panoramic splicing view
- 1/2.7" progressive scan CMOS sensor
- Triple streams from H.265, H.264 or MJPEG
- Min. illumination at 0.0032 lux
- Up to 30 fps at 4640 x 1760
- Intelligent IR
- Smart Warm LED distance up to 20 m (65 ft)
- IR distance up to 30 m (100 ft)
- Day and Night function (with removable IR-cut filter)
- Ingress protection (IP67)
- DC 12V / PoE (IEEE 802.3af)
- Built-in microSD card slot (SD / SDHC / SDXC) for local storage
- Built-in microphone and speaker
- Two-way audio capable
- Defog
- 3D noise reduction
- GV-Center V2 connection
- AI analytics (Line Crossing, Region Entrance, Region Exiting, Region Intrusion, Target Counting, Heat Map, Loitering Detection, Illegal Parking Detection, Face Detection, Video Metadata)
- Active Deterrence: alarm sound and warm LED light triggered on AI detection events
- Smart lighting switch between IR LED (for motion detection) and Warm LED (for people, vehicle and motorcycle detection)
- Motion detection
- Text overlay
- Privacy mask
- 20 languages supported
- ONVIF (Profile G, S, T, M) conformant
Note:
- When connecting to GV-Cloud VMS, avoid connecting to other GV-Software at the same time.
- Industrial-grade microSD cards are recommended to avoid event recording failures.
- Specifications are subject to change without notice.
Note:
- When connecting to GV-Cloud VMS, avoid connecting to other GV-Software at the same time.
- Industrial-grade microSD cards are recommended to avoid event recording failures.
- Specifications are subject to change without notice.
| Model No | Name | Details | |
|---|---|---|---|
| GV-Mount314 | Corner Mount Bracket |
|
Dimensions: 215 x 121.4 x 215 mm (8.46 x 4.78 x 8.46 in) Weight: 2.05 kg (4.52 lb) |
| GV-Mount470 | Pole Mount Bracket |
|
Dimensions: 163.3 x 54.5 x 215 mm (6.43" x 2.15" x 8.46") Weight: 1.10 kg (2.43 lb) |
| GV-Mount506-1 | Junction Box |
|
Dimensions: 117.9 x 143.3 x 47 mm (4.64" x 5.64" x 1.85") Weight: 0.38 kg (0.84 lb) |
| GV-PA191 | PoE Adapter |
|
GV-PA191 is a Power over Ethernet (PoE) adapter designed to provide power to the IP device through a single Ethernet cable. |
| GV-PA301 | Gigabit PoE Adapter |
|
GV-PA301 is a Gigabit Power over Ethernet (PoE) adapter. |
| GV-POE Switch | GV-POE Switch is designed to provide power along with network connection to IP devices. It is available in various models with different numbers and types of ports. | ||
| Power Adapter | Contact our sales representatives for the countries and areas supported. | ||
- GV-GBLP8900 Bullet Camera
- Waterproof Rubber Set
- Screw Kit
- Drill Template Paster
- Download Guide
Note:
- When connecting to GV-Cloud VMS, avoid connecting to other GV-Software at the same time.
- Industrial-grade microSD cards are recommended to avoid event recording failures.
- Specifications are subject to change without notice.
GV-Cloud Camera: Connecting GV-GEBF4911/GDR4900/GEB4900 to GV-Cloud VMS
Standard IR vs. Full Color
Note:
- When connecting to GV-Cloud VMS, avoid connecting to other GV-Software at the same time.
- Industrial-grade microSD cards are recommended to avoid event recording failures.
- Specifications are subject to change without notice.
| Model No. | Ordering Part No. | Description | SKU No. |
|---|
