GV-Control Center System

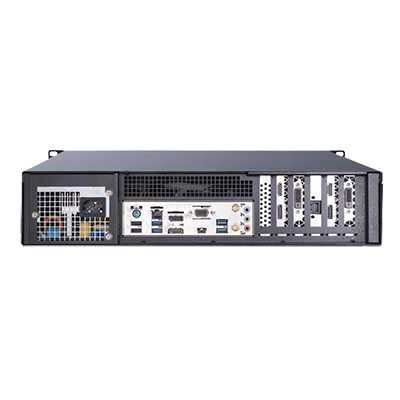

GV-Control Center System, equipped with Intel Core i7 Processor, is designed to enhance the monitoring performance for GV-Control Center in video surveillance. GV-Control Center System enables the central operators to manage multiple GeoVision surveillance and video management systems, while maintaining quality display and smooth operation. GV-Control Center System comes with 9 graphics outputs (HDMI, DVI-D, D-Sub, and DisplayPort) to support up to 9 monitors simultaneously. Up to two 3.5" HDD can be installed in the system to meet the storage demand.
  • Powered by Intel Core i7 Processor and NVIDIA GeForce Graphic Cards
  • 64-bit Windows 10 IoT Enterprise
  • Support for GPU Decoding
  • 9 graphics outputs (DisplayPort, HDMI, DVI-D, and D-Sub) to support up to 9 monitors simultaneously
  • Dual Gigabit LAN ports
  • Pre-installed SSD for recovery
  • 2U size (428 x 90 x 430 mm / 16.86 x 3.55 x 16.93 in)

Note:
  • Specifications are subject to change without notice.


Note:
  • Specifications are subject to change without notice.
Model No Name Details
GV-IO Box Series GV-IO Box series provides 4 / 8 / 16 inputs and relay outputs, and supports both DC and AC output voltages, with optional support for Ethernet module and 4E additionally supporting PoE connection.
GV-Joystick V2 GV-Joystick V2 facilitates the PTZ camera control. It can be either plugged into the GV-Hot Swap DVR/NVR V5 for independent use or connected to GV-Keyboard to empower the operation.
GV-Keyboard V3 The GV-Keyboard V3 is designed to program and operate GV-System and GV-VMS, and it can also be connected with PTZ cameras directly for PTZ control.
  • GV-Control Center System
  • Power Cord (by regions)
  • Screw Kit
  • Download Guide
  • Warranty Card​

Note:
  • Specifications are subject to change without notice.

Note:
  • Specifications are subject to change without notice.
Model No. Ordering Part No. Description SKU No.
