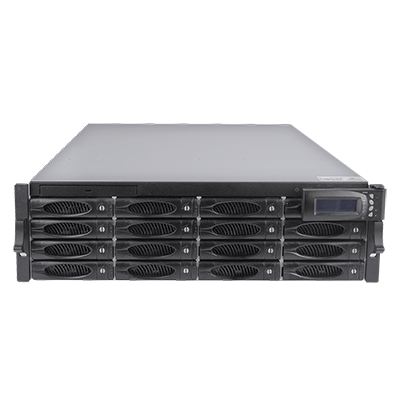

GV-Storage System V3-3U,16-Bay GV-Storage System V3-3U,16-Bay

GV-Storage System V3-3U,16-Bay

Large Storage Capacity
GV-Storage System V3, an IP SAN storage system, is a high-performance RAID storage system based on the latest iSCSI technology for users looking for a cost-effective and shared storage solution over the network. Compared to the desktop PC and consumer NAS system which only allow for 2 ~ 8 hard disks for data storage, GV-Storage System V3 is equipped with 16 hard disk drives, storage capacity up to 160 TB (with 10 TB HDD). GV-Storage System V3 can increase storage up to 256 hard disks with 2560 TB through  GV-Expansion Systems V3.

High Availability
GV-Storage System V3 has fully redundant components including power supplies, fan modules, and SAS JBOD expansion ports linked to GV-Expansion System V3. All of these components are hot-swappable to create a high availability platform and provide non-stop services.

Compatibility with GeoVision Surveillance Systems
GV-Storage System V3 is compatible with GeoVision Surveillance Systems and Software. With its large storage capacity and high availability, GV-Storage System V3 is an ideal choice for safe and long-term data storage.

Compatible GeoVision Products
  • GV‐Hot Swap System V5 Series
  • GV‐NVR System Lite V2 Series
  • GV‐Tower / DVR / NVR / VMS System
  • GV‐DVR / NVR / VMS / Recording Server / Backup Center / Redundant Server / Failover Server
  • 3U,16-bay hot-swappable SAS/SATA HDD for data storage
  • Storage capacity up to 160 TB (with 10 TB HDD)
  • Multi-Ethernet Ports
    6 x 1 Gigabit Ethernet ports (Standard)
    4 x 1 Gigabit Ethernet ports & 2 x 10 Gigabit Ethernet ports (Optional)
  • RAID level 0, 1, 3, 5, 6, 10, 50, 60, JBOD
  • Fully redundant & hot pluggable designs: power supplies and fans
  • Background logical drive rebuilding
  • Automatic rebuilding onto hot spare (Local & Global Hot Spare)
  • Multi-path and load-balancing Features
  • Real-time drive activity and status indicators
  • Locally audible event notification alarm
  • Storage expandable up to 2560 TB with 256 hard drives through up to 4 GV-Expansion Systems V3 16 / 24 / 64 Bays

Note:
  •  All specifications are subject to change without notice


Note:
  •  All specifications are subject to change without notice
Số model Tên gọi Chi tiết
10 Gigabit Ethernet Cards By installing two 10 Gigabit Ethernet ports with the original four 1 Gigabit Ethernet ports, the network capacity of GV-Storage System V3 10 Gigabit Model can be expanded to up to 24 Gigabits.
  • GV-Storage System V3
  • Power Cord x 2
  • Ethernet LAN Cable x 6
  • RS-232 Cable (For UPS, phone jack to DB9 male)
  • Download Guide
  • Screws (packet)
  • PSFM Blanking Plate
  • Rail Kit

Note:
  •  All specifications are subject to change without notice

Note:
  •  All specifications are subject to change without notice
Model No. Ordering Part No. Description SKU No.
