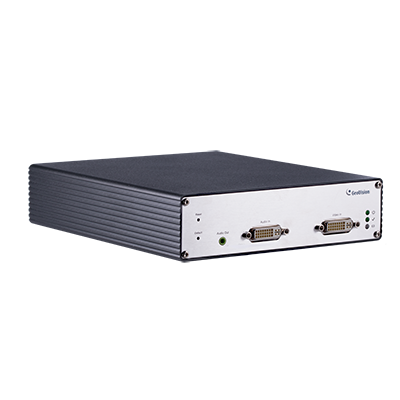

GV-VS21600

16CH H.264 Combo 1080p HD Video Encoder

GV-VS21600 is a powerful H.264 HD Video Encoder with compact size. It supports real-time video with 8-channel between 3 MP and 5 MP, or up to 16 channels at 1080p, 720p, 960H and D1 resolution. The HD Video Encoder can be fully integrated with GV-DVR / NVR / VMS to form a powerful IP surveillance solution. It converts analog signals into high-resolution digitized images of up to 5 megapixels and supports over 50 PTZ models to fulfill various project demands. GV-VS21600 can record videos to a local USB storage, performing as a compact video recorder. It is also able to trigger Tampering Alarm alerts when the cameras are tampered with, which can be used to prevent criminal activities.
  • H.264
  • 8-channel combo 18 fps at 3 MP and 15 fps at 4 MP / 5 MP
  • 16-channel combo 1080p / 720p and analog 960H / D1 real-time video
  • 12V DC
  • Tampering alarm
  • USB HDD Storage
  • Support UMTS / 3G / 3.5G / 4G
  • Automatic switch between WiFi and 3G / 4G
  • Support over 50 PTZ models
  • Support 29 languages on Web interface
  • HD-TVI (1.0 / 2.0 standard) / HD-AHD
  • ONVIF (Profile S) conformant

Note:
  • It is required to apply patch files to all the supported software mentioned.
  • GV‐HD Video Encoder cannot work with microphones that require power from the unit. Use microphones that have external power supply.
  • GV-VS21600 supports 1 external hard disk (2.5" or 3.5") with up to 8 TB capacities.
  • It is not recommended to use the flash USB drive with GV-VS21600 because of its slow read and write speed.
  • Product design and specifications are subject to change without notice.


Note:
  • It is required to apply patch files to all the supported software mentioned.
  • GV‐HD Video Encoder cannot work with microphones that require power from the unit. Use microphones that have external power supply.
  • GV-VS21600 supports 1 external hard disk (2.5" or 3.5") with up to 8 TB capacities.
  • It is not recommended to use the flash USB drive with GV-VS21600 because of its slow read and write speed.
  • Product design and specifications are subject to change without notice.
Model No Name Details
GV-Relay V2 Working with the GV-Relay V2, the GV-Video Server is capable of driving the loads of relay outputs over 5 volts.
GV-WiFi Adaptor V2 The WiFi Adaptor V2 is designed to connect the GV IP devices, such as GV-Video Server, to the wireless network.
Wall Hook Wall Hook is used to mount GV-Video Server to the wall.
DIN-rail Hook DIN-rail Hook is used to mount GV-Video Server to a 35-mm (1.38-in) DIN rail.
Rack Mount Rack Mount is used to mount up to 2 video servers to a 19-in (482.6-mm) rack.
  • GV-VS21600
  • AC Power Cord x 1
  • Power Adaptor x 1
  • DVI to 16 Video BNC Breakout Cable x 1
  • DVI to 16 Audio RCA Breakout Cable x 1
  • Download Guide
  • Warranty Card

Note:
  • It is required to apply patch files to all the supported software mentioned.
  • GV‐HD Video Encoder cannot work with microphones that require power from the unit. Use microphones that have external power supply.
  • GV-VS21600 supports 1 external hard disk (2.5" or 3.5") with up to 8 TB capacities.
  • It is not recommended to use the flash USB drive with GV-VS21600 because of its slow read and write speed.
  • Product design and specifications are subject to change without notice.

Note:
  • It is required to apply patch files to all the supported software mentioned.
  • GV‐HD Video Encoder cannot work with microphones that require power from the unit. Use microphones that have external power supply.
  • GV-VS21600 supports 1 external hard disk (2.5" or 3.5") with up to 8 TB capacities.
  • It is not recommended to use the flash USB drive with GV-VS21600 because of its slow read and write speed.
  • Product design and specifications are subject to change without notice.
Model No. Ordering Part No. Description SKU No.
GV-VS21600 130-VS21600-00 GV-VS21600 16CH Video Server (Combo) 84-VS21600-001U
