GV-SD2322-IR

22x Outdoor Low Lux IR IP Speed Dome

The GV-SD2322-IR is an outdoor network PTZ camera that offers 22x optical zoom and unlimited digital zoom, capable of showing smooth live view with great details. This camera can simultaneously deliver three video streams in resolutions up to 1920 x 1080 at 30 fps. In low-light environments, night vision is enhanced with its high power LEDs, which allow up to 150 m (492 ft) effective IR distance.

Wide surveillance coverage is made possible with 360° endless panning and -15 ~ 195° tilting capacity. PTZ functions such as Preset, Sequence, Auto Pan, Cruise and Patrol can be programmed and activated by schedule. The GV-SD2322-IR supports pan/tilt speeds ranging from a fast patrol of 240° per second to a slow ramble of 0.1° per second with 0.1° pan accuracy for fast and accurate tracking ability.

Note that the Pendant Tube is an optional accessory.

Models

ModelGV-SD2322-IR
IrisAuto / Manual
Focal Length (mm)4.7~103mm
Horizontal FOV61.9°~3.4°
Maximum ApertureF/1.6
Image Format1/2.8"
  • 1/2.8" progressive scan low lux CMOS sensor
  • Min. illumination at 0.01 lux (B/W) and 0.03 lux (color)
  • Triple streams from H.264 and MJEPG
  • Up to 30 fps at 1920 × 1080
  • 22x optical zoom and unlimited digital zoom
  • Intelligent IR
  • IR distance up to 150 m (500 ft)
  • Day and night function with IR-cut filter
  • Two sensor inputs and one alarm output
  • Wide Dynamic Range (WDR)
  • Vandal resistance (IK10 for metal casing)
  • Ingress protection (IP66)
  • Wide temperature tolerance (-40°C ~ 70°C / -40°F ~ 158°F)
  • TV-out support
  • Two-way audio capable
  • Built-in micro SD card slot (SDHC/SDXC, Class 10) for local storage
  • DC 24V / AC 24V
  • Pan 360° endlessly
  • Tilt from -15° to 195°
  • Pan preset speed at up to 300° /sec and tilt at 240° /sec
  • PTZ movement (Preset, Sequence, Auto Pan, Cruise and Patrol)
  • PTZ movements by schedule
  • Auto focus
  • 3D noise reduction
  • Motion detection
  • Privacy mask
  • CE, FCC, RoHS compliant

Note:
  • No memory card slot & local storage function for Argentina.
  • Specifications are subject to change without notice.


Note:
  • No memory card slot & local storage function for Argentina.
  • Specifications are subject to change without notice.
Model No Name Details
GV-Mount104 Straight Tube Kit Dimensions: 219 x 125 x 332 mm (8.6 x 4.9 x 13.1")
Weight: 1.8 kg (3.97 lb)
GV-Mount105 Straight Tube and Junction Box Kit Dimensions: 256 x 256 x 297 mm (10.1 x 10.1 x 11.7")
Weight: 6.2 kg (13.67 lb)
GV-Mount 208-3 Swan Neck Mount Dimensions: 1043 x 519 x 256 mm (41.06 x 20.43 x 10.08")
Weight: 10.6 kg (23.37 lb)

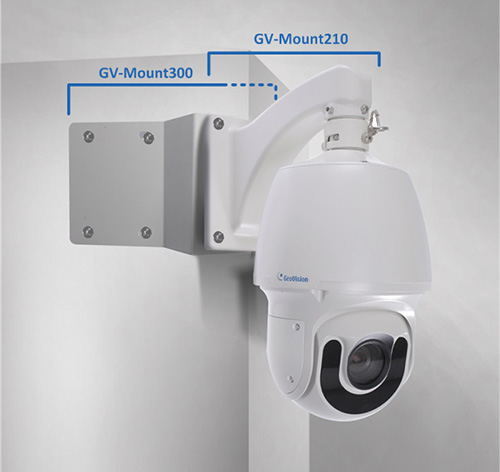

GV-Mount210 Wall Pendant Mount Dimensions: 200 x 140 x 249 mm (7.9 x 5.5 x 9.80")
Weight: 1.1 kg (2.4. lb)
GV-Mount300-1 Convex Corner Adapter Kit Dimensions: 238.6 x 395.2 x 210 mm (9.4 x 15.5 x 8.2")
Weight: 4.27 kg (9.41 lb)
GV-Mount310-1 Concave Corner Adapter Kit Dimensions: 111.2 x 369.9 x 210 mm  (4.37 x 14.5 x 8.2")
Weight: 2.96 kg (6.53 lb)
GV-Mount400-1 Pole Mount Bracket Kit (Ø 4 ~ 6") Bracket: 68.4 x 240 x 163 mm (2.69 x 9.44 x 6.41")
Weight: 1.70 kg (3.75 lb)
Steel Strap Diameter: Ø 4 ~ 6"
GV-Mount410-1 Pole Mount Bracket Kit (Ø 6 ~ 7.5") Bracket: 68.4 x 240 x 163 mm (2.69 x 9.44 x 6.41")
Weight: 1.70 kg (3.75 lb)
Steel Strap Diameter: Ø 6 ~ 7.5"
GV-Mount501 Convex Corner Box Mount Dimensions: 136 x 256 x 256 mm (5.4 x 10.1 x10.1")
Weight: 4.8 kg (10.6 lb)
GV-Mount702 Extension Tube Four options are available.
Dimensions: Ø 5.4 x 10 or 20 or 30 or 50 cm
(Ø 2.1 x 3.9 or 7.9 or 11.8 or 19.7")
Weight: 180 g or 390 g or 550 g or 800 g
(0.4 lb or 0.86 lb or 1.21lb or 1.76 lb)
  • GV-SD2322-IR Speed Dome
  • 24V AC Power Adapter
  • M4 Hex Key
  • Waterproof Rubber Set
  • Waterproof Requirements
  • Download Guide
  • Warranty Card

Note:
  • No memory card slot & local storage function for Argentina.
  • Specifications are subject to change without notice.

Introduction to GV-SD2322-IR


Note:
  • No memory card slot & local storage function for Argentina.
  • Specifications are subject to change without notice.
Model No. Ordering Part No. Description SKU No.
GV-SD2322-IR 120-SD2322-S22 GV-SD2322-IR (22x) 2MP Outdoor Low Lux IR IP Speed Dome 84-SD2322W-IR0U
