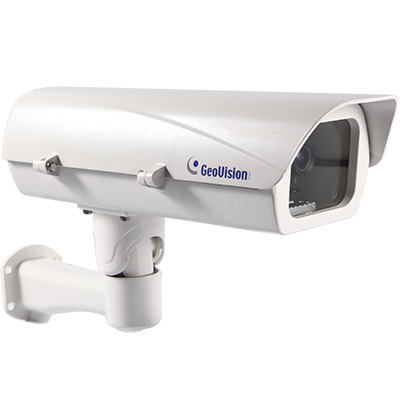

GV-Housing101

The GV-Housing101 is a housing box designed to support the outdoor installation of GV-BX Series and other Box Cameras with external protection. It conforms to IP67 and IK10 standards, and is equipped with a heater and a fan. The GV-Housing101 also supports optional GV-Mount accessories, allowing the Box Camera to be installed on the pole, convex and concave surfaces. Adopting the housing box enables flexible installation of the Box Camera to meet your needs for IP surveillance in various environmental conditions.

Note:
  • Specifications are subject to change without notice.


Note:
  • Specifications are subject to change without notice.
Model No Name Details
GV-Mount300-1 Convex Corner Adapter Kit Dimensions: 238.6 x 395.2 x 210 mm (9.4 x 15.5 x 8.2")
Weight: 4.27 kg (9.41 lb)
GV-Mount310-1 Concave Corner Adapter Kit Dimensions: 111.2 x 369.9 x 210 mm  (4.37 x 14.5 x 8.2")
Weight: 2.96 kg (6.53 lb)
GV-Mount400-1 Pole Mount Bracket Kit (Ø 4 ~ 6") Bracket: 68.4 x 240 x 163 mm (2.69 x 9.44 x 6.41")
Weight: 1.70 kg (3.75 lb)
Steel Strap Diameter: Ø 4 ~ 6"
GV-Mount410-1 Pole Mount Bracket Kit (Ø 6 ~ 7.5") Bracket: 68.4 x 240 x 163 mm (2.69 x 9.44 x 6.41")
Weight: 1.70 kg (3.75 lb)
Steel Strap Diameter: Ø 6 ~ 7.5"
  • Housing Box x 1
  • Supporting Tube x 1
  • Screw Anchor x 4
  • M5 Screw (35 mm) x 4
  • Short Screw x 2
  • M5 Plain Washer (7 mm) x 4
  • M5 Plain Washer (16 mm) x 2
  • Torx Wrench x 1
  • Silica Gel Bag x 1
  • Sticker (for Silica Gel Bag) x 1
  • Plastic Black Plate x 1​

Note:
  • Specifications are subject to change without notice.

Note:
  • Specifications are subject to change without notice.
Model No. Ordering Part No. Description SKU No.
GV-Housing101 150-HOU101-000 Housing Box for GV-Box IP cam (with heater and fan), IP67, no power supply included 84-HOUG101-0001
