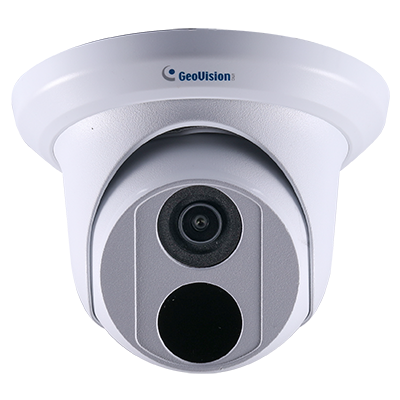

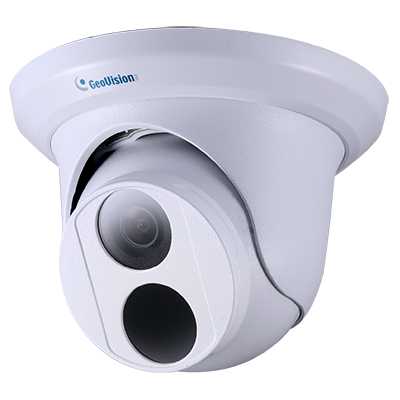

GV-EBD2702

2MP H.265 Low Lux WDR IR Eyeball IP Dome

The H.265 Target Eyeball Dome is a compact outdoor network camera equipped with an automatic IR-cut filter and an IR LED for day and night surveillance. The camera adheres to IP67 standards and can withstand a wide temperature range. The camera supports H.265 video codec to achieve better compression ratio while maintaining high quality image at reduced network bandwidths. With Wide Dynamic Range, it can process scenes with contrasting intensity of lights and produce clear image.

Models

ModelGV-EBD2702
IrisFixed
Focal Length (mm)2.8mm
Horizontal FOV109.9°
Maximum ApertureF/1.8
Image Format1/2.7"
  • 1/2.7" progressive scan low lux CMOS sensor
  • Min. illumination at 0.02 lux
  • Triple streams from H.265, H.264 or MJPEG
  • Up to 30 fps at 1920 × 1080
  • Day and Night function (with removable IR-cut filter)
  • Intelligent IR
  • IR distance up to 30 m (98.4 ft)
  • Wide Dynamic Range (WDR)
  • Ingress protection (IP67)
  • DC 12V / PoE (IEEE 802.3af)
  • Defog
  • 3D noise reduction
  • Motion detection
  • Text overlay
  • Privacy mask
  • ONVIF (Profile S) conformant

Note:
  • It is required to apply patch files to all the supported software.
  • Do not use clothes or any ordinary material to clean the camera cover since they may result in scratches.
  • Specifications are subject to change without notice.


Note:
  • It is required to apply patch files to all the supported software.
  • Do not use clothes or any ordinary material to clean the camera cover since they may result in scratches.
  • Specifications are subject to change without notice.
Model No Name Details
GV-Mount211P Wall Mount Bracket Dimensions: 233 x 126 x 126 mm / (9.2 x 5 x 5")
Weight: 1 kg (2.2 lb)
GV-Mount212P Wall Box Mount Dimensions: Φ126 x 36 mm (5.0" x 1.4")
Weight: 0.22 kg (0.48 lb)
GV-Mount420 Pole Mount Bracket Dimensions: Φ120 x 120 x 53.4 mm (4.7" x 4.7" x 2.1")
Weight: 0.45 kg (0.99 lb)
*must be used with GV-Mount211P
GV-PA191 PoE Adapter Power over Ethernet (PoE) Adapter The GV-PA191 is a Power over Ethernet (PoE) adapter designed to provide power to the IP device through a single Ethernet cable.
GV-POE Switch The GV-POE Switch is designed to provide power along with network connection for IP devices. The GV-POE Switch is available in various models with different numbers and types of ports.
Power Adapter Contact our sales representatives for the countries and areas supported.
  • H.265 Target Eyeball Dome
  • Waterproof Rubber Set
  • Screw x 3
  • Screw Anchor x 3
  • Drill Template Paster
  • Download Guide
  • Warranty Card

Note:
  • It is required to apply patch files to all the supported software.
  • Do not use clothes or any ordinary material to clean the camera cover since they may result in scratches.
  • Specifications are subject to change without notice.

Note:
  • It is required to apply patch files to all the supported software.
  • Do not use clothes or any ordinary material to clean the camera cover since they may result in scratches.
  • Specifications are subject to change without notice.
Model No. Ordering Part No. Description SKU No.
GV-EBD2702 125-EBD2702-000 GV-EBD2702 2MP H.265 2.8mm IR Eyeball Dome 84-EBD270W-G010
