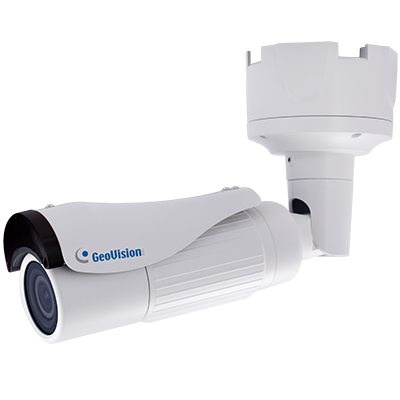

GV-BL4713

4MP H.265 4.3x Zoom Super Low Lux WDR Pro IR Bullet IP Camera

GV-BL4713 is specifically designed for outdoors. It adheres to the IP67 standard and has full protection against dust and jets of water. The camera can support H.265 video codec to achieve better compression ratio while maintaining high quality pictures at reduced network bandwidths. It is also capable of providing a color live view not only in near darkness but also under contrasting light intensities with its super low lux CMOS image sensor and WDR pro. With the motorized focus/zoom, users can remotely adjust the focus and zoom from the Web interface.

Models

ModelGV-BL4713
IrisP‐Iris
Focal Length (mm)2.8 ~ 12mm
Horizontal FOV102°~38°
Maximum ApertureF/1.7
Image Format1/2.7"
  • 1/3" progressive scan super low lux CMOS
  • Min. illumination at 0.02 lux
  • Triple streams from H.265, H.264 and MJPEG
  • Up to 20 fps at 2592 x 1520, 24 fps at 2560 x 1440, 30 fps at 2048 x 1520
  • Intelligent IR
  • IR distance up to 60 m (196.85 ft)
  • Day and Night function (with removable IR-cut filter)
  • Motorized varifocal lens for remote focus / zoom adjustment
  • Vandal resistance (IK10)
  • Ingress protection (IP67)
  • Tolerant to extreme temperatures (-20°C ~ 50°C/-4°F ~ 122°F)
  • One sensor input and one alarm output
  • Built-in micro SD card slot (SD/SDHC/SDXC/UHS-I, Class 10) for local storage
  • Two-way audio
  • Wide Dynamic Range Pro (WDR Pro)
  • 3D noise reduction
  • Defog
  • Motion detection
  • Tampering alarm
  • Privacy mask
  • IP address filtering
  • DC 12V / AC 24V / PoE (IEEE 802.3af)
  • Supports iPhone, iPad, Android & 3GPP
  • 31 languages on Web interface
  • ONVIF (Profile S) conformant

Note:
  • No Memory Card Slot & local storage function for Argentina.
  • Mind the following when using an inserted memory card for recording:
    • Recorded data on the memory card can be damaged or lost if the data are accessed while the camera is under physical shock, power interruption, memory card detachment or when the memory card reaches the end of its lifespan. No guarantee is provided for such causes.
    • To avoid power outage, it is highly suggested to apply a battery backup (UPS).
    • For better performance, it is highly suggested to use Micro SD card of MLC NAND flash, Class 10.
    • Replace the memory card when its read/write speed is lower than 6 MB/s or when the memory card is frequently undetected by the camera.
  • Specifications are subject to change without prior notice.


Note:
  • No Memory Card Slot & local storage function for Argentina.
  • Mind the following when using an inserted memory card for recording:
    • Recorded data on the memory card can be damaged or lost if the data are accessed while the camera is under physical shock, power interruption, memory card detachment or when the memory card reaches the end of its lifespan. No guarantee is provided for such causes.
    • To avoid power outage, it is highly suggested to apply a battery backup (UPS).
    • For better performance, it is highly suggested to use Micro SD card of MLC NAND flash, Class 10.
    • Replace the memory card when its read/write speed is lower than 6 MB/s or when the memory card is frequently undetected by the camera.
  • Specifications are subject to change without prior notice.
Model No Name Details
GV-Mount300-1 Convex Corner Adapter Kit Dimensions: 238.6 x 395.2 x 210 mm (9.4 x 15.5 x 8.2")
Weight: 4.27 kg (9.41 lb)
GV-Mount310-1 Concave Corner Adapter Kit Dimensions: 111.2 x 369.9 x 210 mm  (4.37 x 14.5 x 8.2")
Weight: 2.96 kg (6.53 lb)
GV-Mount400-1 Pole Mount Bracket Kit (Ø 4 ~ 6") Bracket: 68.4 x 240 x 163 mm (2.69 x 9.44 x 6.41")
Weight: 1.70 kg (3.75 lb)
Steel Strap Diameter: Ø 4 ~ 6"
GV-Mount410-1 Pole Mount Bracket Kit (Ø 6 ~ 7.5") Bracket: 68.4 x 240 x 163 mm (2.69 x 9.44 x 6.41")
Weight: 1.70 kg (3.75 lb)
Steel Strap Diameter: Ø 6 ~ 7.5"
I/O Cable I/O Cable The I/O cable is a multi-connector providing I/O, DC 12V power, and audio connectivity for the camera.
Length: 106.8 cm (3.5 ft)
GV-PA191 PoE Adapter Power over Ethernet (PoE) Adapter The GV-PA191 is a Power over Ethernet (PoE) adapter designed to provide power to the IP device through a single Ethernet cable.
GV-Relay V2 The GV-Relay V2 is designed to expand the voltage load of GV IP devices. It provides 4 relay outputs, and each can be set as normally open (NO) or normally closed (NC) independently as per your requirement.
GV-POE Switch The GV-POE Switch is designed to provide power along with network connection for IP devices. The GV-POE Switch is available in various models with different numbers and types of ports.
Power Adapter Contact our sales representatives for the countries and areas supported.
  • H.265 Bullet Camera
  • Stand Kit (Conduit Converter, PG21 Conduit Connector, RJ-45 Connector, M3 Screw x 2, Cable Tie)
  • Mounting Kit (M4 Screw x 3, Nut x 3, Plate x 3)
  • Screw Anchor x 3
  • Screw for Mounting Kit x 3
  • Hex Wrench
  • 4 mm Wrench
  • 2.5 mm Wrench
  • Silica Gel Bag x 2
  • Ruler
  • Installation Sticker
  • Download Guide
  • Warranty Card

Note:
  • No Memory Card Slot & local storage function for Argentina.
  • Mind the following when using an inserted memory card for recording:
    • Recorded data on the memory card can be damaged or lost if the data are accessed while the camera is under physical shock, power interruption, memory card detachment or when the memory card reaches the end of its lifespan. No guarantee is provided for such causes.
    • To avoid power outage, it is highly suggested to apply a battery backup (UPS).
    • For better performance, it is highly suggested to use Micro SD card of MLC NAND flash, Class 10.
    • Replace the memory card when its read/write speed is lower than 6 MB/s or when the memory card is frequently undetected by the camera.
  • Specifications are subject to change without prior notice.

Note:
  • No Memory Card Slot & local storage function for Argentina.
  • Mind the following when using an inserted memory card for recording:
    • Recorded data on the memory card can be damaged or lost if the data are accessed while the camera is under physical shock, power interruption, memory card detachment or when the memory card reaches the end of its lifespan. No guarantee is provided for such causes.
    • To avoid power outage, it is highly suggested to apply a battery backup (UPS).
    • For better performance, it is highly suggested to use Micro SD card of MLC NAND flash, Class 10.
    • Replace the memory card when its read/write speed is lower than 6 MB/s or when the memory card is frequently undetected by the camera.
  • Specifications are subject to change without prior notice.
Model No. Ordering Part No. Description SKU No.
GV-BL4713 125-BL4713-000 GV-BL4713 H.265 4MP 2.8~12mm Motorized Bullet cam, 4.3x zoom, Super Low lux, D/N, IP67, IR, P-Iris, DC12V/AC24V/PoE 84-BL47130-0010
