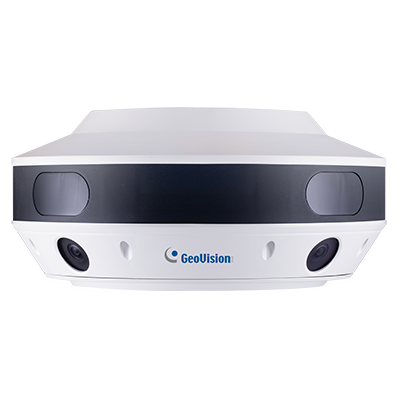

GV-SV48000

GV-SV48000

48MP H.264 Low Lux WDR IR Surround Video IP Camera

GV-SV48000 features four 12MP CMOS image sensors to deliver a video resolution of 4000 x 3000 at up to 15fps. The camera offers wide panoramic views at four different angles utilizing surveillance images from the four 3.93 mm lenses to monitor open areas. Its night vision is further enhanced with its high power LEDs with up to 50 m (165 ft) effective IR distance. GV-SV48000 adheres to IP67 and IK10 standards. Captured surveillance images from all angles can be stored in either H.264 or MJPEG format on SD cards.

Models

ModelGV-SV48000
IrisFixed
Focal Length (mm)3.93mm
Horizontal FOV112°
Maximum ApertureF/2.3
Image Format1/1.7"
  • 4 x 1/1.7" progressive scan CMOS
  • Dual streams from H.264 or MJPEG
  • Up to 15 fps at 4000 x 3000
  • 雙向語音
  • Four sensor inputs and one alarm output
  • IK10防暴等級 (金屬機身部分)
  • IP67防護等級
  • DC 24V / AC 24V / High PoE++ (72 W)
  • 4 x Built-in micro SD card slot (SD/SDHC/SDXC/UHS-I) for local storage
  • 日/夜切換功能 (內建移動式紅外線濾片)
  • 支援寬動態處理技術 (WDR)
  • 低照度增強技術
  • 3D雜訊抑制
  • 智慧串流 (Smart stream)
  • 支援影像強化技術 (Defog)
  • 位移偵測
  • 影像分析警報
  • 隱私遮罩
  • 支援iPhone, iPad, Android及3GPP連線
  • 網頁介面支援31 國語言
  • 相容ONVIF (Profile S)協定
  • 支援ERM軟體遠端連線

  • No Memory card slot & local storage function for Argentina.
  • Specifications are subject to change without notice


  • No Memory card slot & local storage function for Argentina.
  • Specifications are subject to change without notice
Model No Name Details
GV-Mount102 含箱體直管 尺寸: 256 x 256 x 316 mm (10.1 x 10.1 x 12.4")
重量: 6.6 kg (14.6 lb)
GV-Mount103 直管安裝套件 Dimensions (L x W x D): 340 x 219 x 125 mm (13.4 x 8.6 x 4.9")
重量: 2.2 kg (4.9 lb)
GV‐Mount103‐1 Straight Tube Mount Dimensions (L x W x D): 240 x 219 x 125 mm (9.4 x 8.6 x 4.9")
Weight: 1.76 kg (3.88 lb)
GV-Mount207 垂掛管 尺寸: 151.6 x 203.6 x 302.8 mm / (5.97 x 8.02 x 11.92")
重量: 1.43 kg (3.15 lb)
GV-Mount 208-1 Swan Neck Mount 尺寸: 1043 x 565 x 256 mm (41.06 x 22.24 x 10.08")
重量: 10.6 kg (23.37 lb)
GV-Mount300-1 凸角轉接器套件 尺寸: 238.6 x 395.2 x 210 mm (9.4 x 15.5 x 8.2")
重量: 4.27 kg (9.41 lb)
GV-Mount400-1 電線桿安裝支架套件 (Ø 4 ~ 6") 托架: 68.4 x 240 x 163 mm (2.69 x 9.44 x 6.41")
重量: 1.70 kg (3.75 lb)
鋼帶尺寸: Ø 4 ~ 6"
GV-Mount410-1 電線桿安裝支架套件 (Ø 6 ~ 7.5") 托架: 68.4 x 240 x 163 mm (2.69 x 9.44 x 6.41")
重量: 1.70 kg (3.75 lb)
鋼帶尺寸: Ø 6 ~ 7.5"
GV-Mount501 凸角接線盒 尺寸: 136 x 256 x 256 mm (5.4 x 10.1 x10.1")
重量: 4.8 kg (10.6 lb)
GV-Mount702 延伸管 4種尺寸
尺寸: Ø 5.4 x 10 or 20 or 30 or 50 cm
(Ø 2.1 x 3.9 or 7.9 or 11.8 or 19.7")
重量: 180 g or 390 g or 550 g or 800 g
(0.4 lb or 0.86 lb or 1.21lb or 1.76 lb)
GV-PA901 PoE 供電器 GV-PA901 PoE供電器透過網路線,可以同時提供攝影機網路及電力
尺寸: 69 x 40 x 93 mm / 2.7 x 1.57 x 3.66"
重量: 250 kg / 0.55 lb
  • GV-SV48000
  • Hex Wrench
  • RJ-45 Connector
  • Silica Gel Bag
  • GV-Mount103-1
  • Download Guide
  • Warranty Card

  • No Memory card slot & local storage function for Argentina.
  • Specifications are subject to change without notice

  • No Memory card slot & local storage function for Argentina.
  • Specifications are subject to change without notice
Model No. Ordering Part No. Description SKU No.
