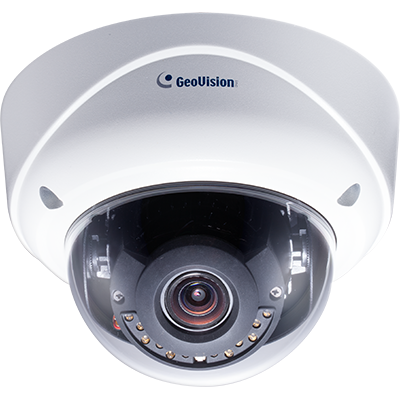

GV-VD5700

5MP H.265 Low Lux WDR IR Vandal Proof IP Dome

GV-VD5700 is an outdoor camera for optimal day and night surveillance. GV-VD5700 can support H.265 video codec to achieve better compression ratio while maintaining high picture quality at reduced network bandwidths. For night operations, the camera allows up to 30 m (98.4 ft) IR effective distance. The camera also uses P-iris to produce images with better clarify and contrast. It is adjustable in 3 axis (pan, tilt and rotate).

Models

ModelGV-VD5700
IrisP-Iris
Focal Length(mm)4-8mm
Maximum ApertureF/1.65
Image Format1/1.8"
  • 1/1.8" progressive Low Lux CMOS
  • Dual streams from H.265, H.264, and MJPEG
  • Up to 30 fps at 2592 × 1944
  • P-Iris for auto iris adjustment
  • Vandal resistance (IK10 for metal casing)
  • Ingress protection (IP67)
  • Megapixel varifocal lens
  • 3-axis mechanism (pan / tilt / rotate)
  • Day and Night function (with removable IR-cut filter)
  • External microphone
  • Intelligent IR
  • Two-way audio
  • One sensor input and digital output
  • Built-in micro SD card slot (SD/SDHC/SDXC/UHS-I) for local storage
  • DC 12V / PoE (IEEE 802.3af)
  • Wide Dynamic Range (WDR)
  • Smart streaming
  • Defog
  • Text overlay
  • Tampering alarm
  • 3D noise reduction
  • IP address filtering
  • Recording assigned by GV-Edge Recording Manager (Windows & Mac version)
  • Supports iPhone, iPad, Android & 3GPP
  • 31 languages on Web interface
  • ONVIF (Profile S) conformant

Note:
  • No memory card slot & local storage function for Argentina.
  • Smart streaming requires either GV-DVR / NVR V8.7.0.0 or GV-VMS V16.10.3.
  • Do not use clothes or any ordinary material to clean the camera cover since they may result in scratches.
  • Specifications are subject to change without notice.


Note:
  • No memory card slot & local storage function for Argentina.
  • Smart streaming requires either GV-DVR / NVR V8.7.0.0 or GV-VMS V16.10.3.
  • Do not use clothes or any ordinary material to clean the camera cover since they may result in scratches.
  • Specifications are subject to change without notice.
Model No Name Details
GV-Mount100 Straight Tube and Junction Box Kit Dimensions: 200 x 170 x 257.5 mm (7.9 x 6.7 x 10.1")
Weight: 3.17 kg (6.99 lb)
GV-Mount101 Straight Tube Kit Dimensions: 219 x 125 x 332 mm (8.6 x 4.9 x 13.1")
Weight: 1.8 kg (3.97 lb)
GV-Mount200 Wall Pendant Tube Dimensions: 225 x 140 x 250 mm (8.9 x 5.5 x 9.8")
Weight: 900 g (1.98 lb)
GV-Mount203 Wall Pendant Tube and Junction Box Kit Dimensions: 315 x 195.5 x 225 mm (12.4 x 7.7 x 8.9")
Weight: 2.95 kg (6.5 lb)
GV-Mount206 Wall Mount Bracket Kit Dimensions: 126.5 x 211.3 x 176.85 mm / 5 x 8.3 x 6.96" (L x W x diameter)
Weight: 0.93 kg (2.06 lb)
GV-Mount300 Convex Corner Adapter Kit Dimensions: 238.6 x 409.5 mm (9.4 x 16.1")
Weight: 4.27 kg (9.41 lb)
GV-Mount310 Concave Corner Adapter Kit Dimensions: 123.3 x 393.1 mm (4.9 x 15.5")
Weight: 2.96 kg (6.53 lb)
GV-Mount400 Pole Mount Bracket Kit (Ø 4 ~ 6) Bracket: 241 x 161 mm (9.5 x 6.3")
Weight: 1.70 kg (3.75 lb)
Steel Strap Diameter: Ø 4 ~ 6"
GV-Mount410 Pole Mount Bracket Kit (Ø 6 ~ 7.5") Bracket: 241 x 161 mm (9.5 x 6.3")
Weight: 1.70 kg (3.75 lb)
Steel Strap Diameter: Ø 6 ~ 7.5"
GV-Mount702 Extension Tube Four options are available.
Dimensions: Ø 5.4 x 10 or 20 or 30 or 50 cm
(Ø 2.1 x 3.9 or 7.9 or 11.8 or 19.7")
Weight: 180 g or 390 g or 550 g or 800 g
(0.4 lb or 0.86 lb or 1.21lb or 1.76 lb)
GV-Mount903 GV-FE / GV-VD Dome Housing Dimensions: Ø 186 x 97.5 mm (Ø 7.3 x 3.8")
Weight: 700 g (1.54 lb)
GV-PA191 PoE Adapter Power over Ethernet (PoE) Adapter The GV-PA191 is a Power over Ethernet (PoE) adapter designed to provide power to the IP device through a single Ethernet cable.
GV-Relay V2 The GV-Relay V2 is designed to expand the voltage load of GV IP devices. It provides 4 relay outputs, and each can be set as normally open (NO) or normally closed (NC) independently as per your requirement.
GV-POE Switch The GV-POE Switch is designed to provide power along with network connection for IP devices. The GV-POE Switch is available in various models with different numbers and types of ports.
Power Adapter Contact your sales representative for the countries and areas supported.
  • H.265 Vandal Proof IP Dome
  • Torx Wrench
  • Silica Gel Bag x 2
  • Sticker (for Silica Gel Bag) x 2
  • Screw Anchor x 4
  • Long Screw x 4
  • Back Plate
  • Short Screw for Back Plate x 3
  • Cable Stopper
  • Anti-Drop Wire
  • Screw for Anti-Drop Wire
  • Pan Angle Notification Card
  • Installation Sticker
  • RJ45 Connector x 2
  • GV-IPCAM Software DVD
  • GV-Software DVD
  • Warranty Card

Note:
  • No memory card slot & local storage function for Argentina.
  • Smart streaming requires either GV-DVR / NVR V8.7.0.0 or GV-VMS V16.10.3.
  • Do not use clothes or any ordinary material to clean the camera cover since they may result in scratches.
  • Specifications are subject to change without notice.

GV-VD3700 / 5700 - Installation - Ceiling Mount
