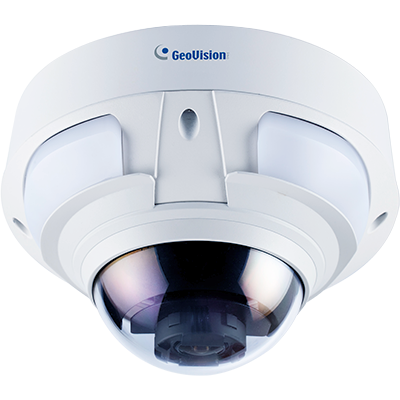

GV-VD2540-E

2MP H.264 3x zoom Super Low Lux WDR IR Arctic Vandal Proof IP Dome

GV-VD2540-E is an outdoor camera designed with IK10+ vandal resistance, IP67 ingress protection and tolerance to extreme temperatures. With its motorized varifocal lens, the user can zoom and focus the camera from the Web interface. The camera is equipped with a super low lux CMOS image sensor with which the camera is capable of providing a color live view in near darkness. This night vision is further enhanced with its high power LEDs with up to 25 m (82 ft.) effective distance.

Models

ModelGV-VD2540-E
IrisDC Drive
Focal Length (mm)3~9mm
Horizontal FOV103°~36°
Maximum ApertureF/1.2
Image Format1/2.7"
  • 1/2.8" progressive scan super low lux CMOS
  • Min. illumination at 0.02 lux
  • Dual streams from H.264 and MJPEG
  • Up to 30 fps at 1920 × 1080
  • Vandal resistance (IK10+)
  • Ingress protection (IP67)
  • Wide temperature tolerance (-40°C ~ 50°C / -40°F ~ 122°F)
  • Motorized varifocal lens for remote focus / zoom adjustment
  • 3-axis mechanism (pan / tilt / roll)
  • Day and Night function (with removable IR-cut filter)
  • High power IR LEDs
  • Intelligent IR
  • IR distance up to 25 m (82 ft)

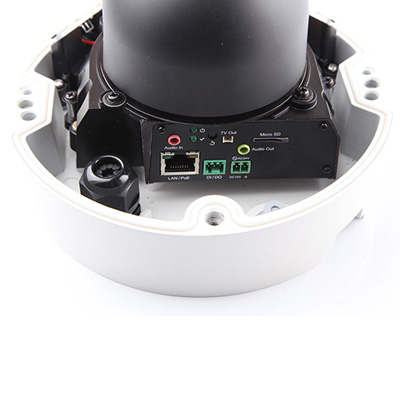

  • External microphone
  • Two-way audio
  • One sensor input and one alarm output
  • TV-out support
  • Built-in micro SD card slot (SD/SDHC) for local storage
  • Recording assigned by GV-Edge Recording Manager (Windows & Mac version)
  • DC 12V / AC 24V / PoE+ (IEEE 802.3at)
  • Wide Dynamic Range (WDR)
  • 3D noise reduction
  • Defog
  • Motion detection
  • Tampering alarm
  • Privacy mask
  • IP address filtering
  • Supports iPhone, iPad, Android & 3GPP
  • 31 languages on Web interface
  • ONVIF (Profile S) conformant
  • More storage option - NAS

Note:
  • No memory card slot & local storage function for Argentina.
  • Active Tampering Alarm.
  • The power adapter can be excluded upon request.
  • Do not use clothes or any ordinary material to clean the camera cover since they may result in scratches.
  • Specifications are subject to change without notice.


Note:
  • No memory card slot & local storage function for Argentina.
  • Active Tampering Alarm.
  • The power adapter can be excluded upon request.
  • Do not use clothes or any ordinary material to clean the camera cover since they may result in scratches.
  • Specifications are subject to change without notice.
Model No Name Details
GV-Mount100 Straight Tube and Junction Box Kit Dimensions: 200 x 170 x 257.5 mm (7.9 x 6.7 x 10.1")
Weight: 3.17 kg (6.99 lb)
GV-Mount101 Straight Tube Kit Dimensions: 219 x 125 x 332 mm (8.6 x 4.9 x 13.1")
Weight: 1.8 kg (3.97 lb)
GV-Mount200 Wall Pendant Tube Dimensions: 225 x 140 x 250 mm (8.9 x 5.5 x 9.8")
Weight: 900 g (1.98 lb)
GV-Mount203 Wall Pendant Tube and Junction Box Kit Dimensions: 315 x 195.5 x 225 mm (12.4 x 7.7 x 8.9")
Weight: 2.95 kg (6.5 lb)
GV-Mount206 Wall Mount Bracket Kit Dimensions: 126.5 x 211.3 x 176.85 mm / 5 x 8.3 x 6.96"
Weight: 0.93 kg (2.06 lb)
GV-Mount300 Convex Corner Adapter Kit Dimensions: 238.6 x 409.5 mm (9.4 x 16.1")
Weight: 4.27 kg (9.41 lb)
GV-Mount310 Concave Corner Adapter Kit Dimensions: 123.3 x 393.1 mm (4.9 x 15.5")
Weight: 2.96 kg (6.53 lb)
GV-Mount400 Pole Mount Bracket Kit (Ø 4 ~ 6") Bracket: 241 x 161 mm (9.5 x 6.3")
Weight: 1.70 kg (3.75 lb)
Steel Strap Diameter: Ø 4 ~ 6"
GV-Mount410 Pole Mount Bracket Kit (Ø 6 ~ 7.5") Bracket: 241 x 161 mm (9.5 x 6.3")
Weight: 1.70 kg (3.75 lb)
Steel Strap Diameter: Ø 6 ~ 7.5"
GV-Mount702 Extension Tube Four options are available.
Dimensions: Ø 5.4 x 10 or 20 or 30 or 50 cm
(Ø 2.1 x 3.9 or 7.9 or 11.8 or 19.7")
Weight: 180 g or 390 g or 550 g or 800 g
(0.4 lb or 0.86 lb or 1.21lb or 1.76 lb)
GV-Mount903 GV-FE / GV-VD Dome Housing Dimensions: Ø 186 x 97.5 mm (Ø 7.3 x 3.8")
Weight: 700 g (1.54 lb)
GV-Mount909 Wall Mount Bracket Dimensions: 170 x 150 x 110 mm (6.7 x 5.9 x 4.3")
Weight: 0.61 kg (1.34 lb)
GV-Mount914 In-Ceiling Mount Dimensions: Ø 222 x 86 mm (8.74 x 3.39")
Weight: 705 g (1.55 lb)
Weatherproof Shield The weatherproof shield protects the camera from rain and snow.
GV-Relay V2 The GV-Relay V2 is designed to expand the voltage load of GV IP devices. It provides 4 relay outputs, and each can be set as normally open (NO) or normally closed (NC) independently as per your requirement.
Metal PG21 Conduit Connector The metal PG21 conduit connector allows you to run the wires through a 3/4" conduit pipe.
GV-POE Switch The GV-POE Switch is designed to provide power along with network connection for IP devices. The GV-POE Switch is available in various models with different numbers and types of ports.
Power Adapter Contact our sales representatives for the countries and areas supported.
  • Vandal Proof IP Dome
  • Torx Wrench
  • 3-Pin Terminal Block
  • Audio Wires
  • Power Adapter
  • TV Out Wire
  • RJ-45 Connector x 2
  • Back Plate 1 set
  • Installation Sticker
  • Screw Anchor x 4
  • Long Screw x 4
  • Flat Screw
  • Short Screw x 2
  • Silica Gel Bag
  • Sticker (for Silica Gel Bag)
  • Ruler
  • Conduit Converter
  • PG21 Conduit Connector
  • GV-IPCAM H.264 Software DVD
  • GV-NVR Software DVD
  • GV-Vandal Proof IP Dome Hardware Installation Guide
  • Warranty Card

Note:
  • No memory card slot & local storage function for Argentina.
  • Active Tampering Alarm.
  • The power adapter can be excluded upon request.
  • Do not use clothes or any ordinary material to clean the camera cover since they may result in scratches.
  • Specifications are subject to change without notice.
