GV-TM0100

CIF H.264 Thermal IP Camera

GV-TM0100 is an outdoor thermal IP camera capable of producing black-and-white images based on the detected temperature of the people, vehicles and environment. Unlike traditional cameras that rely on visible light, GV-TM0100 is unaffected by the lighting conditions and allows you to detect movements even in complete darkness and backlit scenes.

Ideal for border surveillance and sparsely populated areas, GV-TM0100 can detect human-sized targets at a distance of 1450 m (4757 ft) and vehicles at 1850 m (6070 ft).

GV-TM0100 can be easily configured through its Web interface and you can record and play back recordings using the GV-VMS software included in the standard package.
  • CIF Uncooled FPA micro bolometer, 25 um pixel size
  • Thermal sensitivity: ≤100 mK at f/1,300K
  • Spectral range: 8 ~ 14 um
  • Single stream from H.264 or MJPEG
  • Up to 25 fps at 352 × 288
  • 2x digital zoom
  • Up to 1450 m (4757 ft) detection range for human targets and 1850 m (6070 ft) for vehicles
  • Up to 480 m (1575 ft) recognition range for human targets and 920 m (3018 ft) for vehicles
  • Ingress protection (IP66)
  • DC 12V / PoE (IEEE 802.3af)
  • Motion detection
  • Privacy mask
  • Text overlay
  • IP address filtering
  • CE, FCC, RCM, RoHS compliant
  • Supports iPhone, iPad, Android & 3GPP
  • 28 languages on Web interface



Model No Name Details
GV-PA191 PoE Adapter Power over Ethernet (PoE) Adapter The GV-PA191 is a Power over Ethernet (PoE) adapter designed to provide power to the IP device through a single Ethernet cable.
GV-POE Switch The GV-POE Switch is designed to provide power along with network connection for IP devices. The GV-POE Switch is available in various models with different numbers and types of ports.
Power Adapter Contact your sales representative for the countries and areas supported.
  • Thermal IP Camera
  • Supporting Rack
  • Hex Key
  • Rubber pad for supporting rack
  • Philips Cap Screw x2
  • Silica Gel Bag
  • GV‐IPCAM Software CD/DVD
  • GV-Software DVD
  • Warranty Card​

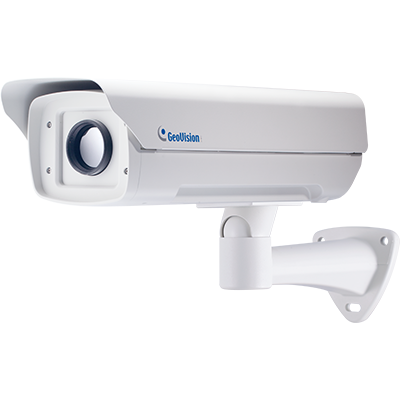

GV-TM0100 Thermal IP Camera
