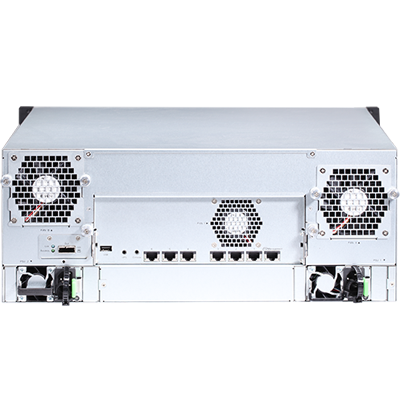

GV-Storage System V2-4U,24-Bay

Large Storage Capacity
GV‐Storage System V2, the IP SAN storage system, is a high‐performance RAID storage system based on the latest iSCSI technology for
users looking for a cost‐effective and shared storage solution over the network. Compared to the desktop PC and consumer NAS
system which only allow for 2 ~ 8 hard disks for data storage, GV‐Storage System V2 is equipped with 24 hard disk drives, storage
capacity up to 144 TB (with 6 TB HDD). GV‐Storage System V2 can connect to 7 units of 24‐bay GV‐Expansion Systems, JBOD systems,
increasing storage up to 192 hard disks with 1,152 TB.

High Availability
GV‐Storage System V2 has fully redundant components including power supplies, fan modules, and SAS JBOD expansion ports linked
to GV‐Expansion System. All of these components are hot‐swappable to create a high availability platform and provide non‐stop

Compatibility with GeoVision Surveillance Systems
GV‐Storage System V2 is compatible with GeoVision Surveillance Systems and Software. With its large storage capacity and high
availability, GV‐Storage System V2 is an ideal choice for safe and long‐term data storage.

Compatible GeoVision Products
  • GV‐Hot Swap System V5 Series
  • GV‐NVR System Lite V2 Series
  • GV‐Tower / DVR / NVR / VMS System
  • GV‐DVR / NVR / VMS / Recording Server / Backup Center / Redundant Server / Failover Server
  • 4U 24-bay hot-swap SATA II / III HDD for data storage
  • Storage capacity up to 144 TB (with 6 TB HDD)
  • Six 1 GbE iSCSI data ports
  • RAID levels 0, 1, 0+1, 3, 5, 6, 10, 30, 50, 60, JBOD, and N-way mirror
  • Fully redundant & hot pluggable designs: power supplies and fans
  • Hardware iSCSI offload engine
  • Background logical drive rebuilding
  • Automatic rebuilding onto hot spare (Local & Global Hot Spare)
  • Web management interface enabled on a specific Ethernet interface
  • Multi-path and load-balancing Features
  • Storage expendable up to 1152 TB with 192 hard drives by connecting up to 7 GV-Expansion Systems (4U, 24-bay)

  • Specifications are subject to change without notice.

  • Specifications are subject to change without notice.
Model No Name Details
  • GV-Storage System V2
  • HDD Tray x 24
  • Power Cord x 2
  • RS-232 Cable (For UPS, phone jack to DB9 male).
  • Rail Kit
  • Keys, Screws for Drives and Rail Kit (packet)
  • Quick Start Guide
  • Software Disk

  • Specifications are subject to change without notice.

GV-Storage System V2 (IP SAN Storage System) - Creating a RAID Volume for a Host

GV-Storage System V2 (IP SAM Storage) - HDD Replacement

GV-Storage System V2 (IP SAN Storage) - Power Supply & Fan Replacement
