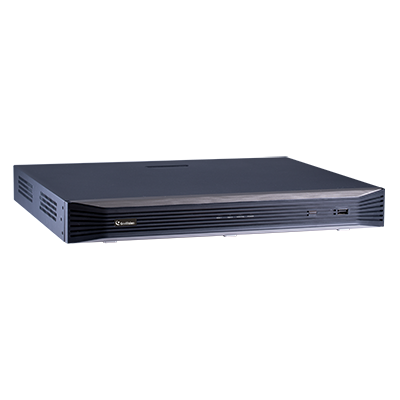

GV-SNVR1611

The GV-SNVR1611 is an H.264/H.265 Linux-embedded Standalone Network Video Recorder which records video files directly to the internal hard drive, supporting up to 16 channels of IP cameras for network surveillance. GV-SNVR1611 has 16-port built-in PoE+ (IEEE 802.3at), functioning to carry network and power to IP cameras. Featuring with up to 4K resolution video output, GV-SNVR1611 eliminates the need of a separate PC to view and play back video from the unit. Its USB ports allow you to connect a USB flash drive to import or export system settings, update firmware, save snapshot files and back up video in AVI format.
  • 16-Channel video recording
  • Up to 4000 x 3000 resolution for each channel
  • Dual streams support
  • 16‐Port PoE+ (IEEE 802.3at) for camera connection
  • 4K HDMI / 1080p VGA video output
  • 2 SATA HDD drawer (3.5'') for up to 16 TB storage
  • Two‐way audio
  • Four sensor inputs and one alarm output
  • Automatic search and set-up for IP cameras
  • Support for third‐party IP cameras through ONVIF and RTSP protocol
  • Continuous, motion and scheduled recordings
  • Timeline playback
  • Multi-channel playback
  • Display of HDD status and system temperature
  • DST (Daylight Saving Time) support
  • NTP (Network Time Protocol) support
  • GeoVision DDNS server support
  • E-mail notification for recording error and password retrieval
  • Recording export
  • Remote live view through Web browser
  • PTZ control using GV-Joystick V2 or on-screen panel
  • Smart device access (iOS and Android)
  • Support for 13 languages

  • For supported IP cameras, the resolutions of Main Stream and Sub Stream both must meet the requirements noted under Specifications.
  • GV-SNVR only supports recording frame rates of up to 30 fps.
  • GV-SNVR1611 only supports recording bandwidths of up to 80 Mbps.
  • GV-SNVR1611 also supports EVS-ABD1300 / ABL1300 / ADR1300 and UVS-ABD1300 / ABL1300 / ADR1300.


  • For supported IP cameras, the resolutions of Main Stream and Sub Stream both must meet the requirements noted under Specifications.
  • GV-SNVR only supports recording frame rates of up to 30 fps.
  • GV-SNVR1611 only supports recording bandwidths of up to 80 Mbps.
  • GV-SNVR1611 also supports EVS-ABD1300 / ABL1300 / ADR1300 and UVS-ABD1300 / ABL1300 / ADR1300.
Model No Name Details
GV-Joystick V2 The GV-Joystick V2 facilitates the PTZ camera control. It can be plugged into the GV-SNVR for independent use to empower the operation of PTZ cameras.
GV-POE Switch The GV-POE Switch is designed to provide power along with network connection for IP devices.
The GV-POE Switch is available in various models with different numbers and types of ports.
GV‐WiFi Adaptor V2 Designed to connect IP devices to a wireless network, GV‐WiFi Adaptor V2 is a plug‐and‐play device that can be plugged into the USB port of GV‐SNVR to provide immediate WiFi connection.
  • GV-SNVR1611
  • AC power cord
  • SATA cable x 2
  • HDD power cable x 2
  • Screw x 8 (for HDD)
  • USB mouse
  • Foam foot
  • Download Guide
  • Warranty card

  • For supported IP cameras, the resolutions of Main Stream and Sub Stream both must meet the requirements noted under Specifications.
  • GV-SNVR only supports recording frame rates of up to 30 fps.
  • GV-SNVR1611 only supports recording bandwidths of up to 80 Mbps.
  • GV-SNVR1611 also supports EVS-ABD1300 / ABL1300 / ADR1300 and UVS-ABD1300 / ABL1300 / ADR1300.

  • For supported IP cameras, the resolutions of Main Stream and Sub Stream both must meet the requirements noted under Specifications.
  • GV-SNVR only supports recording frame rates of up to 30 fps.
  • GV-SNVR1611 only supports recording bandwidths of up to 80 Mbps.
  • GV-SNVR1611 also supports EVS-ABD1300 / ABL1300 / ADR1300 and UVS-ABD1300 / ABL1300 / ADR1300.
  • GV-SNVR1611
  • AC power cord
  • SATA cable x 2
  • HDD power cable x 2
  • Screw x 8 (for HDD)
  • USB mouse
  • Foam foot
  • Download Guide
  • Warranty card

  • For supported IP cameras, the resolutions of Main Stream and Sub Stream both must meet the requirements noted under Specifications.
  • GV-SNVR only supports recording frame rates of up to 30 fps.
  • GV-SNVR1611 only supports recording bandwidths of up to 80 Mbps.
  • GV-SNVR1611 also supports EVS-ABD1300 / ABL1300 / ADR1300 and UVS-ABD1300 / ABL1300 / ADR1300.
