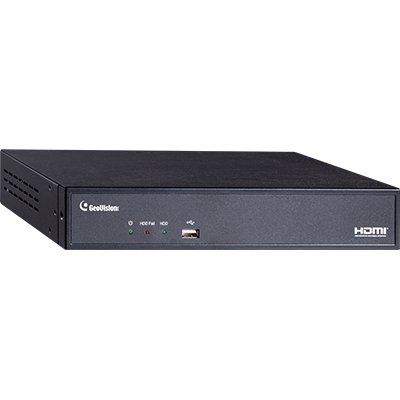

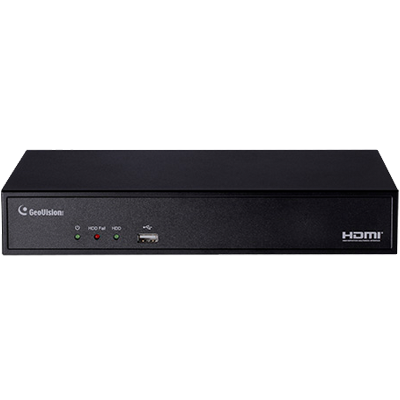

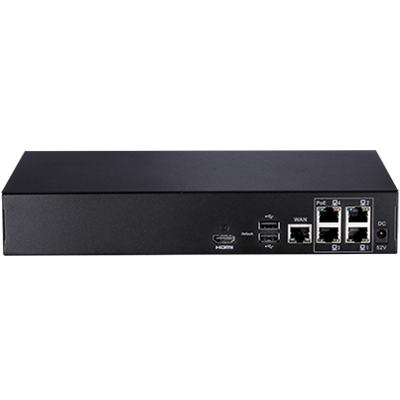

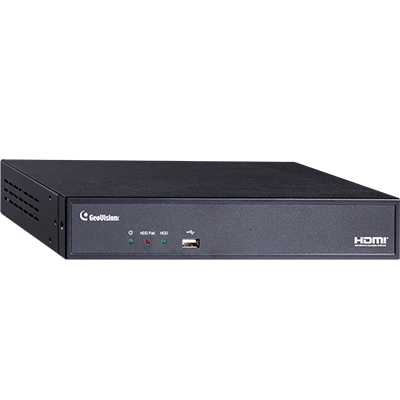

GV-SNVR0411 GV-SNVR0411 GV-SNVR0411

GV-SNVR0411

The GV-SNVR0411 is an H.264/H.265 linux-embedded Standalone Network Video Recorder which records video files directly to the internal hard drive, supporting up to 4 channels of GV-IP Cameras for network surveillance. GV-SNVR0411 has 4-port built-in PoE (IEEE 802.3af), functioning to carry network and power to IP cameras. Featuring with up to 4K resolution video output, GV-SNVR0411 eliminates the need for a separate PC to view and play back video from the unit. Its USB ports allow you to connect a storage device to import or export system settings, update firmware, save snapshot files and back up video in AVI format.
  • 4-Channel video recording
  • Automatic search and set-up for IP cameras
  • Support for third‐party IP cameras through ONVIF and RTSP protocol
  • Up to 3840 x 2160 resolution for each channel
  • Dual streams support
  • Continuous, motion and scheduled recordings
  • Timeline playback
  • Multi-channel playback
  • Display of HDD status and system temperature
  • DST (Daylight Saving Time) support
  • NTP (Network Time Protocol) support
  • GeoVision DDNS server support
  • E-mail notification for recording error and password retrieval
  • Recording export
  • Remote live view through Web browser
  • Fisheye dewarping
  • Support for GV-Video Server through RTSP protocol
  • PTZ control using GV-Joystick or on-screen panel
  • 4-Port PoE (IEEE 802.3af) for camera connection
  • 4K HDMI video output
  • 1 SATA HDD drawer (3.5") for up to 8 TB storage
  • Smart device access (iOS and Android)
  • Support for 13 languages

Note:
  • The resolutions of stream 1 and 2 both must meet the requirements noted under Specifications.
  • Specifications are subject to change without notice.


Note:
  • The resolutions of stream 1 and 2 both must meet the requirements noted under Specifications.
  • Specifications are subject to change without notice.
Model No Name Details
GV-POE Switch The GV-POE Switch is designed to provide power along with network connection for IP devices. The GV-POE Switch is available in various models with different numbers and types of ports.
GV-Joystick V2 The GV-Joystick V2 facilitates the PTZ camera control. It can be plugged into the GV-SNVR for independent use to empower the operation of PTZ cameras.
  • GV-SNVR0411
  • AC Power Cord
  • AC/DC adapter (DC 52V, .1.38 A, 72 W)
  • Data cable
  • HDD power cable
  • Screw x 4 (for HDD)
  • Rubber foot x 4 (for HDD)
  • USB Mouse
  • Download Guide
  • Warranty Card​
