GV-SNVR0400F

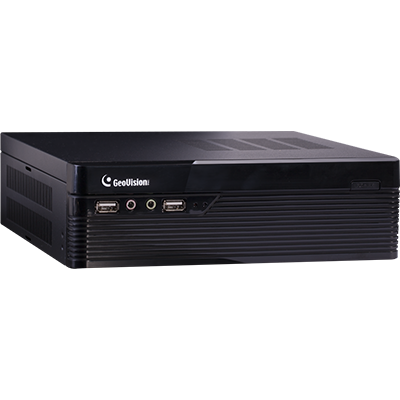

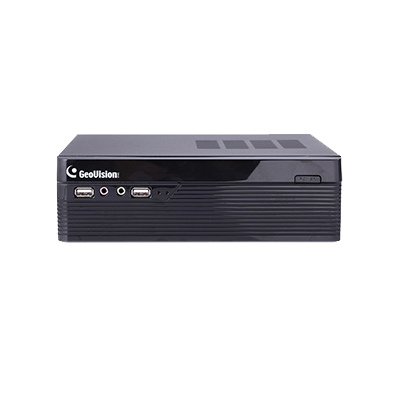

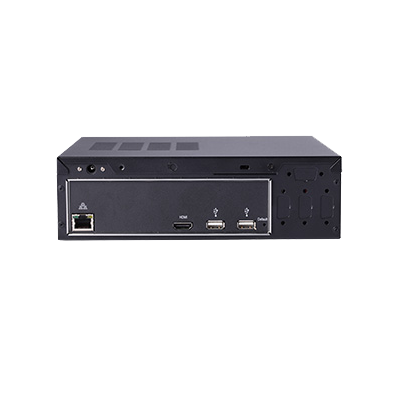

The GV-SNVR0400F is a Linux-embedded Standalone Network Video Recorder which records video files directly to the internal hard drive, supporting up to 4 channels of GV-IP Cameras for network surveillance. With the feature of a Full HD HDMI video output, the GV-SNVR eliminates the need for a separate PC to view and play back video from the unit. Its four USB ports allow you to connect a storage device to import or export system settings, update firmware, save snapshot files and back up video in AVI format.

Optionally, you can connect a GV-Joystick V2 to control PTZ cameras. Moreover, you can remotely access the live view through mobile devices or Web browsers with advanced video features.
  • 4-Channel video recording
  • Automatic Connection to GV-IP Cameras
  • Up to 1920 x 1080 resolution per channel
  • Dual streams support
  • Continuous, motion and scheduled recordings
  • Timeline playback
  • Multi-channel playback
  • Display of HDD status and system temperature
  • DST (Daylight Saving Time) support
  • NTP (Network Time Protocol) support
  • GeoVision DDNS server support
  • E-mail notification for recording error and password retrieval
  • Recording export
  • Remote live view through Web browser
  • PTZ control using GV-Joystick V2 or on-screen panel
  • 1080p HDMI video output
  • 1 SATA HDD drawer (3.5") for up to 4 TB storage
  • Smart device access (iOS and Android)
  • Support for 13 languages

Note:
  • The resolutions of stream 1 and 2 both must meet the requirements noted under Specifications.
  • Specifications are subject to change without notice.


Note:
  • The resolutions of stream 1 and 2 both must meet the requirements noted under Specifications.
  • Specifications are subject to change without notice.
Model No Name Details
GV-Joystick V2 The GV-Joystick V2 facilitates the PTZ camera control. It can be plugged into the GV-SNVR for independent use to empower the operation of PTZ cameras.
GV-POE Switch The GV-POE Switch is designed to provide power along with network connection for IP devices. The GV-POE Switch is available in various models with different numbers and types of ports.
You can choose to purchase a GV-SNVR single package or a bundled package which includes 4 GV-Target IP Camera of your choice and a GV-POE switch.

GV-SNVR0400F Package
  • GV-SNVR0400F
  • AC power cord
  • AC/DC adapter (DC 19V, 3.42 A, 65 W)
  • Screw x 6 (for HDD)
  • SATA cable
  • Download Guide
  • Quick Start Guide
  • Warranty Card

Bundled Package for GV-SNVR
  • GV-SNVR Package x 1
  • Target IP Camera x 4
  • GV-POE0400 x 1
