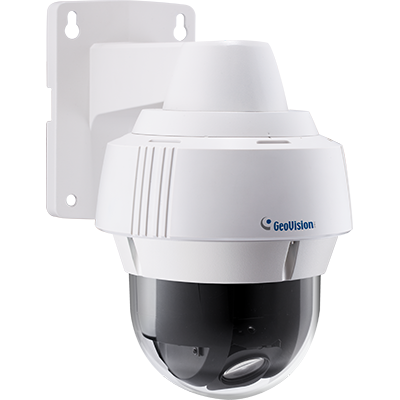

GV-SD2411 V2

2MP H.265 30x Low Lux WDR Pro Outdoor IP Speed Dome

The GV-IP Speed Dome (GV‐SD2411 V2) is a network PTZ camera designed for image quality and adaptability in various environments. This camera offers image of 1080p at 50 fps and 30x optical zoom, capable of showing smooth live view with great details. In low-light environments, image quality is promised with its image processing tools, such as removable IR-cut filter (ICR), Wide Dynamic Range Pro (WDR Pro) and noise reduction.

Wide surveillance coverage is made possible with 360° endless panning and -15 ~ 195° tilting capability. Dome movements such as Preset, Sequence, Auto Pan, Cruise and Tour can be programmed and activated by schedule. You can create multiple dome movement modes and have different modes enabled at different time slots. The GV-IP Speed Dome provides variable pan/tilt speeds ranging from a fast patrol of 460° per second to a slow ramble of 0.1° per second with 0.2° pan accuracy for fast and accurate tracking ability.

GeoVision offers a complete series of GV-IP Speed Dome for indoor and outdoor use, with optional mounting kits for installations on wall, ceiling and pole.

Models

ModelGV-SD2411 V2
IrisAuto / Manual
Focal Length (mm)4.3~129 mm
Horizontal FOV58.9°~2.11°
Maximum ApertureF/1.6
Image Format1/3"
  • 1/3" progressive scan low lux CMOS
  • Min. illumination at 0.1 lux
  • Dual streams from H.265, H.264, and MJPEG
  • 30 / 50 fps at 1920 x 1080 (60 / 50 Hz)
  • 30x optical zoom and 32x digital zoom
  • Wide Dynamic Range Pro (WDR Pro)
  • Day and night function with IR-cut filter
  • Vandal resistance (IK10 for metal and polycarbonate casing)
  • Ingress protection (IP67)
  • Built-in micro SD card slot (SD/SDHC/SDXC/UHS-I, Class 10) for local storage
  • 4 digital inputs, 1 relay output
  • DC 24V / AC 24V / High PoE (PoE++, 90 W)
  • Pan 360° endlessly
  • Tilt from -15° to 195°
  • Preset speed at up to 460° /sec
  • PTZ movement (Preset, Sequence, Auto Pan, Cruise and Tour)
  • PTZ movements by schedule
  • Auto and manual PTZ calibration
  • Auto focus
  • 3D noise reduction
  • Two-way audio
  • Motion detection
  • Privacy mask
  • Recording assigned by GV-Edge Recording Manager (Windows & Mac version)
  • Smart phones & 3GPP support
  • 31 languages on Web interface
  • ONVIF (Profile S) conformant

Note:
  • It is required to apply patch files to all the supported software.
  • Do not use clothes or any ordinary material to clean the camera cover since they may result in scratches.
  • Mind the following when using an inserted memory card for recording:
    • Recorded data on the memory card can be damaged or lost if the data are accessed while the camera is under physical shock, power interruption, memory card detachment or when the memory card reaches the end of its lifespan. No guarantee is provided for such causes.
    • The stored data can be lost if the memory card is not accessed for a long period of time. Back up your data periodically if you seldom access the memory card.
    • Memory cards are expendable and their durability varies according to the conditions of the installed site and how they are used. Back up your data regularly and replace the memory card annually.
    • To avoid power outage, it is highly recommended to apply a battery backup (UPS).
    • For better performance, it is highly recommended to use SD card of MLC NAND flash, Class 10.
    • Replace the memory card when its read/write speed is lower than 6 MB/s or when the memory card is frequently undetected by the camera.
  • Specifications are subject to change without notice.
  • Power adapters can be purchased upon request.


Note:
  • It is required to apply patch files to all the supported software.
  • Do not use clothes or any ordinary material to clean the camera cover since they may result in scratches.
  • Mind the following when using an inserted memory card for recording:
    • Recorded data on the memory card can be damaged or lost if the data are accessed while the camera is under physical shock, power interruption, memory card detachment or when the memory card reaches the end of its lifespan. No guarantee is provided for such causes.
    • The stored data can be lost if the memory card is not accessed for a long period of time. Back up your data periodically if you seldom access the memory card.
    • Memory cards are expendable and their durability varies according to the conditions of the installed site and how they are used. Back up your data regularly and replace the memory card annually.
    • To avoid power outage, it is highly recommended to apply a battery backup (UPS).
    • For better performance, it is highly recommended to use SD card of MLC NAND flash, Class 10.
    • Replace the memory card when its read/write speed is lower than 6 MB/s or when the memory card is frequently undetected by the camera.
  • Specifications are subject to change without notice.
  • Power adapters can be purchased upon request.
Model No Name Details
GV-Mount102 Straight Tube Box Mount Dimensions: 256 x 256 x 316 mm (10.1 x 10.1 x 12.4")
Weight: 6.6 kg (14.6 lb)
GV-Mount103 Straight Tube Mount Dimensions (L x W x D): 340 x 219 x 125 mm (13.4 x 8.6 x 4.9")
Weight: 2.2 kg (4.9 lb)
GV‐Mount103‐1 Straight Tube Mount Dimensions (L x W x D): 240 x 219 x 125 mm (9.4 x 8.6 x 4.9")
Weight: 1.76 kg (3.88 lb)
GV-Mount 208-1 Swan Neck Mount Dimension: 1043 x 565 x 256 mm (41.06 x 22.24 x 10.08")
Weight: 10.6 kg (23.37 lb)
GV-Mount300-1 Convex Corner Adapter Kit Dimensions: 238.6 x 395.2 x 210 mm (9.4 x 15.5 x 8.2")
Weight: 4.27 kg (9.41 lb)
GV-Mount310-1 Concave Corner Adapter Kit Dimensions: 111.2 x 369.9 x 210 mm  (4.37 x 14.5 x 8.2")
Weight: 2.96 kg (6.53 lb)
GV-Mount400-1 Pole Mount Bracket Kit (Ø 4 ~ 6") Bracket: 68.4 x 240 x 163 mm (2.69 x 9.44 x 6.41")
Weight: 1.70 kg (3.75 lb)
Steel Strap Diameter: Ø 4 ~ 6"
GV-Mount410-1 Pole Mount Bracket Kit (Ø 6 ~ 7.5") Bracket: 68.4 x 240 x 163 mm (2.69 x 9.44 x 6.41")
Weight: 1.70 kg (3.75 lb)
Steel Strap Diameter: Ø 6 ~ 7.5"
GV-Mount501 Convex Corner Box Mount Dimensions: 136 x 256 x 256 mm (5.4 x 10.1 x10.1")
Weight: 4.8 kg (10.6 lb)
GV-Mount702 Extension Tube Four options are available.
Dimensions: Ø 5.4 x 10 or 20 or 30 or 50 cm
(Ø 2.1 x 3.9 or 7.9 or 11.8 or 19.7")
Weight: 180 g or 390 g or 550 g or 800 g
(0.4 lb or 0.86 lb or 1.21lb or 1.76 lb)
GV-Mount908-2 In-Ceiling Mounting Kit Dimensions: 205 x 128 x 227 mm (8.1 x 5 x 8.9")
Weight: 3 Kg (6.6 lb)
GV-PA901 PoE Adapter The GV-PA901 PoE adapter is designed to provide power and network connection to IP cameras over a single Ethernet cable.
Dimensions (L x W x H): 69 x 40 x 93 mm / 2.7 x 1.57 x 3.66"
Weight: 250 kg / 0.55 lb
Power Adapter Contact our sales representatives for the countries and areas supported.
  • Outdoor IP Speed Dome
  • Pendant Tube (GV-Mount 207)
  • Hex Key x 2
  • Rubber Ring
  • RJ-45 Connector
  • Desiccant Pack x 2
  • Data Cable
  • Download Guide
  • Warranty Card

Note:
  • It is required to apply patch files to all the supported software.
  • Do not use clothes or any ordinary material to clean the camera cover since they may result in scratches.
  • Mind the following when using an inserted memory card for recording:
    • Recorded data on the memory card can be damaged or lost if the data are accessed while the camera is under physical shock, power interruption, memory card detachment or when the memory card reaches the end of its lifespan. No guarantee is provided for such causes.
    • The stored data can be lost if the memory card is not accessed for a long period of time. Back up your data periodically if you seldom access the memory card.
    • Memory cards are expendable and their durability varies according to the conditions of the installed site and how they are used. Back up your data regularly and replace the memory card annually.
    • To avoid power outage, it is highly recommended to apply a battery backup (UPS).
    • For better performance, it is highly recommended to use SD card of MLC NAND flash, Class 10.
    • Replace the memory card when its read/write speed is lower than 6 MB/s or when the memory card is frequently undetected by the camera.
  • Specifications are subject to change without notice.
  • Power adapters can be purchased upon request.
