GV-Pad

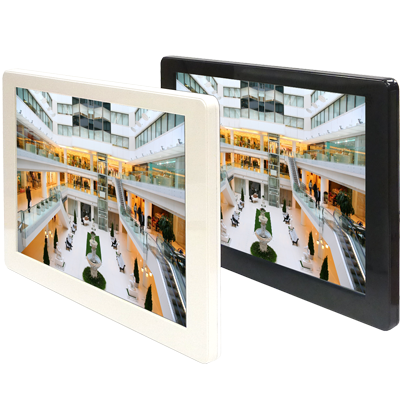

The GV-Pad is a panel device that decodes and displays incoming IP streams from GeoVision and third-party IP devices. It is light-weighted and requires only minimal amount of installation. As a standalone device, the GV-Pad is self equipped with a display screen and supports almost all the features of a GV-IP Decoder Box. Through the network, a GV-Pad can receive and manage up to 64 IP streams. The administrators can monitor channels, take snapshots of critical moments and pause at a specific channel when events occur, all through the supplied remote control. GV-Joystick can be installed to control GeoVision and third-party PT / PTZ / Speed Dome cameras.
  • Decode video streams in H.264 codec at a maximum frame rate of the IP device
  • Decode up to 5 megapixel IP cameras
  • Decode up to 64 IP streams
  • Automatically search for ONVIF IP devices
  • Support for 3rd party IP cameras that adhere to RTSP, ONVIF or PSIA
  • Single View and Quad View in sequential display
  • Support for 10/100 Ethernet over LAN
  • Support for Wi-Fi
  • Support for GV-Joystick control of GeoVision and third-party PT, PTZ and Speed Dome cameras
  • Support for remote firmware upgrade, IP address configuration and addition of new channel
  • Display of Matrix view through GV-Mobile Server

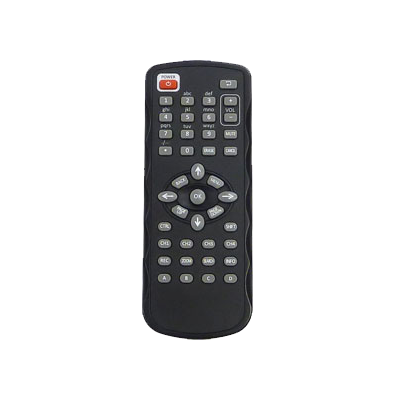

  • IR remote control
  • SD/SDHC card and USB drive for snapshot storage and firmware upgrade

Note:
  • No SD/SDHC card slot & local storage function for Argentina.
  • Specifications are subject to change without notice.


Note:
  • No SD/SDHC card slot & local storage function for Argentina.
  • Specifications are subject to change without notice.
Model No Name Details
GV-Joystick V2 The GV-Joystick facilitates focusing, zooming, panning, tilting of GeoVision and third-party PT, PTZ and Speed Dome cameras on GV-IP Decoder Box.
WiFi USB Adapter The GV-WiFi USB adapter is a plug-and-play device that provides wireless connectivity to GeoVision IP devices. The GV-WiFi USB Adapter complies with IEEE802.11 b/g/n (Draft 3.0) standards for wireless networking.
  • GV-Pad
  • IR remote control
  • Magnetic hinge
  • Screw x 4
  • AC/DC adapter (12 V, 3 A, 36 W)
  • Power cord
  • GV-IP Decoder Box and GV-Pad Software DVD
  • SD card

Note:
  • No SD/SDHC card slot & local storage function for Argentina.
  • Specifications are subject to change without notice.

Note:
  • No SD/SDHC card slot & local storage function for Argentina.
  • Specifications are subject to change without notice.
