GV-PPTZ14021

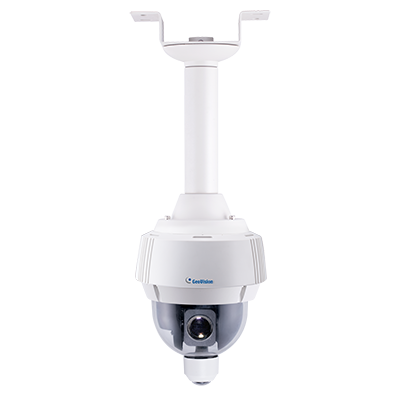

GV-PPTZ14021 is a 2-in-1 panoramic PTZ IP camera that includes a 12 MP fisheye panoramic camera and a 2 MP IP Speed Dome. The fisheye camera allows you to monitor all angles of a location, while the speed dome can instantly point toward an area with just one click on the fisheye live view. Without installing any software, you can watch live view and utilize functions such as motion detection, privacy mask, and alert notification through the Web interface.

Models

ModelGV-PPTZ14021
IrisFE: Fixed
SD: Auto / Manual
Focal Length (mm)FE: 1.505mm
SD: 4.7~94mm
Horizontal FOVFE: 180°
SD: 55.4°~2.9°
Maximum ApertureFE: F/2.0
SD: F/1.6
Image FormatFE: 1/1.7"
SD: 1/3"
  • Panoramic fisheye camera (FE) integrated with a PTZ speed dome (SD)
  • FE: 1/1.7" progressive scan low lux CMOS
    SD: 1/3" progressive scan low lux CMOS
  • Dual streams from H.265 (SD Only), H.264 and MJPEG
  • FE: Up to 15 fps at 4000 x 3000
    SD: Up to 30 fps at 1920 x 1080 (60 Hz), 50 fps at 1920 x 1080 (50 Hz)
  • FE: Day and night (Electronic)
    SD:Day and night function with IR-cut filter
  • SD: Wide Dynamic Range Pro (WDR Pro)
  • Vandal resistance (IK10 for metal casing)
  • Ingress protection (IP67)
  • Wide temperature tolerance (-40°C ~ 50°C / -40°F ~ 122°F)
  • FE: 1 built-in Micro SD card slot (SD/SDHC/SDXC/UHS-I, Class 10) for local storage
    SD: 1 built-in SD card slot (SD/SDHC/SDXC/UHS-I, Class 10) for local storage
  • 4 sensor inputs and 1 alarm output
  • DC 24V / AC 24V / High PoE (PoE++, 53 W)
  • FE: Provides 360° panoramic view
  • SD: 20x optical zoom and 32x digital zoom
  • SD: pan 360° and tilt from -15° to 195°
  • SD: Preset speed at up to 460°/sec
  • SD: PTZ movement (Preset, Sequence, Auto Pan, Cruise and Tour)
  • Two-way audio
  • 2D noise reduction
  • Tampering alarm
  • Privacy mask
  • Visual automation
  • Text overlay
  • 31 languages on Web interface
  • ONVIF (Profile S) conformant

Note:
  1. Do not use clothes or any ordinary material to clean the camera cover since they may result in scratches.
  2. Mind the following when using an inserted memory card for recording:
    • Recorded data on the memory card can be damaged or lost if the data are accessed while the camera is under physical shock, power interruption, memory card detachment or when the memory card reaches the end of its lifespan. No guarantee is provided for such causes.
    • The stored data can be lost if the memory card is not accessed for a long period of time. Back up your data periodically if you seldom access the memory card.
    • Memory cards are expendable and their durability varies according to the conditions of the installed site and how they are used. Back up your data regularly and replace the memory card annually.
    • To avoid power outage, it is highly recommended to apply a battery backup (UPS).
    • For better performance, it is highly recommedned to use Micro SD card of MLC NAND flash, Class 10
    • Replace the memory card when its read/write speed is lower than 6 MB/s or when the memory card is frequently undetected by the camera.
  3. Specifications are subject to change without notice.
  4. Power adapters can be purchased upon request.


Note:
  1. Do not use clothes or any ordinary material to clean the camera cover since they may result in scratches.
  2. Mind the following when using an inserted memory card for recording:
    • Recorded data on the memory card can be damaged or lost if the data are accessed while the camera is under physical shock, power interruption, memory card detachment or when the memory card reaches the end of its lifespan. No guarantee is provided for such causes.
    • The stored data can be lost if the memory card is not accessed for a long period of time. Back up your data periodically if you seldom access the memory card.
    • Memory cards are expendable and their durability varies according to the conditions of the installed site and how they are used. Back up your data regularly and replace the memory card annually.
    • To avoid power outage, it is highly recommended to apply a battery backup (UPS).
    • For better performance, it is highly recommedned to use Micro SD card of MLC NAND flash, Class 10
    • Replace the memory card when its read/write speed is lower than 6 MB/s or when the memory card is frequently undetected by the camera.
  3. Specifications are subject to change without notice.
  4. Power adapters can be purchased upon request.
Model No Name Details
GV-Mount102 Straight Tube Box Mount Dimensions: 256 x 256 x 316 mm (10.1 x 10.1 x 12.4")
Weight: 6.6 kg (14.6 lb)
GV-Mount103 Straight Tube Mount Dimensions: 219 x 125 x 340 mm (8.6 x 4.9 x 13.4")
Weight: 2.2 kg (4.9 lb)
GV-Mount 208-1 Swan Neck Mount Dimension: 1043 x 565 x 256 mm (41.06 x 22.24 x 10.08")
Weight: 10.6 kg (23.37 lb)
GV-Mount300-1 Convex Corner Adapter Kit Dimensions: 238.6 x 395.2 x 210 mm (9.4 x 15.5 x 8.2")
Weight: 4.27 kg (9.41 lb)
GV-Mount310-1 Concave Corner Adapter Kit Dimensions: 111.2 x 369.9 x 210 mm  (4.37 x 14.5 x 8.2")
Weight: 2.96 kg (6.53 lb)
GV-Mount400-1 Pole Mount Bracket Kit (Ø 4 ~ 6") Bracket: 68.4 x 240 x 163 mm (2.69 x 9.44 x 6.41")
Weight: 1.70 kg (3.75 lb)
Steel Strap Diameter: Ø 4 ~ 6"
GV-Mount410-1 Pole Mount Bracket Kit (Ø 6 ~ 7.5") Bracket: 68.4 x 240 x 163 mm (2.69 x 9.44 x 6.41")
Weight: 1.70 kg (3.75 lb)
Steel Strap Diameter: Ø 6 ~ 7.5"
GV-Mount501 Convex Corner Box Mount Dimensions: 136 x 256 x 256 mm (5.4 x 10.1 x10.1")
Weight: 4.8 kg (10.6 lb)
GV-Mount702 Extension Tube Four options are available.
Dimensions: Ø 5.4 x 10 or 20 or 30 or 50 cm
(Ø 2.1 x 3.9 or 7.9 or 11.8 or 19.7")
Weight: 180 g or 390 g or 550 g or 800 g
(0.4 lb or 0.86 lb or 1.21lb or 1.76 lb)
GV-Mount908-3 In-Ceiling Mounting Kit Mounting plate: 280 x 128 x 238 mm (11 x 5 x 9.3”)
Weight: 2.3 kg (5 lb)
GV-PA901 PoE Adapter The GV-PA901 PoE adapter is designed to provide power and network connection to IP cameras over a single Ethernet cable.
Dimensions (L x W x H): 69 x 40 x 93 mm / 2.7 x 1.57 x 3.66"
Weight: 250 kg / 0.55 lb
Power Adapter Contact our sales representatives for the countries and areas supported.
  • Panoramic PTZ Camera
  • Data Cable
  • Pendant Tube (GV-Mount207)
  • 3 mm Hex Key
  • 4 mm Hex Key
  • 5 mm Hex Key
  • Torx Wrench
  • Rubber Ring
  • RJ-45 Connector
  • Desiccant Pack x 2
  • Download Guide
  • Warranty Card

Note:
  1. Do not use clothes or any ordinary material to clean the camera cover since they may result in scratches.
  2. Mind the following when using an inserted memory card for recording:
    • Recorded data on the memory card can be damaged or lost if the data are accessed while the camera is under physical shock, power interruption, memory card detachment or when the memory card reaches the end of its lifespan. No guarantee is provided for such causes.
    • The stored data can be lost if the memory card is not accessed for a long period of time. Back up your data periodically if you seldom access the memory card.
    • Memory cards are expendable and their durability varies according to the conditions of the installed site and how they are used. Back up your data regularly and replace the memory card annually.
    • To avoid power outage, it is highly recommended to apply a battery backup (UPS).
    • For better performance, it is highly recommedned to use Micro SD card of MLC NAND flash, Class 10
    • Replace the memory card when its read/write speed is lower than 6 MB/s or when the memory card is frequently undetected by the camera.
  3. Specifications are subject to change without notice.
  4. Power adapters can be purchased upon request.

Note:
  1. Do not use clothes or any ordinary material to clean the camera cover since they may result in scratches.
  2. Mind the following when using an inserted memory card for recording:
    • Recorded data on the memory card can be damaged or lost if the data are accessed while the camera is under physical shock, power interruption, memory card detachment or when the memory card reaches the end of its lifespan. No guarantee is provided for such causes.
    • The stored data can be lost if the memory card is not accessed for a long period of time. Back up your data periodically if you seldom access the memory card.
    • Memory cards are expendable and their durability varies according to the conditions of the installed site and how they are used. Back up your data regularly and replace the memory card annually.
    • To avoid power outage, it is highly recommended to apply a battery backup (UPS).
    • For better performance, it is highly recommedned to use Micro SD card of MLC NAND flash, Class 10
    • Replace the memory card when its read/write speed is lower than 6 MB/s or when the memory card is frequently undetected by the camera.
  3. Specifications are subject to change without notice.
  4. Power adapters can be purchased upon request.
  • Panoramic PTZ Camera
  • Data Cable
  • Pendant Tube (GV-Mount207)
  • 3 mm Hex Key
  • 4 mm Hex Key
  • 5 mm Hex Key
  • Torx Wrench
  • Rubber Ring
  • RJ-45 Connector
  • Desiccant Pack x 2
  • Download Guide
  • Warranty Card

Note:
  1. Do not use clothes or any ordinary material to clean the camera cover since they may result in scratches.
  2. Mind the following when using an inserted memory card for recording:
    • Recorded data on the memory card can be damaged or lost if the data are accessed while the camera is under physical shock, power interruption, memory card detachment or when the memory card reaches the end of its lifespan. No guarantee is provided for such causes.
    • The stored data can be lost if the memory card is not accessed for a long period of time. Back up your data periodically if you seldom access the memory card.
    • Memory cards are expendable and their durability varies according to the conditions of the installed site and how they are used. Back up your data regularly and replace the memory card annually.
    • To avoid power outage, it is highly recommended to apply a battery backup (UPS).
    • For better performance, it is highly recommedned to use Micro SD card of MLC NAND flash, Class 10
    • Replace the memory card when its read/write speed is lower than 6 MB/s or when the memory card is frequently undetected by the camera.
  3. Specifications are subject to change without notice.
  4. Power adapters can be purchased upon request.
